ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0447 / W0448

T

Turn on the power at fuse or circuit box.

W

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

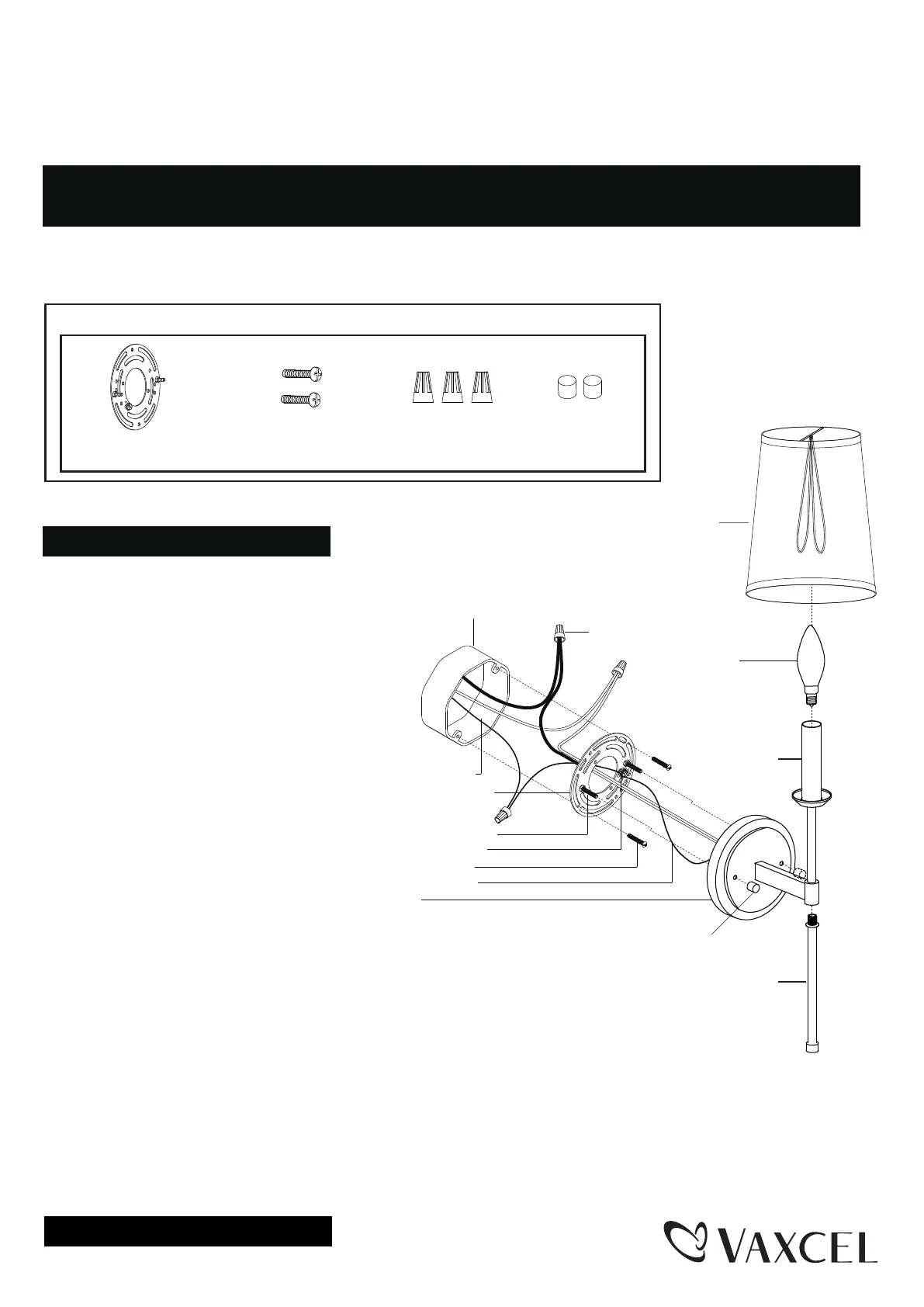

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Mounting Plate Unit (A)

Turn off the power at fuse or circuit box

Installation Steps

1. Unscrew the two bolt nuts (D), remove

the mounting plate unit (A) from the backplate.

2. Attach mounting plate unit (A) to the

outlet box using two mounting screws (B).

Adjust the length of the preinstalled fixture

mounting screws if necessary.

Note: Make sure that the fixture

mountingscrews are lined up

horizontally to make the fixture level.

3. Pull out the wires and ground wire from

the outlet box. Make wire connections

using the wire connectors (C) as follows:

---Connect the hot wire (black insulation)

from the fixture to the black wire from

the power source.

---Connect the neutral wire

(white insulation) from the fixture to the

white wire from the power source.

---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green

ground screw, then connect it to the house ground wire with the wire connector (C).

Carefully put the wires back into the outlet box.

4. Attach the backplate to the mounting plate unit (A) by aligning and inserting the two fixture

mounting screws from the mounting plate unit (A) into the open holes on the backplate,

then screw it with the two bolt nuts (D).

5. Secure the tube to the fixture.

6. Install 1 x 60W Max. candelabra base bulb (not included). See relamping label at socket area or packaging for

maximum wattage allowed.

7. Rotate the shade onto the fixture.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

Backplate

Bolt Nut (D)

Tube

Fixture Ground Wire

Outlet Box

Wire Connector (C)

House Ground Wire

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Mounting Screw

Max. 60W

Candelabra Bulb

(not included)

Shade

Fixture

230616
