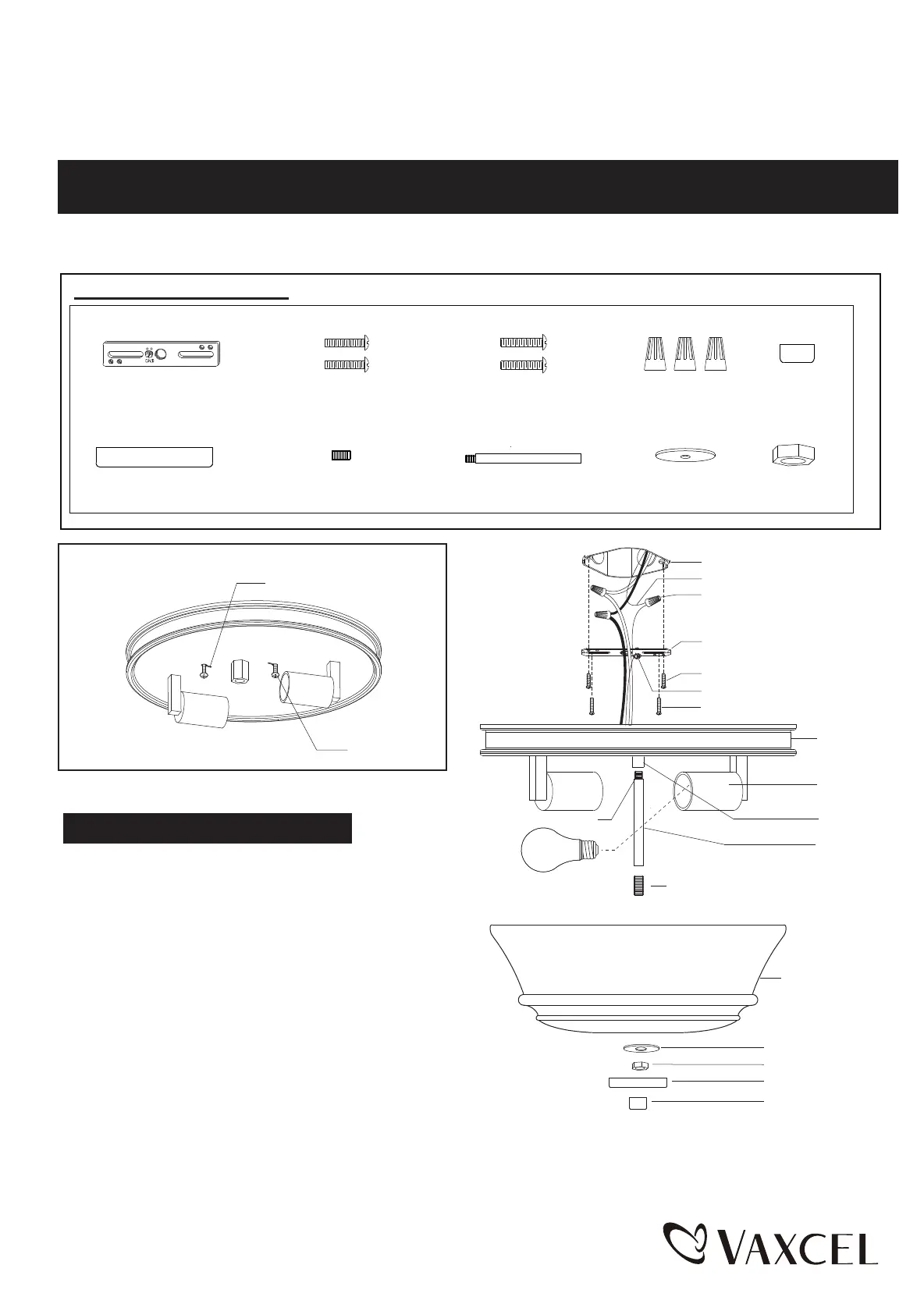

Fig.1

Screw

Key Hole Slot

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0232

Outlet Box

House Ground Wire

Wire Connector (D)

Fixture Mounting Screw (C)

Ceiling Pan

Socket

Coupling

Tube (H)

Glass Shade

Metal Pad (I)

Threaded Pipe-1

(G)

Hex Nut (J)

Cover (F)

Finial (E)

Mounting Strap (A)

Green Ground Screw

Mounting Screw (B)

Hardware Package (included):

190724

Threaded Pipe-1 (G)

Tube (H)

Mounting Screw (B)Wire Connector (D)Mounting Strap (A) Fixture Mounting Screw (C)

Metal Pad (I)Hex Nut (J)

Cover (F)

Finial (E)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Installation Steps

Type A Max.60 W

or ST Vintage Bulb

(not included)

Threaded Pipe

1. Attach the two fixture mounting screws (C)

to the holes on the mounting strap (A) and

screw them in 2 to 3 turns.

2. Attach the mounting strap (A) to the outlet box

using two mounting screws (B).
