ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0148
1. Thread two fixture mounting screws through the mounting plate, then secure them with two lock nuts. Adjust the length
of the fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally, to ensure that the fixture will be level.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting plate with the green grounding
screw. Then connect it to the house grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting plate by inserting two fixture mounting screws, then secure it with two ball nuts.
141211

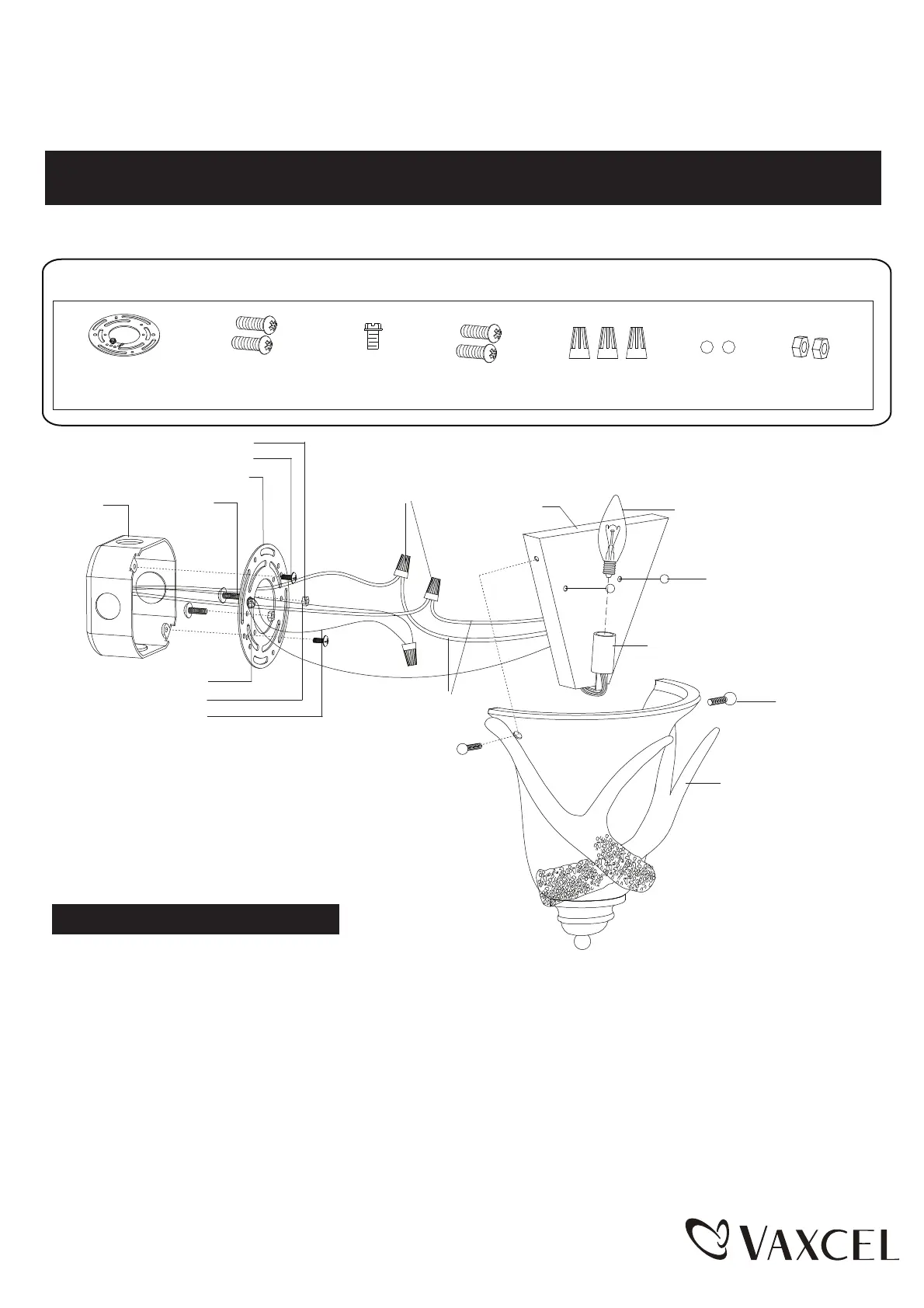

Mounting Screw (B)
Wire Nut (E)
Mounting Plate (A)
Ball Nut (F)Lock Nut (G)
Fixture Mounting
Screw(D)
Bulb Type B Max.60W
(not included)
Glass Shade Assembly
Ball Nut (F)
Bolt Nut Kit
Socket
Mounting Screw (B)
Mounting Plate (A)
Green Grounding Screw (C)
Wire Nut (E)
House Grounding Wire
Fixture Grounding Wire
Fixture Mounting
Screw(D)
Lock Nut(G)
Outlet Box
Fixture Wire
Back Plate
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Green Grounding
Screw (C)
Turn off the power at fuse or circuit box.
Installation Steps
Product specificaties
| Merk: | Vaxcel |
| Categorie: | Verlichting |
| Model: | W0148 |
