ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0404

Mounting Plate Unit (A)Wire Connector (C)Mounting Screw (B)

Bolt Nut (D)

Turn off the power at fuse or circuit box

Installation Steps

1.

Unscrew the two bolt nuts (D), remove the mounting plate

unit (A) from the backplate.

2.

Attach the mounting plate unit (A) to the outlet box by

using two mounting screws (B).

Note: Make sure that two set holes are lined up

horizontally to make the fixture level.

3. Pull out the source wires from the outlet box. Make wire connections

using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black

wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white

wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting plate unit (A)

with the green ground screw, then connect it to the house ground wire

with the wire connector (C).

Carefully put all of the wires back into the outlet box.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

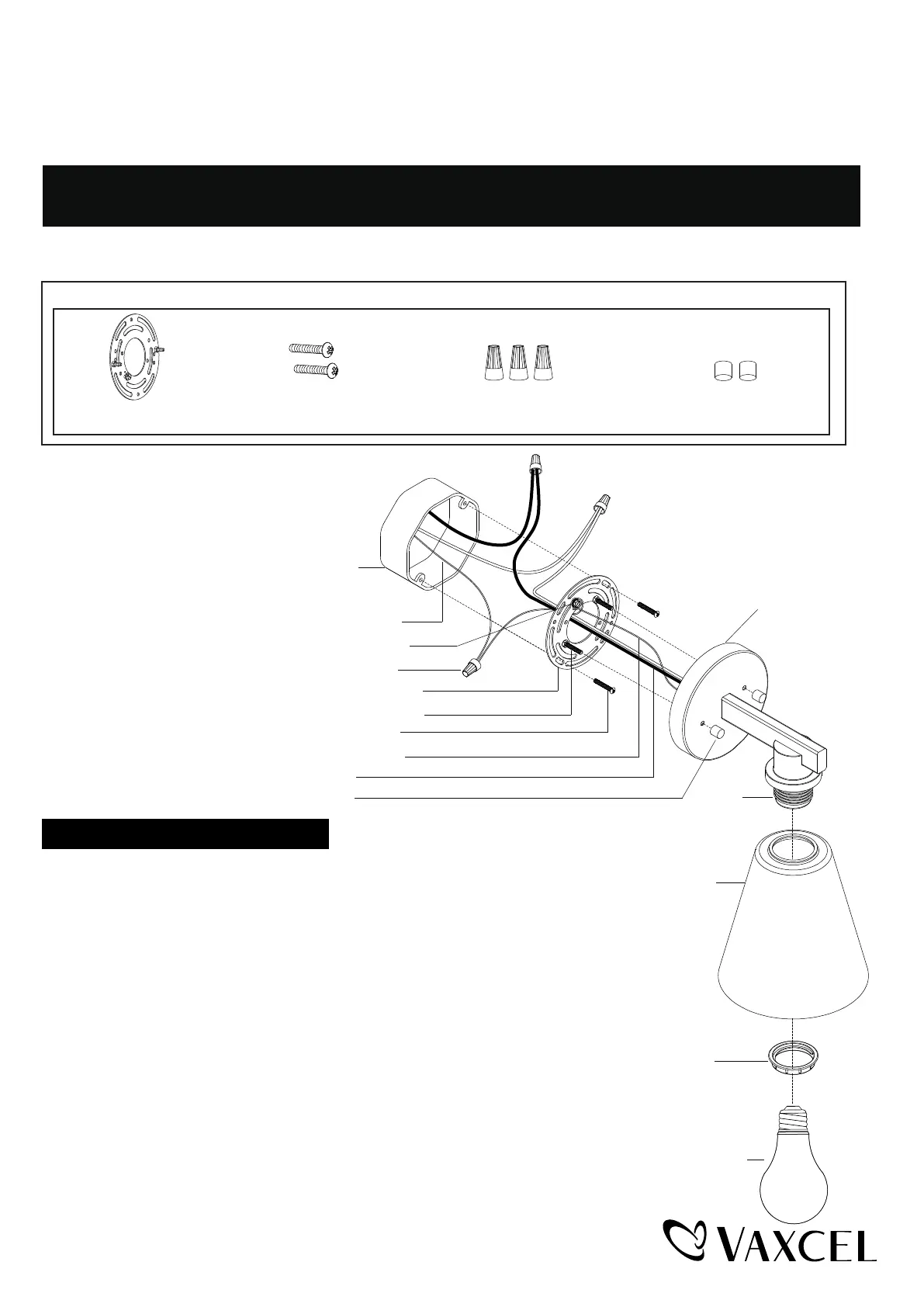

Fixture Ground Wire

Wire Connector (C)

Mounting Plate Unit (A)

Fixture Mounting Screw

House Ground Wire

Green Ground Screw

Fixture Wire

Bolt Nut (D)

Mounting Screw (B)

Socket

Max.60W Type A Bulb

(not included)

Glass Shade

Socket Ring

Outlet Box

Backplate

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

Hardware Package (included):
