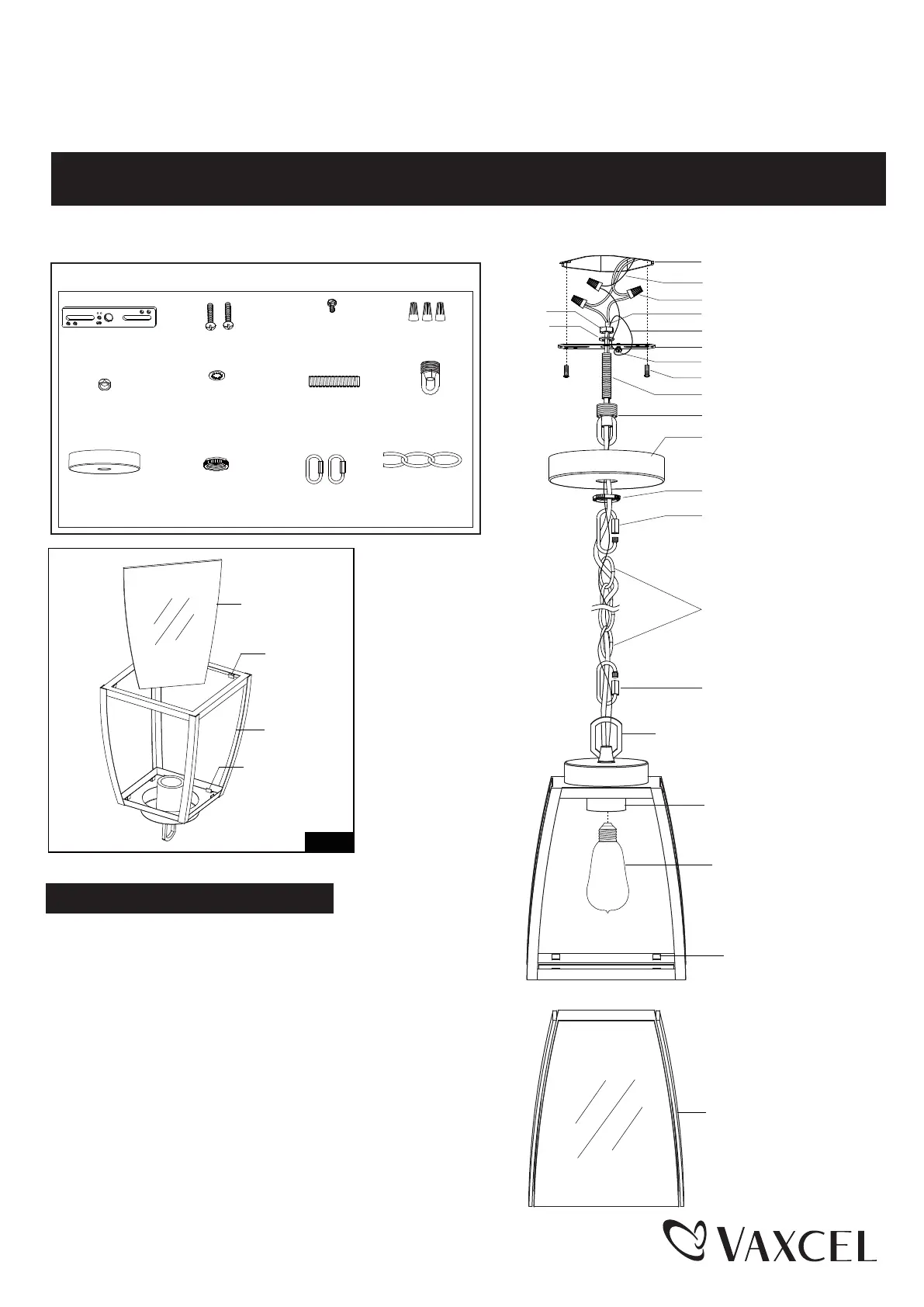

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0211
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
151025
Hardware Package (included):
Outlet Box
House Grounding Wire
Wire Nut(D)
Fixture Wire
Fixture Grounding Wire
Mounting Strap(A)
Green Grounding Screw(C)
Mounting Screw(B)
Threaded Pipe(G)
Canopy(I)
Top Loop(H)
Hex Nut(E)
Washer(F)
Collar(J)
Loop Lock(K)
Loop Lock(K)
Chain(L)
Loop
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Wire Nut (D)
Canopy (I)
Loop Lock (K)
Chain (L)
Hex Nut (E)
Washer (F)
Threaded Pipe(G)
Top Loop (H)
Collar (J)
Turn off the power at fuse or circuit box
Installation Steps
1. Attach threaded pipe to the mounting strap, and then secure
it with a washer and a hex nut.
2. Attach mounting strap to the outlet box using two mounting
screws.
3. Take a glass panel, tilt and insert it into the slots at one side
of the metal frame carefully, secure it by pressing the clips.
Repeat with the other glass panels.(See Fig.1)
4. Secure the top loop to the threaded pipe.
5. Connect the chain:
- Determine needed length of chain to achieve desired fixture
height. (To remove excess chain section, use pliers to bend
link open.)
- Weave the fixture wires through the chain, collar and canopy.
Clip
Glass Panel
Metal Frame
Clip
Glass Panel
Fig.1
Slot
Socket
Vintage Bulb Max.60W
(not included)
