1.Unscrew two bolt nuts (D) and remove mounting strap unit (A)
from the canopy.
2.Attach the mounting strap (A) to outlet box by using two mounting
screws (B).
3.Rod Connections:
a.Thread the fixture wires through the lower
rod, then secure the lower rod onto fixture
using the threaded pipe.
b.Thread the fixture wires through the middle rod
and then secure the middle rod onto the lower rod
using the threaded pipe.
c.Thread the fixture wires through the upper rod, then
secure the upper rod onto the middle rod using the
threaded pipe.
Note: Length adjustable from 14-3/4" to
66". Use fewer rods if shorter length is
desired.
4.Thread the fixture wire through the canopy kit,
then secure the rod assembly to set threaded
pipe of the canopy kit.
5.Pull out the source wires from the outlet box.
Make wire connections using wire
connectors
(D)
as follows:
--- Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
--- Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
--- Attach the fixture ground wire to the mounting strap unit
(A)
with the green ground screw, then connect
it to the house ground wire with a wire connector
(C).
Carefully put the wires back into the outlet box.
6.Attach the canopy kit to the mounting strap
(A)
by inserting the fixture mounting screws, then secure it with
two bolt nuts
(D)
.
7.
Carefully adjust the 5 long rods as shown, turning the long rods slightly (at an angle of about 15 to 30 degrees)
to the right.

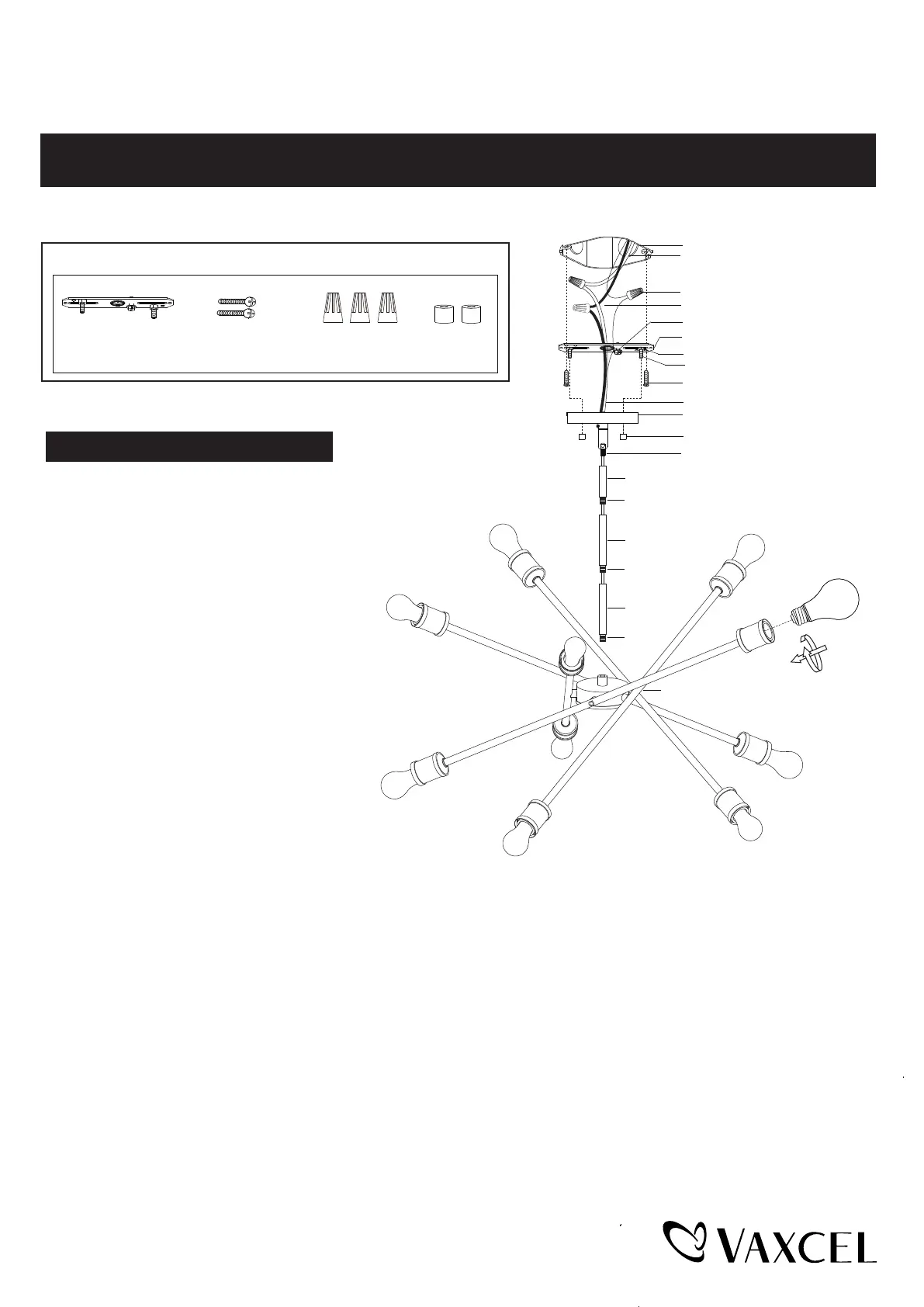

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.Read and save this instruction.
H0301
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Set Threaded Pipe
Bolt Nut (D)
Fixture
Upper Rod
Threaded Pipe
Middle Rod
Threaded Pipe
Lower Rod
Threaded Pipe
Page 1 / 2
Bolt Nut (D)
Mounting Screw (B)
Mounting Strap Unit (A)
Wire Connector (C)
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Max. 60W
Medium Base
Bulb (not included)
