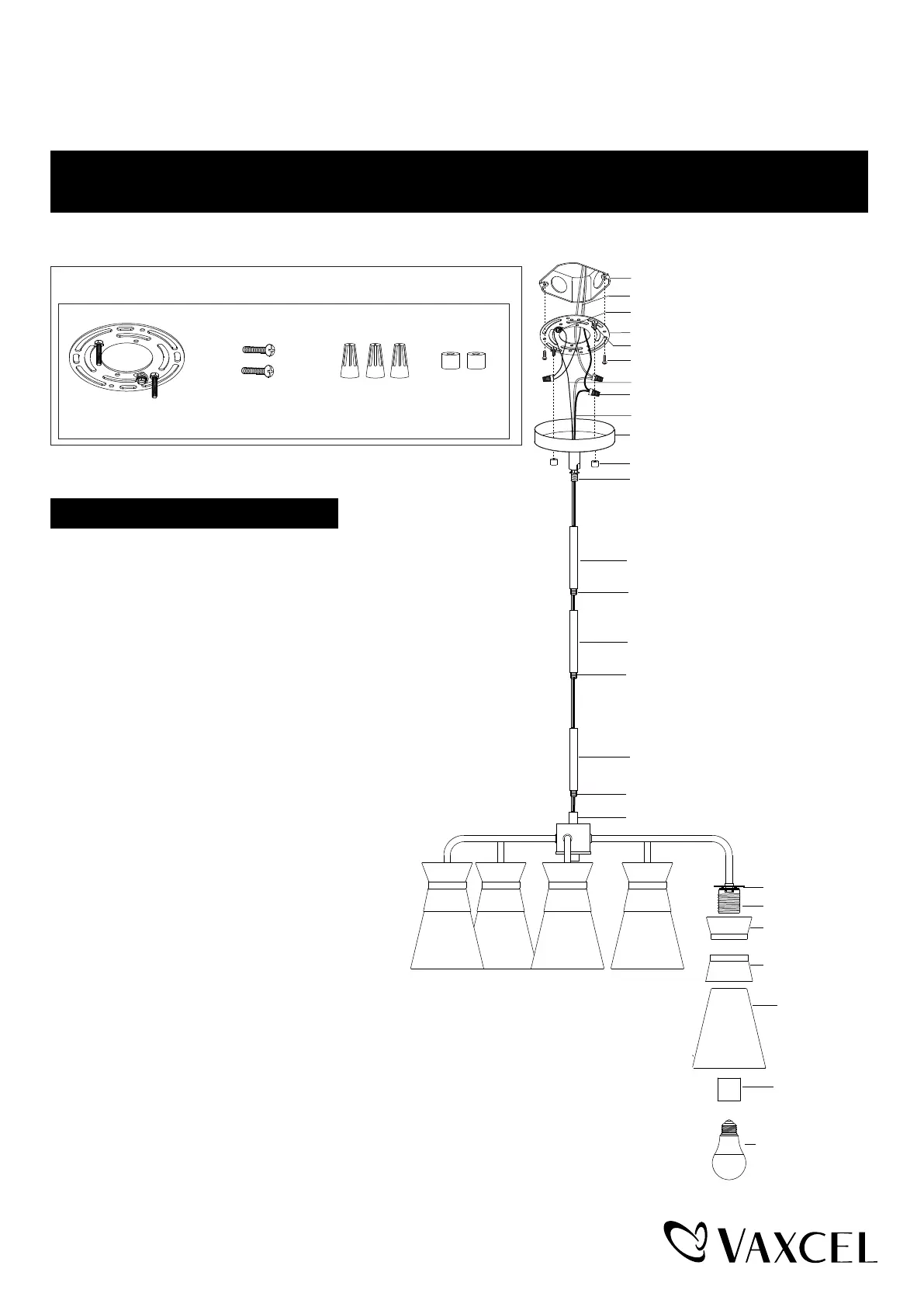

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0294
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the two bolt nuts (D), take out the mounting plate unit (A)
from the canopy kit, then attach the mounting plate unit (A) to the
outlet box by using two mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure the
lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 20" to 50". Use fewer rods if
shorter length is desired.
3. Thread the fixture wire through the canopy kit, then secure
the rod assembly to the set threaded pipe of the
canopy kit.
4. Pull out the wires and ground wire from the outlet
box. Make wire connections using the wire
connectors (C) as follows:
---Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from
the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with
the green ground screw, then connect it to the house ground wire with the
wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting plate unit (A) by inserting the fixture mounting
screws, then secure it with two bolt nuts (D).
6. Put the top glass shade, metal ring and bottom glass shade together as shown in
the picture, then carefully attach it onto the glass holder, and secure it with the
socket ring.
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting Plate Unit (A)
Bolt Nut (D)
Page 1 / 2
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Outlet Box
Canopy Kit
Set Threaded Pipe
Upper Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture
Lower Rod
Max. 60W Medium
Base bulb (not included)
Socket Ring
Top Glass Shade
Metal Ring
Socket
Bottom Glass Shade
Glass Holder
240430
