ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save

these instructions.

C0289

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Turn on the power at fuse or circuit box

Installation Steps

1. Attach the mounting strap unit (A) to the

outlet box by using two mounting screws (B).

2. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

---Connect the hot wire (black insulation) from the

power source to the black wire from the fixture.

---Connect the neutral wire (white insulation) from the power source to the white wire from the fixture.

---Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with the green ground screw,

or connect to the source ground wire if available.

Carefully put the wires back into the outlet box.

3. Install 3 x 60W Max. candelabra base bulbs (not included). See relamping label at socket area or packaging for

maximum wattage allowed.

4. Attach the fixture onto the mounting strap unit (A) and tighten it with two bolt nuts (D).

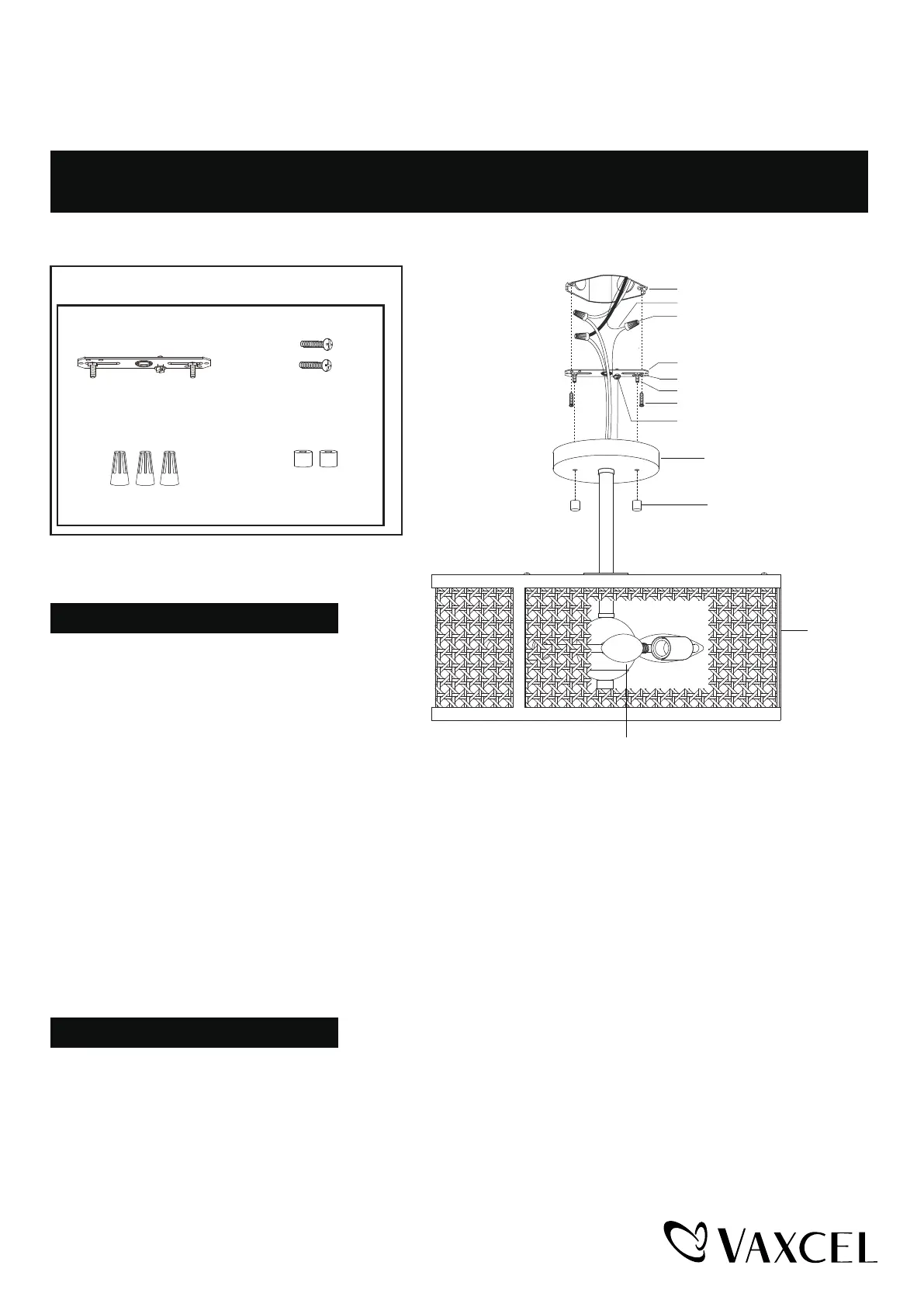

Wire Connector (C)

Mounting Screw (B)

Mounting Strap Unit (A)

Bolt Nut (D)

Fixture

Canopy

Bolt Nut (D)

Max.60W Candelabra Base Bulb

(not included)

Outlet Box

House Ground Wire

Wire Connector (C)

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)
