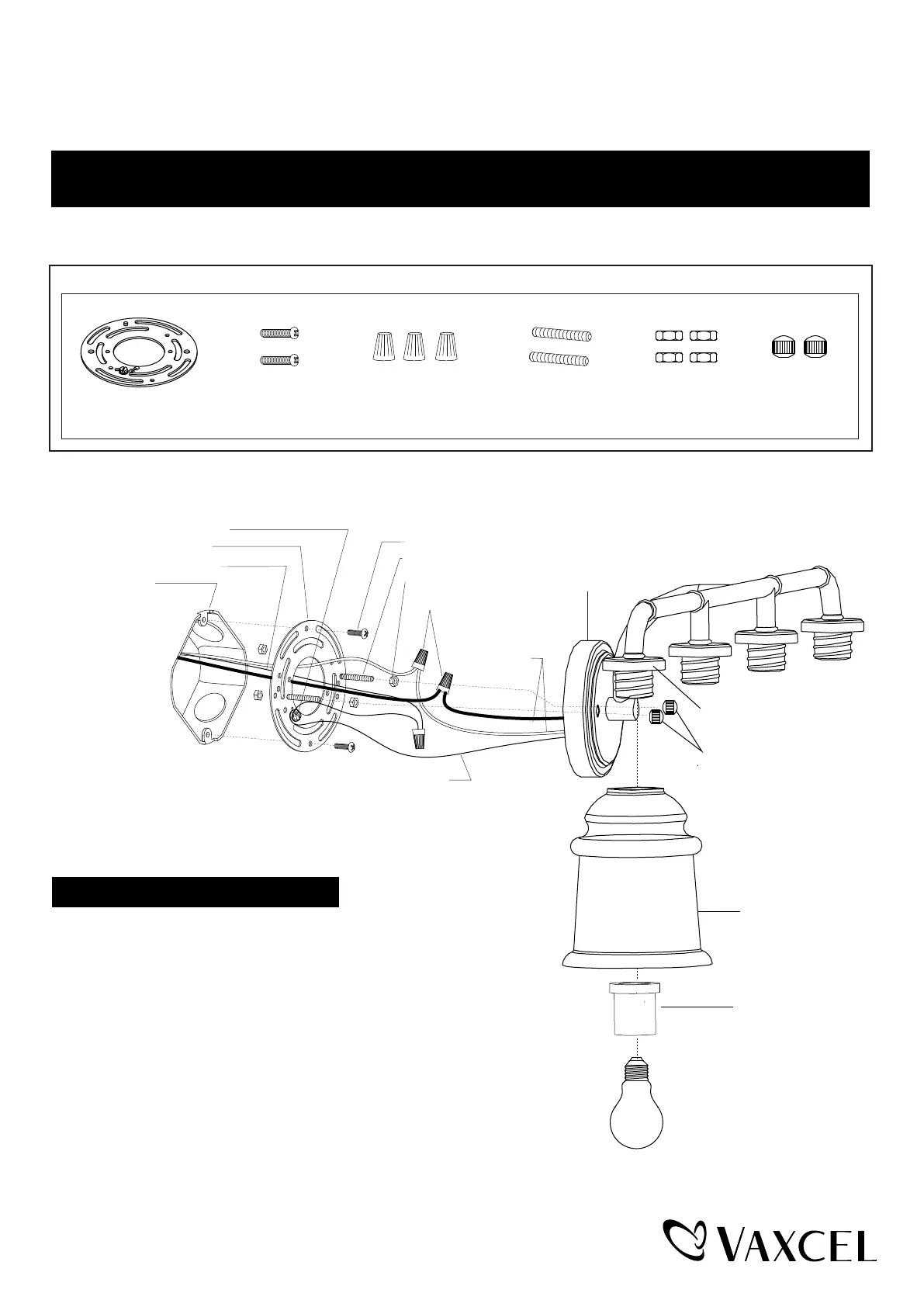

House Ground Wire

Green Ground Screw

Fixture Ground Wire

Wire Connector (C)

Back Plate

Ball Nut (F)

Glass Holder

Glass Shade

Socket Ring

Mounting Screw (B)

Mounting Plate (A)

Outlet Box

Fixture Wire

Lock Nut (E)

Headless Screw (D)

Type A Max.60 W

or ST Vintage Bulb

(not included)

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

W0351

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

190724

Headless Screw (D)Mounting Screw (B)Wire Connector (C)

Lock Nut (E)

Mounting plate (A)Ball Nut (F)

1. Thread two headless screws (D) through the mounting plate (A),

then secure them with four lock nuts (E) (two on each side of the

mounting plate). Adjust the length of the headless screws (D) if

necessary.

Note: Make sure that the headless screws are lined up

horizontally, in order to ensure that the fixture will be

level.

2. Attach the mounting plate (A) to the outlet box by using two

mounting screws (B).

Turn off the power at fuse or circuit box

Installation Steps
