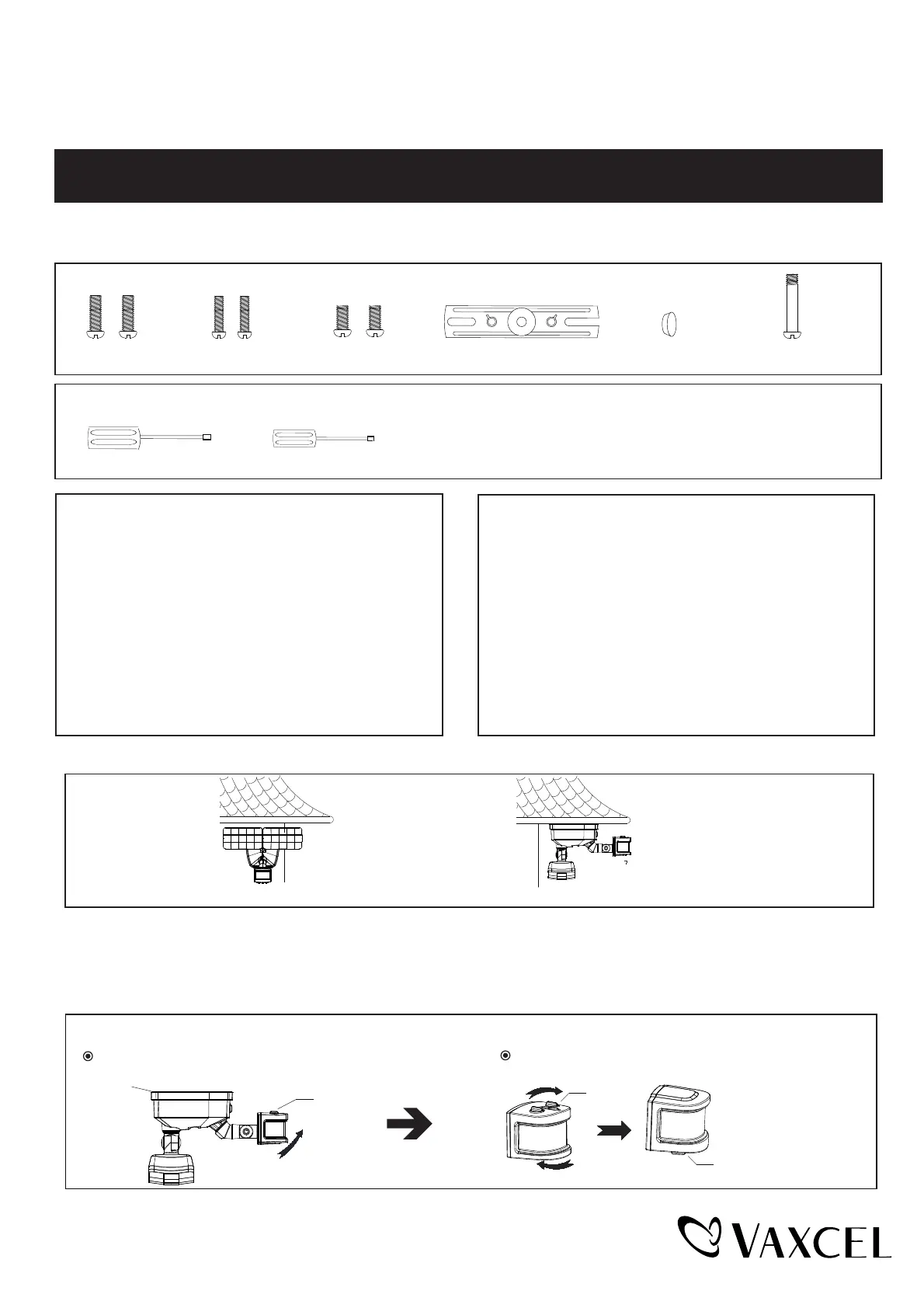

220207
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.READ AND SAVE THESE INSTRUCTIONS.
T0619
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Wall Mounted
Eave Mounted
Read notes section on page4 for additional information about mounting location of fixture.
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
For eave mounted only:
Swing the sensor head towards the mounting bracket.
Rotate the sensor head clockwise 180˚ so the controls face down.
Controls
Controls
Controls
Backplate
Important to Know:
1.If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
2.This fixture requires a 120 VAC, 60 Hz power
source.
3.For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before adjustment.
Features:
Maximum Wattage: 22 W
Working Temperature Range: -13°F ~ 113°F
Note: Fixture can be wall mounted or eave mounted.
1.Energy saving LED fixture.
2.Motion sensor: turns light ON at full brightness
automatically when motion is detected and DIMS
light to low level brightness automatically when
motion stops.
3.
Photocell automatically keeps the light OFF during
daylight hours and automatically turns the light ON
during evening hours.
4.The wall switch that the light is connected to can be
used to manually override and change functionality
and settings of certain modes.
Tools Needed:
1.Phillips-head screwdriver for attaching mounting screws to
mounting strap, mounting bracket and fixture to mounting bracket.
2.1/8” wide flat-head screwdriver for connecting the source wires
into the wiring terminal station on the mounting bracket.
(1) Philip-head Screwdriver
(2) 1/8" wide Flat-head Screwdriver
Hardware Package (included):
Mounting Screw X2
#8/32X1/2 in
Fixture Mounting Screw
Mounting Strap
Mounting Screw X2
#6/32 X1/2 in
Mounting Screw X2
#10/24 X1/4 in
Decorative cover
