ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0367
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

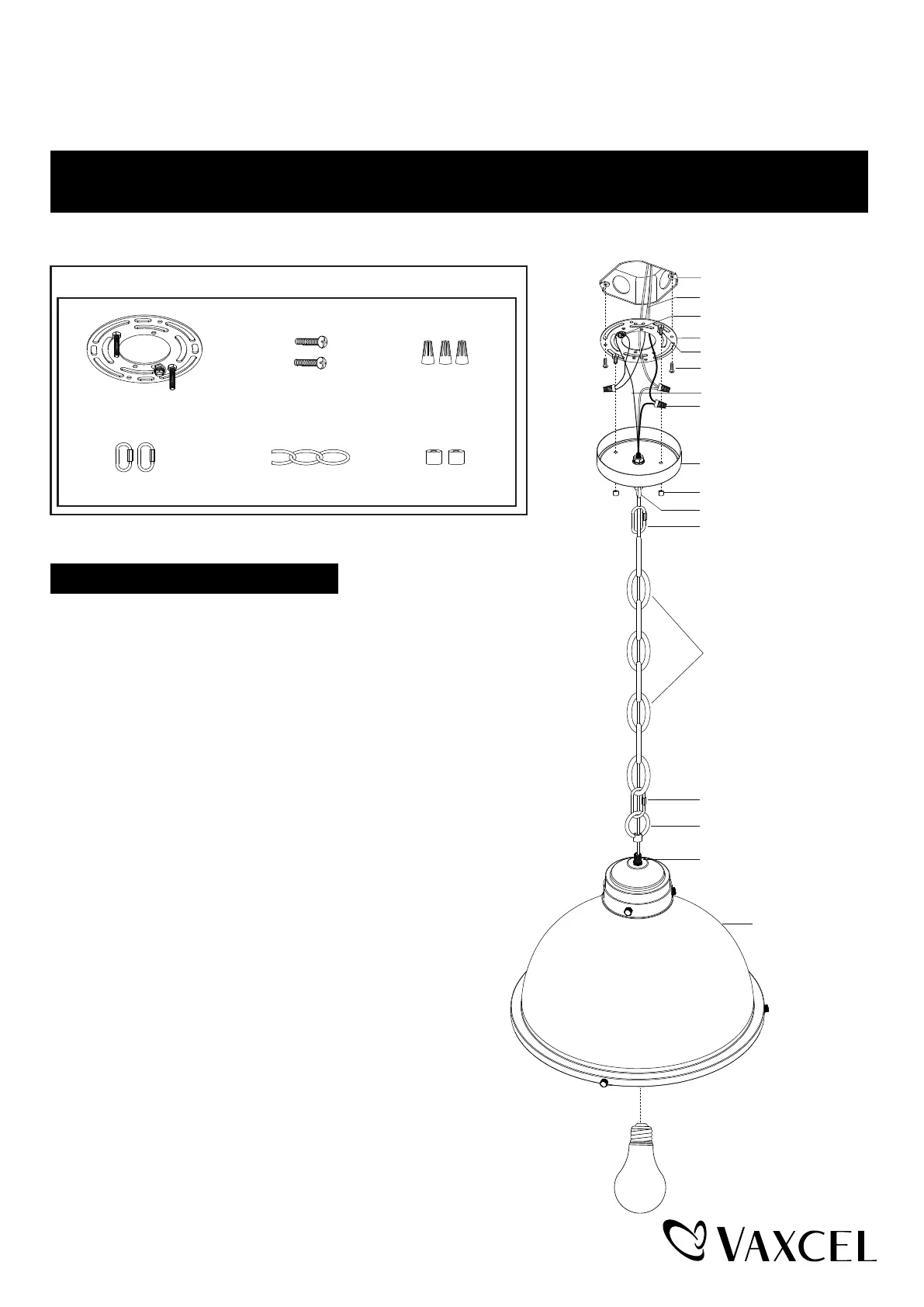

Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2. Attach the loop onto the threaded pipe and tighten it.
3. Choose the length of the chain (E) you need, use pliers
(not included) to open and remove excess chain section,
then weave the fixture wire and the fixture ground wire
through the chain (E) and canopy.
4. Connect one end of the chain (E) with the
loop by using a quick link (D). Connect the
other end of the chain (E) with the fixture
loop by using another quick link(D).
5. Thread the fixture wire and fixture ground wire
through mounting plate unit (A).
6. Pull out the outlet wires and house ground wire
from the outlet box. Make wire connections using
the wire connectors (C):
---The smooth wire (marked) from the fixture to the
black wire from the power source.
---The ridged wire (unmarked) from the fixture to
the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the
mounting strap unit (A) with the green ground
screw, then connect it to the house ground wire
with a wire connector (C).
Carefully put all the wires back into the outlet box.
220217
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Canopy
Bolt Nut (F)
Quick Link (D)
Quick Link (D)
Threaded Pipe
Fixture
Loop
Loop
Outlet Box
Max.60W Type A Bulb
(not included)
Chain (E)
Wire Connector (C)Mounting Screw (B)
Quick Link (D)
Chain (E)Bolt Nut (F)
Mounting Plate Unit (A)
