WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Page 1 / 2
241024
1. Remove the two set screws (D), separate the mounting plate unit (A) from the backplate.
2. Attach mounting plate unit (A) to the outlet box using two mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire connections using wire
connectors (C) as follows:
---Connect the hot wire (black insulation) from the power source to the black
wire from the fixture.
---Connect the neutral wire (white insulation) from the power source to the white wire from the fixture.
---Attach the fixture ground wire (green insulation or bare wire) to the mounting plate unit (A) with the
green ground screw, or connect to the source ground wire if available.
Carefully put the wires back into the outlet box.
4. Attach the backplate to the mounting plate unit (A) by aligning holes, secure the two set screws (D) from the side hole
of the backplate into the side hole of the mounting plate unit (A).
Turn off the power at fuse or circuit box.
Installation Steps
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0503

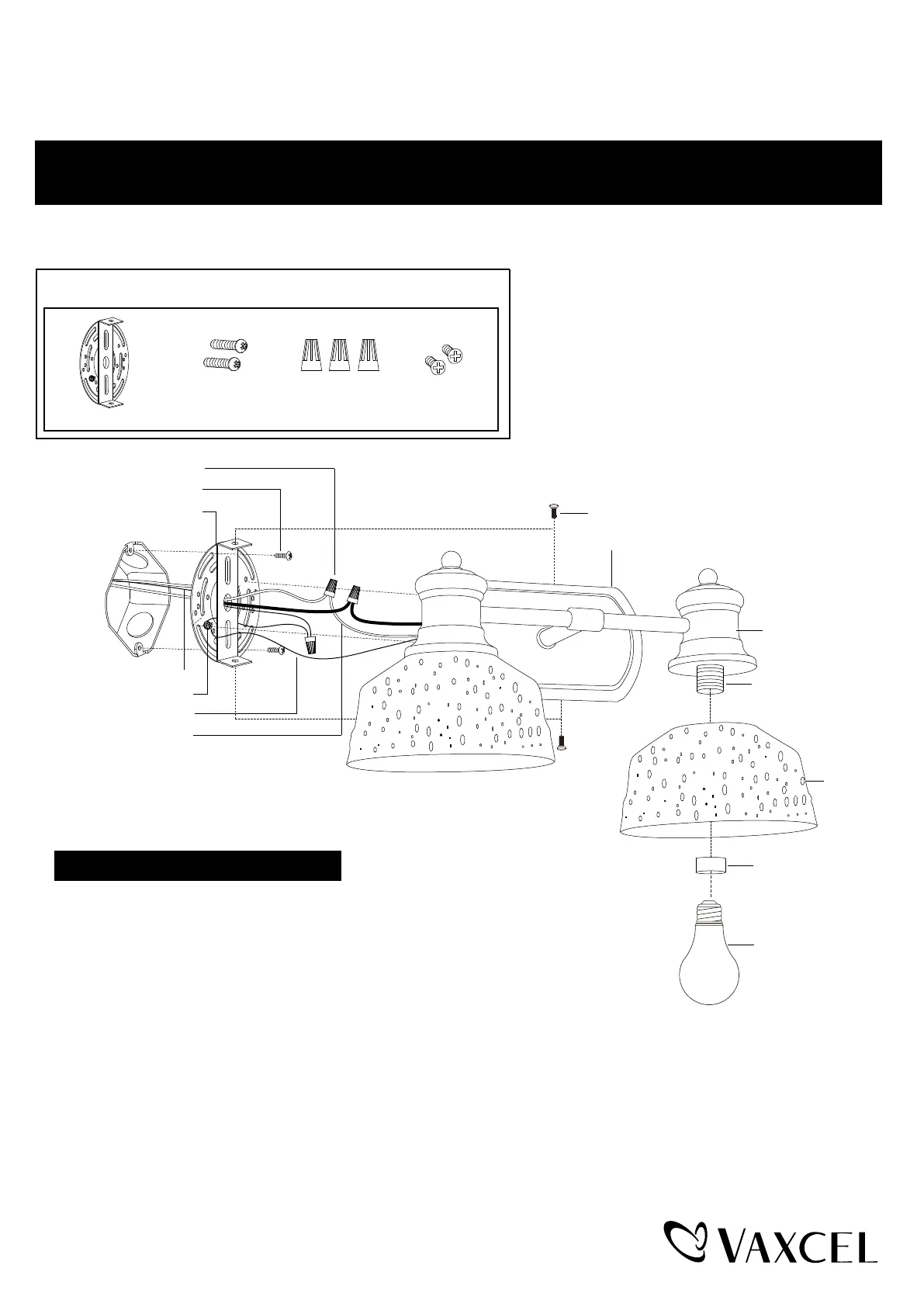

Hardware Package (included):
Mounting Screw (B)Wire Connector (C)Set Screw (D)Mounting Plate Unit (A)
Wire Connector (C)
Green Ground Screw
Mounting Plate Unit (A)
Mounting Screw (B)
Set Screw (D)
Backplate
Socket Ring
Max. 60W Medium Base
Bulb (not included)
Glass Shade
Socket
Fixture
Fixture Ground Wire
House Ground Wire
Fixture Wire
