ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTIONS.

C0260

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

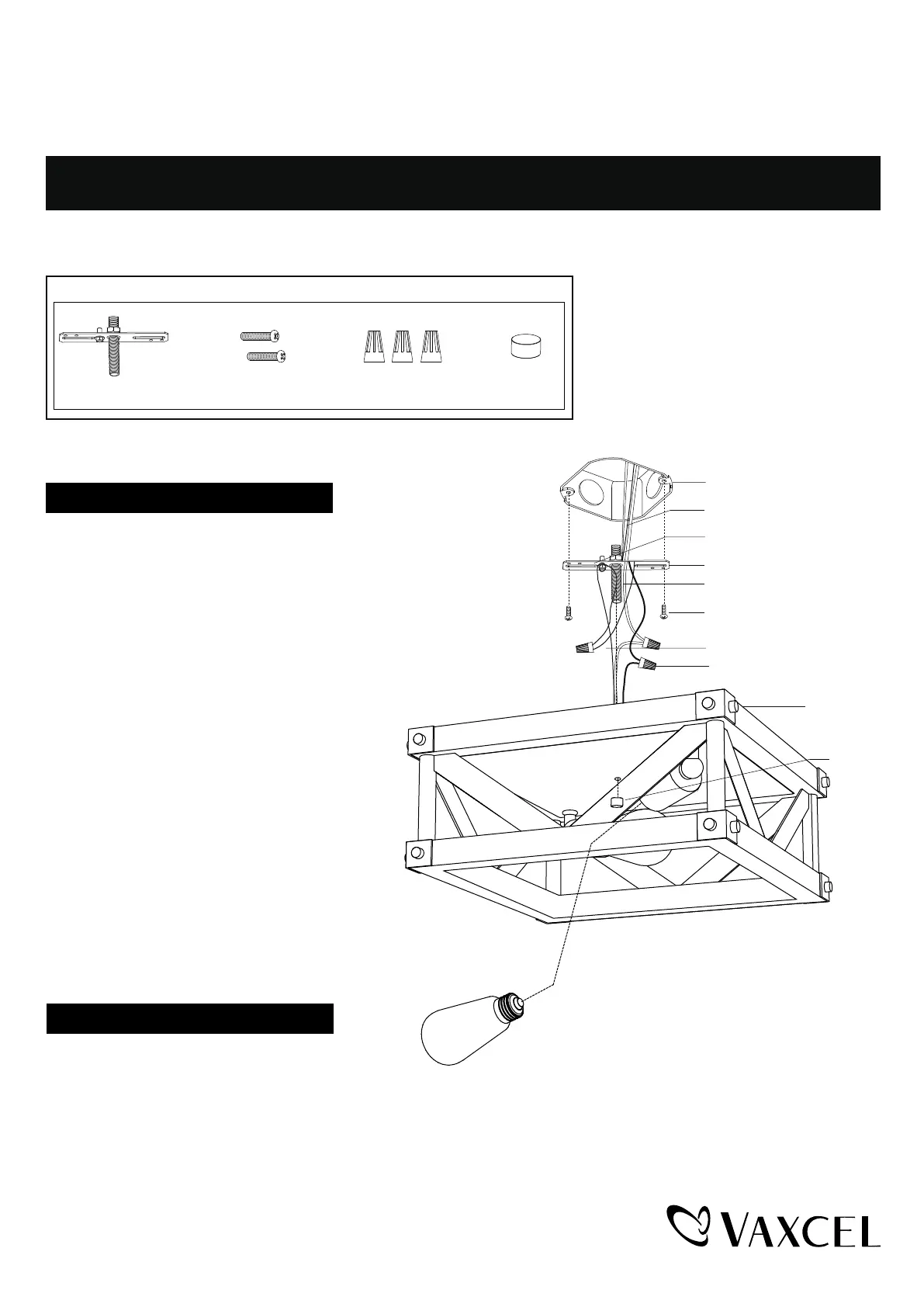

Mounting Strap Unit (A)Mounting Screw (B)Finial (D)Wire Connector (C)

1. Attach the mounting strap unit (A) to the

outlet box using two mounting screws (B).

2. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

---Connect the smooth-coated wire (marked)

from the fixture to the black wire from the

power source.

---Connect the ribbed-coated wire (unmarked)

from the fixture to the white wire from the

power source.

---Attach the fixture ground wire to the

mounting strap unit (A) with the green

ground screw, then connect it to the

house ground wire with a wire connector (C).

Carefully put the wires back into the outlet box.

3. Attach the canopy to the mounting strap unit (A)

and secure it with a finial (D).

4. Install 2 x 60W max.medium base bulbs (not included).

See relamping label at socket area or packaging for

maximum wattage allowed.

House Ground Wire

Fixture Ground Wire

Wire Connector (C)

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture

Threaded Pipe

Outlet Box

Finial (D)

Max.60W

Medium Base

Bulb

(not included)

Turn on the power at fuse or circuit box.
