ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

W0147

1. Thread two headless screws through the mounting plate, then secure them with four lock nuts (two on each side of the

mounting plate). Adjust the length of the headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally, to ensure that the fixture will be level.

2. Attach the mounting plate to the outlet box by using two mounting screws.

3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follow:

---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting plate with the green grounding

screw. Then connect it to the house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

141202

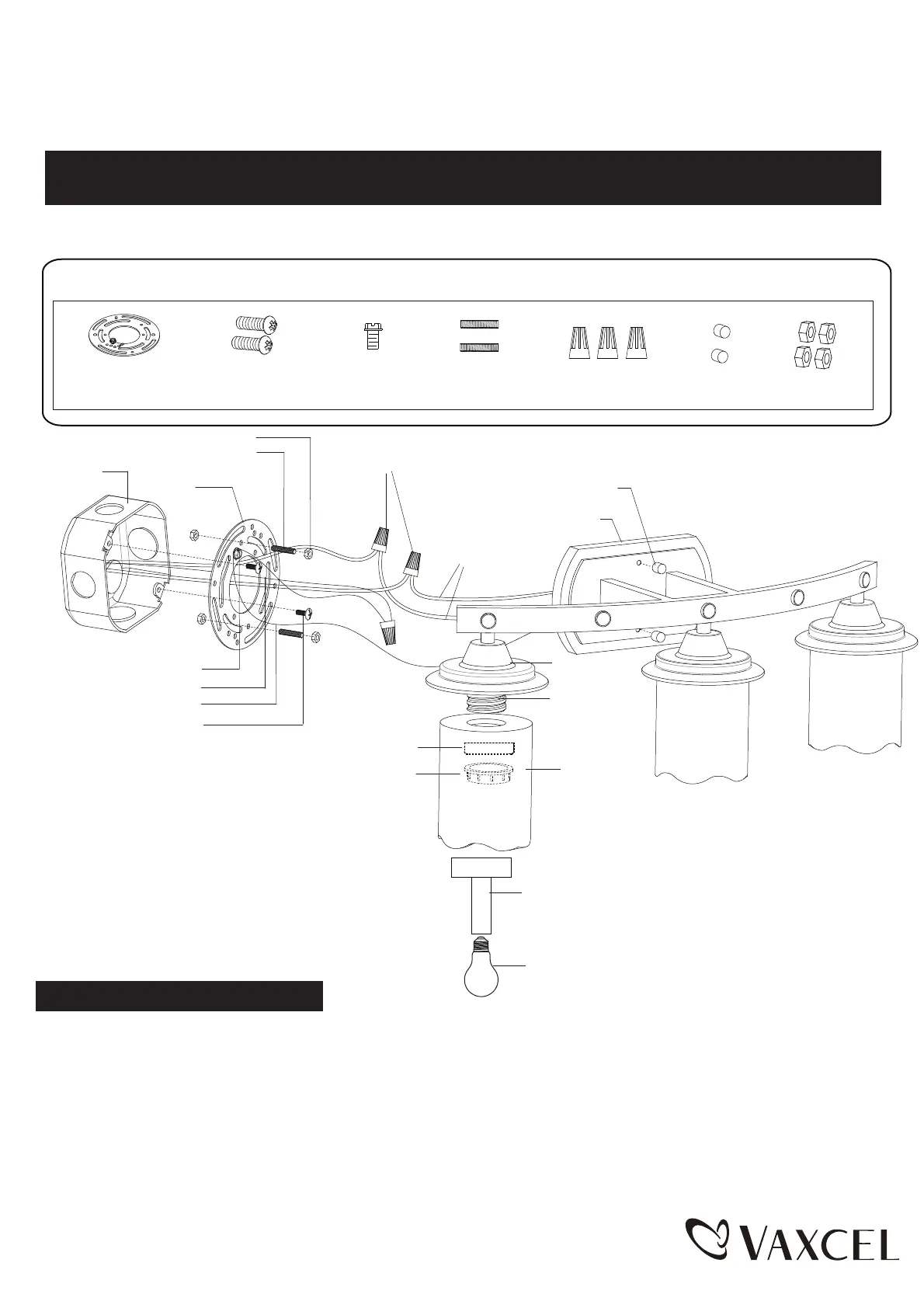

Mounting Screw (B)

Wire Nut (E)

Mounting Plate (A)

Ball Nut (F)Lock Nut (G)

Headless Screw(D)

Socket Fixer

Glass Shade

Ball Nut (F)

Socket

Spacer

Socket Ring

Bulb Type A Max.100W

(not included)

Back Plate

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Green Grounding

Screw (C)

Turn off the power at fuse or circuit box.

Installation Steps

Glass Bracket

T

Mounting Screw (B)

Mounting Plate (A)

Wire Nut (E)

Headless Screw(D)

Lock Nut(G)

Outlet Box

Fixture Wire

Green Grounding Screw (C)

House Grounding Wire

Fixture Grounding Wire
