ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
H0244
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.

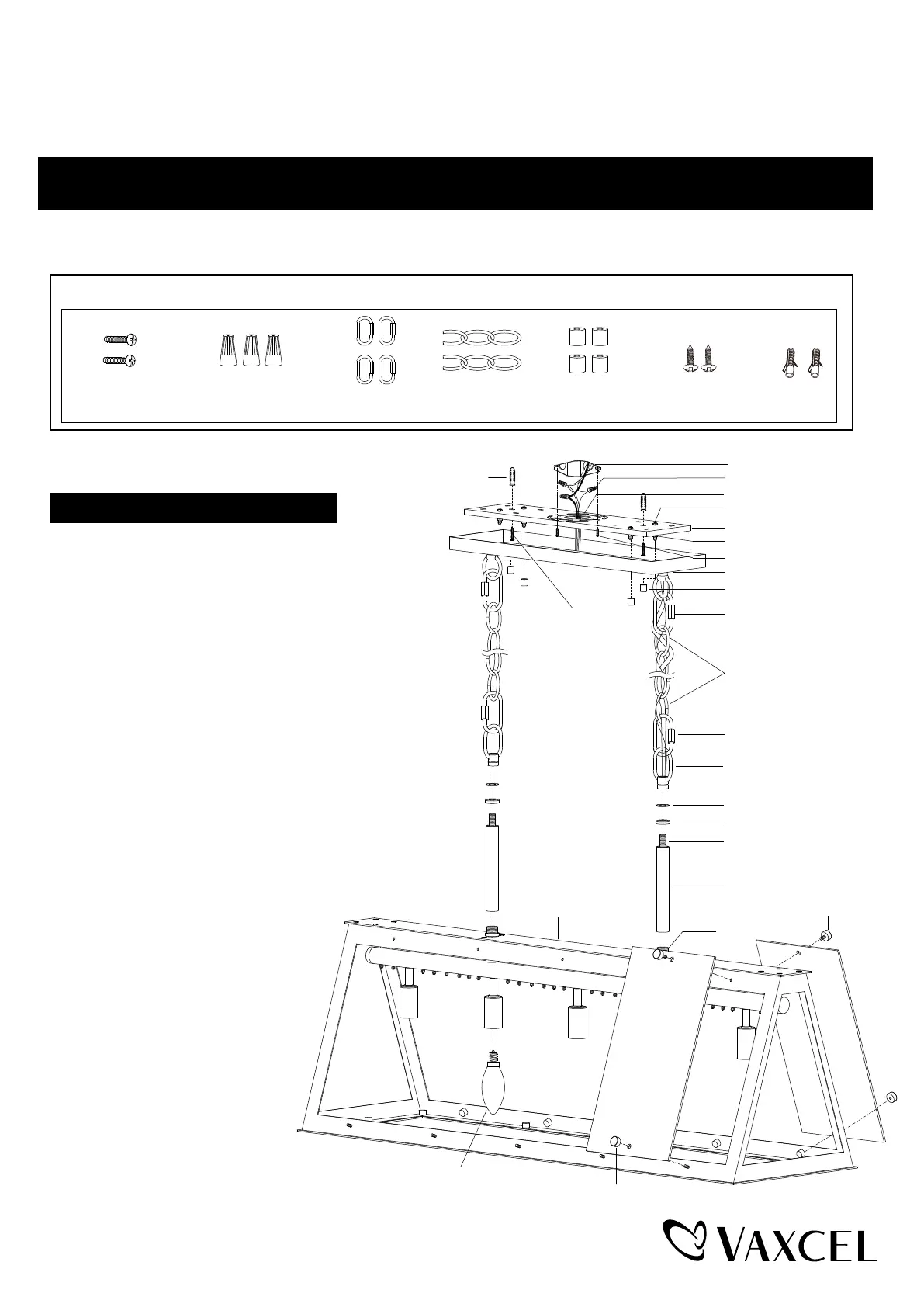

Installation Steps
Green Ground Screw
Mounting Screw (A)
Canopy
Ball Nut
(E)
Mounting Backplate
Wire Connector (B)
Fixture Mounting Screw
Lock Nut
Outlet Box
Threaded Pipe
Short Tube
Tube Cap
Washer
Loop Lock (C)
Loop Lock (C)
Loop
Chain (D)
Glass Panel
Fixture
Coupling
Set Screw 2
Set Screw 1
Candelabra Bulb
Max.60W (not included)
1. Attach the mounting back plate to the outlet box
using two mounting screws (A).
2. Thread the anchors (G) into the holes, then
attach the mounting bracket to the outlet box
by using two mounting screws (A). Secure
the dry wall screws (F) through the set
holes into the anchors (G).
3. Attach the short tube onto the coupling and
tighten it. Attach the short tube and tube cap
onto the fixture by inserting the threaded pipe,
then secure with the washer and loop.
4. Choose the length of the chain (D) you need,
use pliers (not included) to open and remove
links to short the chain, then weave the fixture
wire and the fixture ground wire through the
chain (D) and canopy.
5. Connect one end of the chain (D)
with the loop by using a loop lock (C).
6. Connect the other end of the chain (D)
by using another loop lock (C).
7. Thread the fixture wire and fixture
ground wire through mounting
backplate.
Hardware Package(inculded):
Wire Connector (B)Mounting Screw (A)
Loop Lock (C)
Chain (D)
Ball Nut (E)
Dry Wall Screw (F)
Anchor (G)
Anchor (G)
Dry Wall Screw (F)
