ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTIONS.

H0273

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Installation Steps

1

. Unscrew the bolt nuts (D), take out the mounting plate

unit (A) and then attach to the outlex box by using two

mounting screws (B).

2. Attach the tube and shade to the fixture.

3. Rod Connections:

a. Thread the fixture wire from the shade through the lower rod,

then secure the lower rod onto shade using the threaded pipe.

b. Thread the fixture wire through the middle rod and then secure

the middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then

secure the upper rod onto the middle rod using the

threaded pipe.

Note: Length adjustable from 15-1/2" to 75-1/4". Use

fewer rods if shorter length is desired.

4. Thread the fixture wire through the canopy kit,

then secure the rod assembly to the set threaded

pipe of the canopy kit.

5. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

---Connect the hot wire (black insulation) from the power

source to the black wire from the fixture.

---Connect the neutral wire (white insulation) from the power

source to the white wire from the fixture.

---Attach the fixture ground wire (bare wire) to the mounting

plate unit (A) with the green ground screw, or connect to

the source ground wire if available.

Carefully put the wires back into the outlet box.

6. Attach the fixture onto the mounting strap unit (A)

and tighten it with two bolt nuts (D).

221109

Wire Connector (C)Mounting Screw (B)

Mounting plate Unit (A)

Bolt Nut (D)

Page 1 / 2

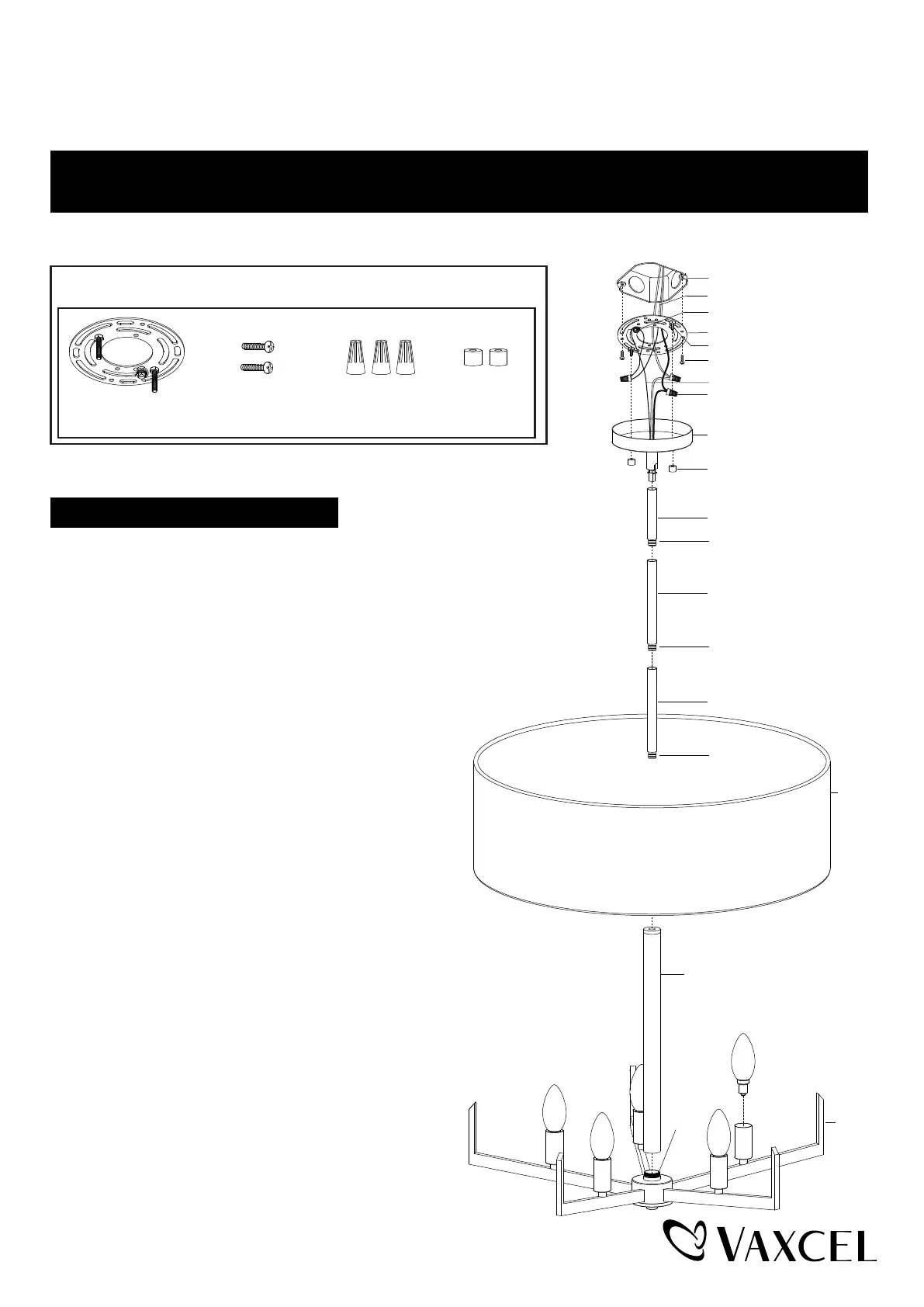

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Canopy Kit

Upper Rod

Threaded Pipe

Middle Rod

Threaded Pipe

Low Rod

Threaded Pipe

Max. 60W Type B Bulb

Tube

(not included)

Fixture

Shade

Threaded

Pipe
