ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0281
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the bolt nuts (D), take out the mounting plate
unit (A) and then attach to the outlex box by using two
mounting screws (B).
2. Attach the tube to the fixture.
3. Rod Connections:
a. Thread the fixture wire through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod and then
secure the middle rod onto the lower rod using the
threaded pipe.
c. Thread the fixture wire through the upper rod, then
secure the upper rod onto the middle rod using the
threaded pipe.
Note: Length adjustable from 17" to 62". Use
fewer rods if shorter length is desired.
4. Thread the fixture wire through the canopy kit,
then secure the rod assembly to the set threaded
pipe of the canopy kit.
5. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C)
as follows:
---Connect the smooth-coated wire (marked) from the power
source to the black wire from the fixture.
---Connect the ribbed-coated wire (unmarked) from the power source to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw,
or connect to the source ground wire if available.
Carefully put the wires back into the outlet box.

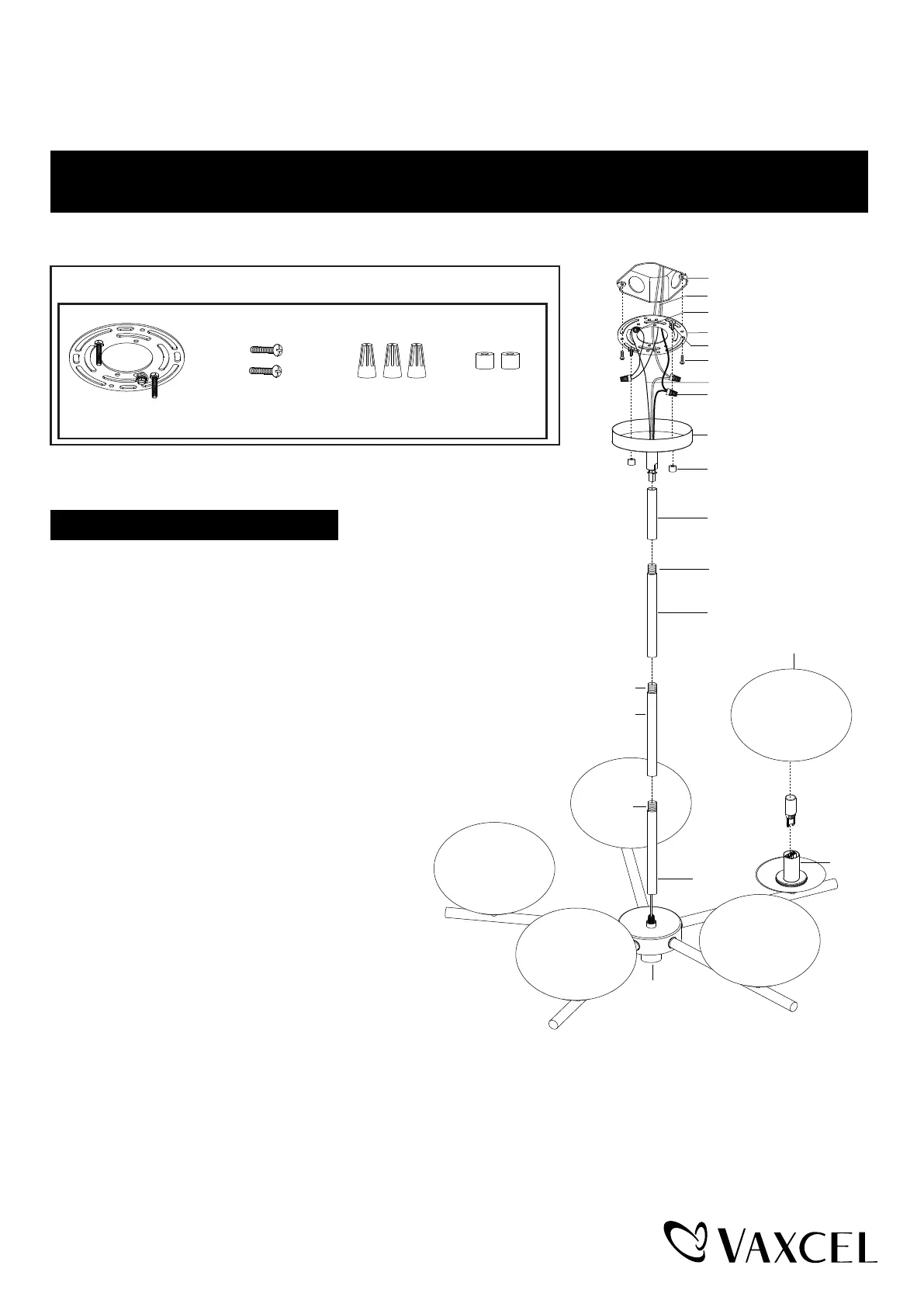

Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (D)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Canopy Kit
Upper Rod
Threaded Pipe
Middle Rod
Middle Rod
Threaded Pipe
Low Rod
Fixture
Threaded Pipe
Max.10W G9
LED Bulb
(not included)
Glass Shade
Socket
Page 1 / 2
