ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0152

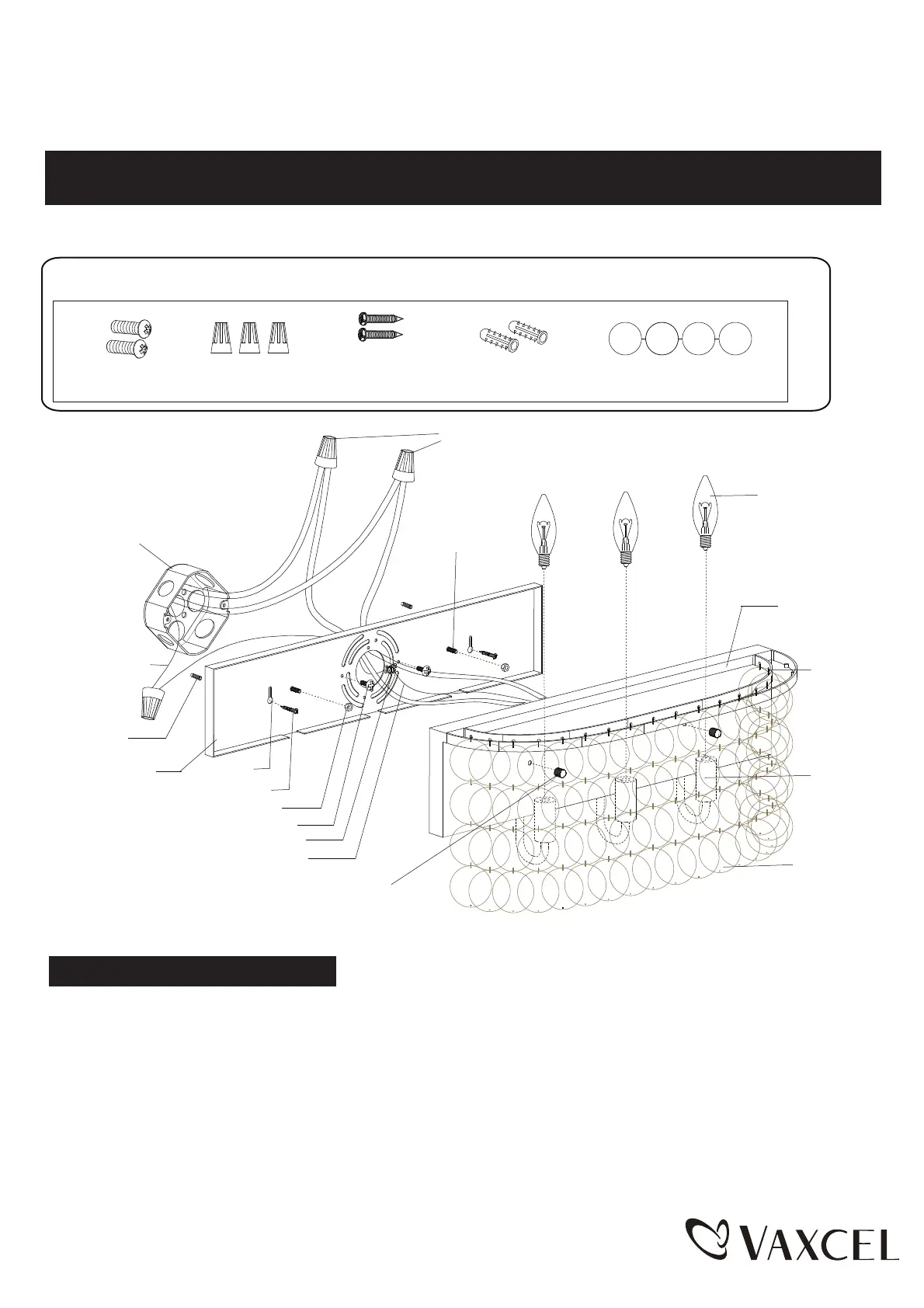

1. Remove the mounting plate from fixture by unscrewing two bolt nuts.
2. Fix the mounting plate to the wall.
a) For wooden material:
Attach the mounting plate to the outlet box by using two mounting screws, and then secure the dry wall screws
through the set holes to the wall.
b) For cement material:
Place the mounting plate to the outlet box and mark the target on the wall from the set hole for drilling two holes.
Remove the mounting plate from the outlet box. Thread the anchors into the holes, then attach the mounting plate
to the outlet box by using two mounting screws. Secure the dry wall screws through the set holes into the anchors.
141118
Mounting Screw (A)
Wire Nut (B)
Dry Wall
Screw (C)
Anchor (D)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
House Grounding Wire
Fixture Grounding Wire
Mounting Plate
Green Grounding Screw
Bolt Nut
Mounting Screw (A)
Fixture Mounting
Screw
Socket
Fixture
Pure Shell(E)
Pure Shell(E)
Back Plate
Lock Nut
Set Hole
Anchor(D)
Wire Nut (B)
Dry Wall Screw(C)
Outlet Box
Bulb Type B Max.
60W (not included)
