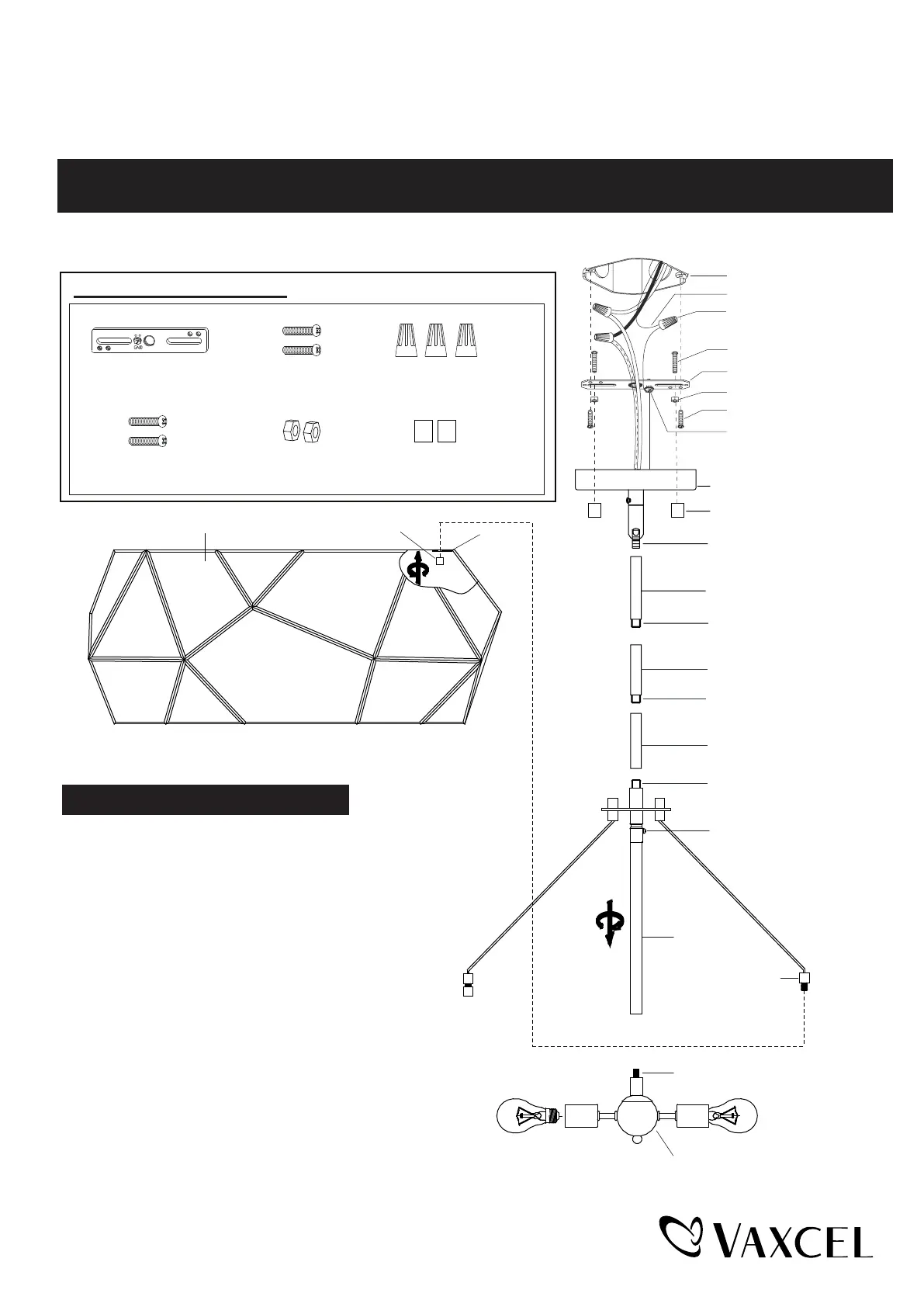

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0317
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Strap (A)
Mounting Screw (B)Wire Connector (C)
Fixture Mounting Screw (D)
Lock Nut (E)Ball Nut (F)
Threaded Pipe
Fixture Canopy
Ball Nut (F)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
OutletBox
HouseGround Wire
Wire Connector (C)
Fixture Mounting Screw (D)
Mounting Strap (A)
Green Ground Screw
Lock Nut (E)
Mounting Screw (B)
Threaded Pipe
Plastic Screw
Center Rod
Threaded Pipe
Ring
Glass ShadeFuse Bolt Nut
Fixture
Stud
Medium Base Bulb
Max.60W (not included)
Turn off the power at fuse or circuit box
Installation Steps
1. Thread two fixture mounting screws (D) through the
mounting strap (A), then secure with two lock nuts (E).
Adjust the length of the fixture mounting screws (D)
if necessary.
2. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
3. Connect the center rod to the fixture by using the
threaded pipe.
