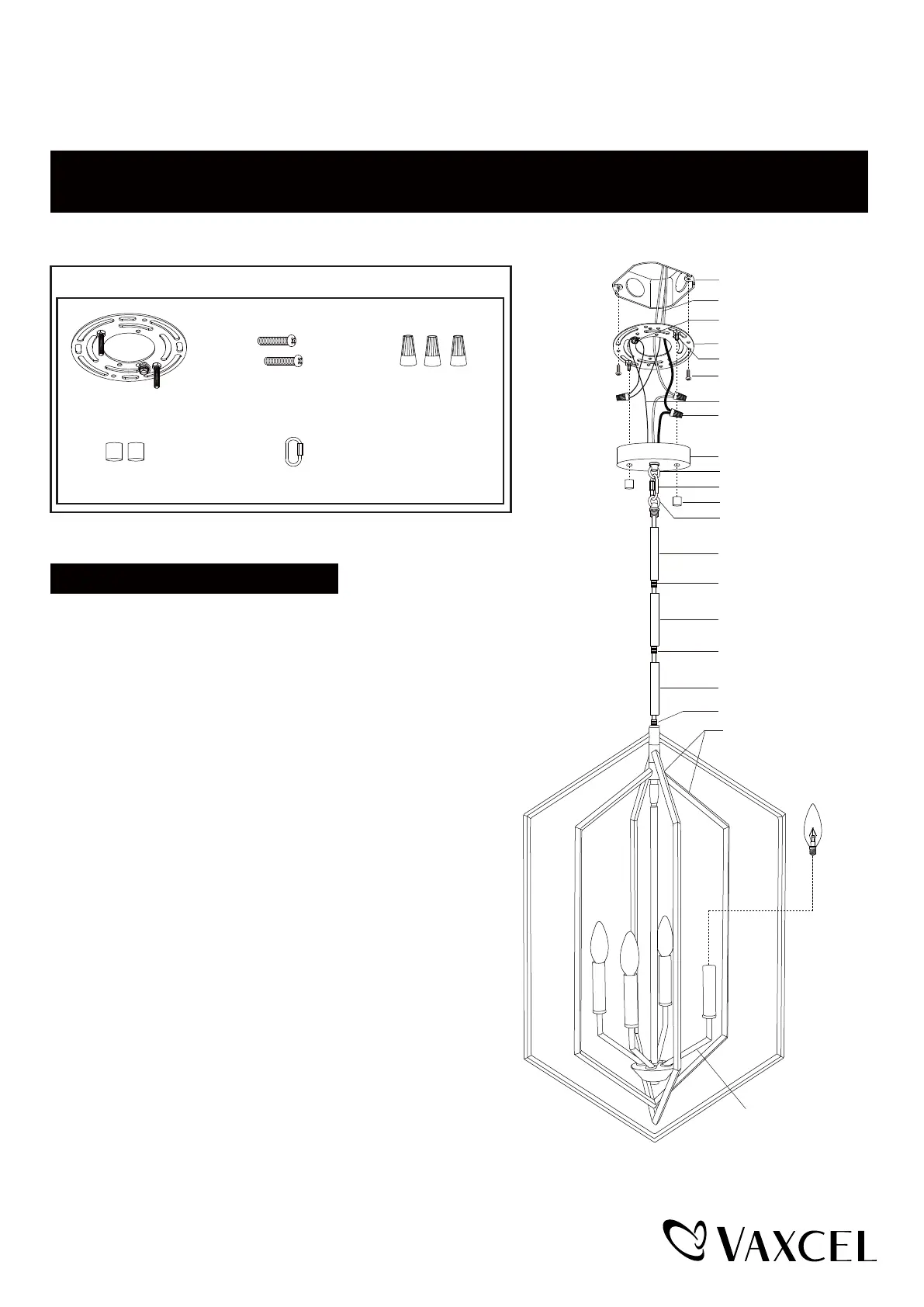

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTIONS.

P0388

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Installation Steps

1

. Attach the mounting plate unit (A) to the outlet box by using two

mounting screws (B).

2. Rod connections:

a. Thread the fixture wire from the fixture through the lower rod,

then secure the lower rod onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod, and then secure

the middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, and then secure

the upper rod onto the middle rod using the threaded pipe.

d. Thread the fixture wire through the top loop, then

secure the top loop onto the upper rod using the threaded pipe.

Note: Length adjustable from 37-1/4" to 91-1/4". Use fewer

rods if shorter length is desired.

3. Thread the fixture wire through the loop and canopy, then

connect the top loop and the loop with a quick link (E).

4. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C) as follows:

---Connect the smooth-coated wire (marked) from the fixture to

the black wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture

to the white wire from the power source.

---Attach the fixture ground wire to the mounting plate unit (A) with

the green ground screw, then connect it to the house ground wire

with a wire connector (C).

Carefully put the wires back into the outlet box.

5. Attach the canopy to the mounting plate unit (A) by inserting the

fixture mounting screws, secure it with two bolt nuts (D).

Bolt Nut (D)

Mounting plate Unit (A)Mounting Screw (B)

Wire Connector (C)

Quick Link (E)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Canopy

Bolt Nut (D)

Outlet Box

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Bracket

Threaded Pipe

Threaded Pipe

Loop

Top Loop

Quick Link (E)

Frame

221021

Max. 60W Type B Bulb

(not included)
