Loop

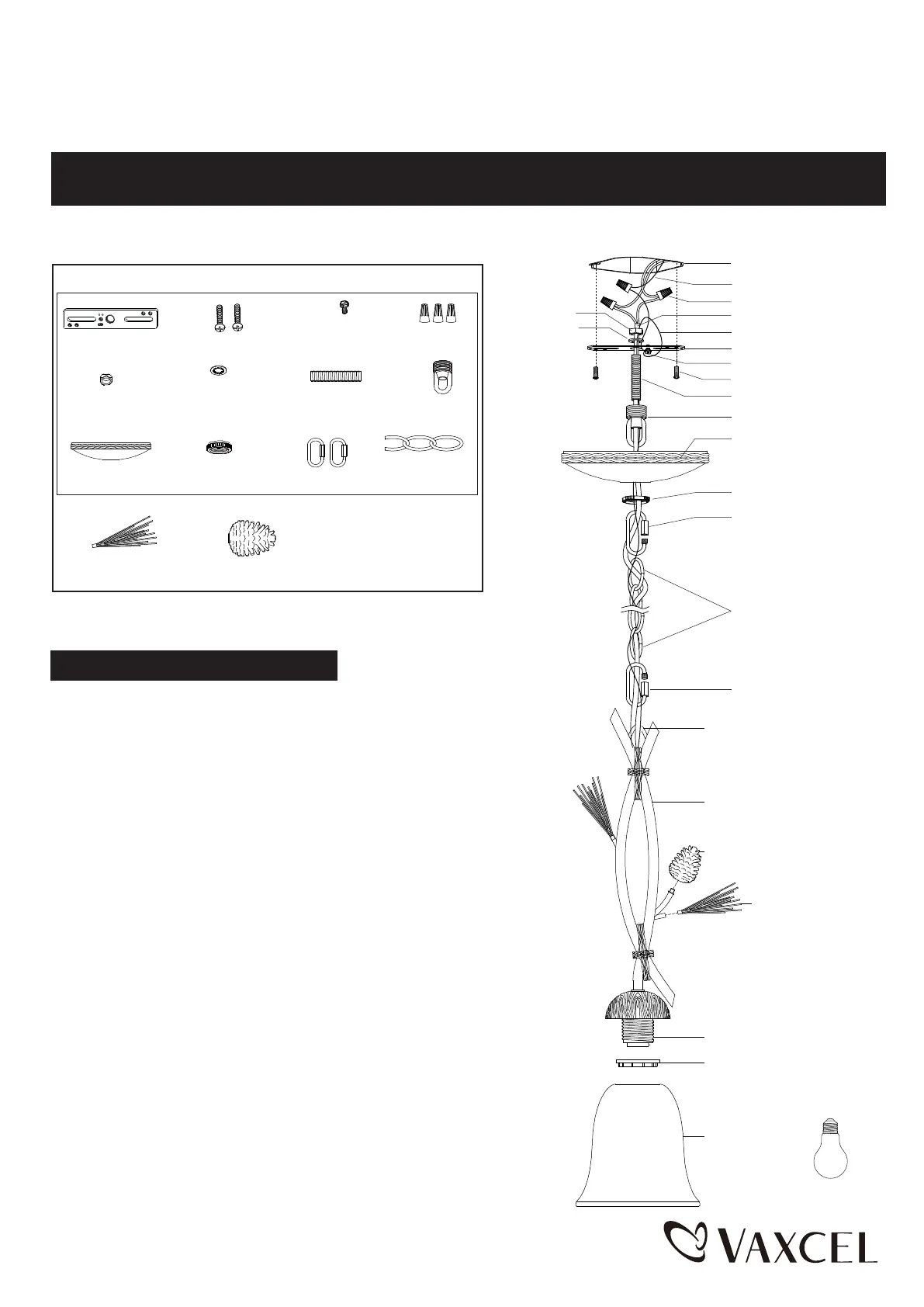

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0201
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
Hardware Package (included):
Outlet Box
House Grounding Wire
Wire Nut(D)
Fixture Wire
Fixture Grounding Wire
Mounting Strap(A)
Green Grounding Screw(C)
Mounting Screw(B)
Threaded Pipe(G)
Canopy(I)
Top Loop(H)
Hex Nut(E)
Washer(F)
Collar(J)
Loop Lock(K)
Loop Lock(K)
Chain(L)
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Wire Nut (D)
Canopy (I)
Loop Lock (K)
Chain (L)
Hex Nut (E)
Washer (F)
Threaded Pipe(G)
Top Loop (H)
Collar (J)
Pine Needle (M)2pcs
Small Pine Cone (N)1pcs
6. Install bulbs (not included). Check relamping label at socket area or
packaging for maximum allowed wattage.
7. Connect the chain:
- Determine needed length of chain to achieve desired fixture height.
(To remove excess chain section, use pliers to bend link open).
- Weave the fixture wires through the chain, collar and canopy.
8. Connect one end of the chain to the loop using a loop lock.
9. Connect the other end of the chain to the top loop using the other
loop lock.
10. Thread the fixture wire and fixture grounding wire through the
top loop, threaded pipe and mounting strap.
1. Attach threaded pipe to the mounting strap, and then secure it with a
washer and a hex nut.
2. Attach mounting strap to outlet box using two mounting screws.
3. Secure the top loop to the threaded pipe.
4. Secure the small pine cone (N) and pine needle (M)
onto the fixture as shown in graph.
5. Attach the glass shades onto the socket , and then
secure it with the socket ring.
Main Body
Small Pine Cone(N)
Pine Needle(M)
Socket
Socket Ring
Glass Shade
Bulb Type A Max.60W
(not included)
Page 1 / 2
240702
