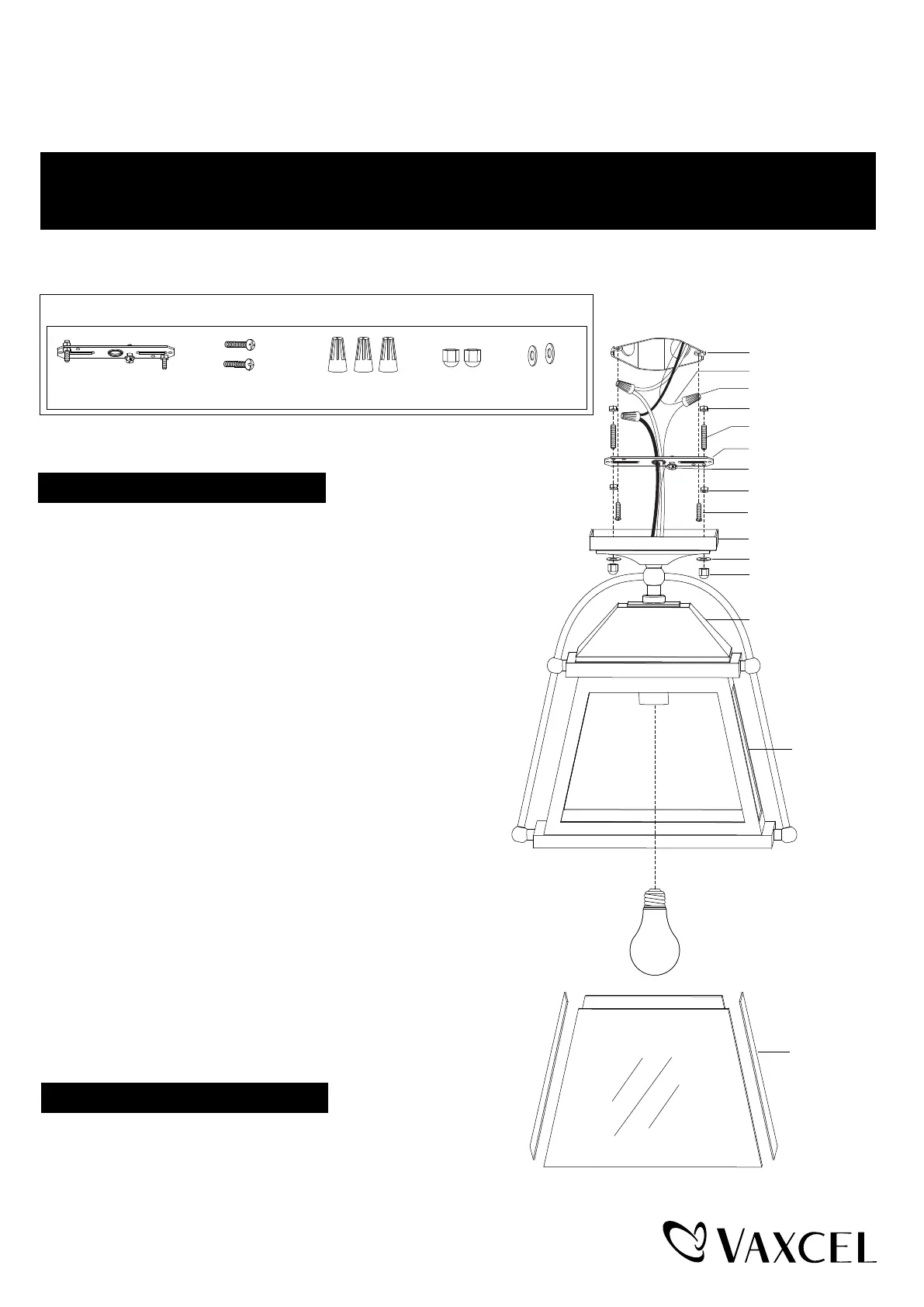

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

200120

T0537

W

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ

AND SAVE THESE INSTRUCTIONS.

Hardware Package (included):

Mounting Strap Unit (A)Mounting Screw (B)Wire Connector (C)

Bolt Nut (D)Rubber Pad (E)

1. Remove the two bolt nuts (D), the two rubber pads (E) and the

mounting strap unit (A) from the canopy.

2. Attach the mounting strap unit (A) to the outlet box using two

mounting screws (B).

3 Take a glass panel and gently slide it into the metal

frame in place,secure it by pressing two clips on top side of

the metal frame and two clips on the bottom of the metal

frame. Repeat with the other glass panels. (See Fig.1 and Fig.2)

4. Pull out the source wires from the outlet box.

Make wire connections using wire connector (C) as follows:

--- Connect the black wire from the fixture to the black wire

from the power source.

--- Connect the white wire from the fixture to the white wire

from the power source.

--- Attach the fixture grounding wire to the mounting strap

unit (A) with the green grounding screw, then connect

it to the house grounding wire with a wire connector (C).

Carefully put the wires back into the outlet box.

5. Attach the canopy to the mounting strap unit (A) by inserting

the headless screw, then secure it with two rubber pads (E)

and two bolt nuts (D).

6. Install the bulb (not included). Check relamping label at socket

area or packaging for maximum wattage allowed .

Turn off the power at fuse or circuit box

Turn on the power at fuse or circuit box

Installation Steps

Outlet Box

House Grounding Wire

Wire Connector (C)

Headless Screw

Mounting Strap Unit (A)

Green Grounding Screw

Lock Nut

Mounting Screw (B)

Lock Nut

Canopy

Bolt Nut (D)

Rubber Pad (E)

Fixture

Metal Frame

Max.60W Type A Bulb

(not included)

Glass Panel
