ASSEMBLY AND INSTALLATION

INSTRUCTIONS

180930

Outlet Box

House Grounding Wire

Wire Connector(C)

Fixture Mounting Screw (D)

Lock Nut (F)

Mounting Strap(A)

Green Grounding Screw(E)

Canopy

Threaded Pipe

Ball Nut(G)

Rod

Set Screw

Socket

Fixture Light

Glass Shade

Mounting Screw(B)

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0193

Bulb Type B 40W

(not included)

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

1. Attach two fixture mounting screws to the mounting strap, and then secure it with two lock nuts. Adjust the length of the

fixture mounting screws if necessary.

2. Attach the mounting strap to the outlet box using two mounting screws.

3.Secure the rod onto canopy using the threaded pipe.

4. Pull out the source wires from the outlet box. Make wire connections using wire connectors as follows:

---Connect the black wire from the fixture to the black wire from the power source.

---Connect the white wire from the fixture to the white wire from the power source.

---Attach the fixture grounding wire to the mounting strap with the green grounding screw, and then connect it to the

house grounding wire with a wire connector.

Carefully put the wires back into the outlet box.

5. Install the bulbs (not included). Check relamping label at socket area or packaging for maximum allowed wattage.

6. Attach the glass shade onto the socket and tighten it with set screws.

7. Attach the canopy onto the outlet and tighten it with two ball nuts.

Turn on the power at fuse or circuit box

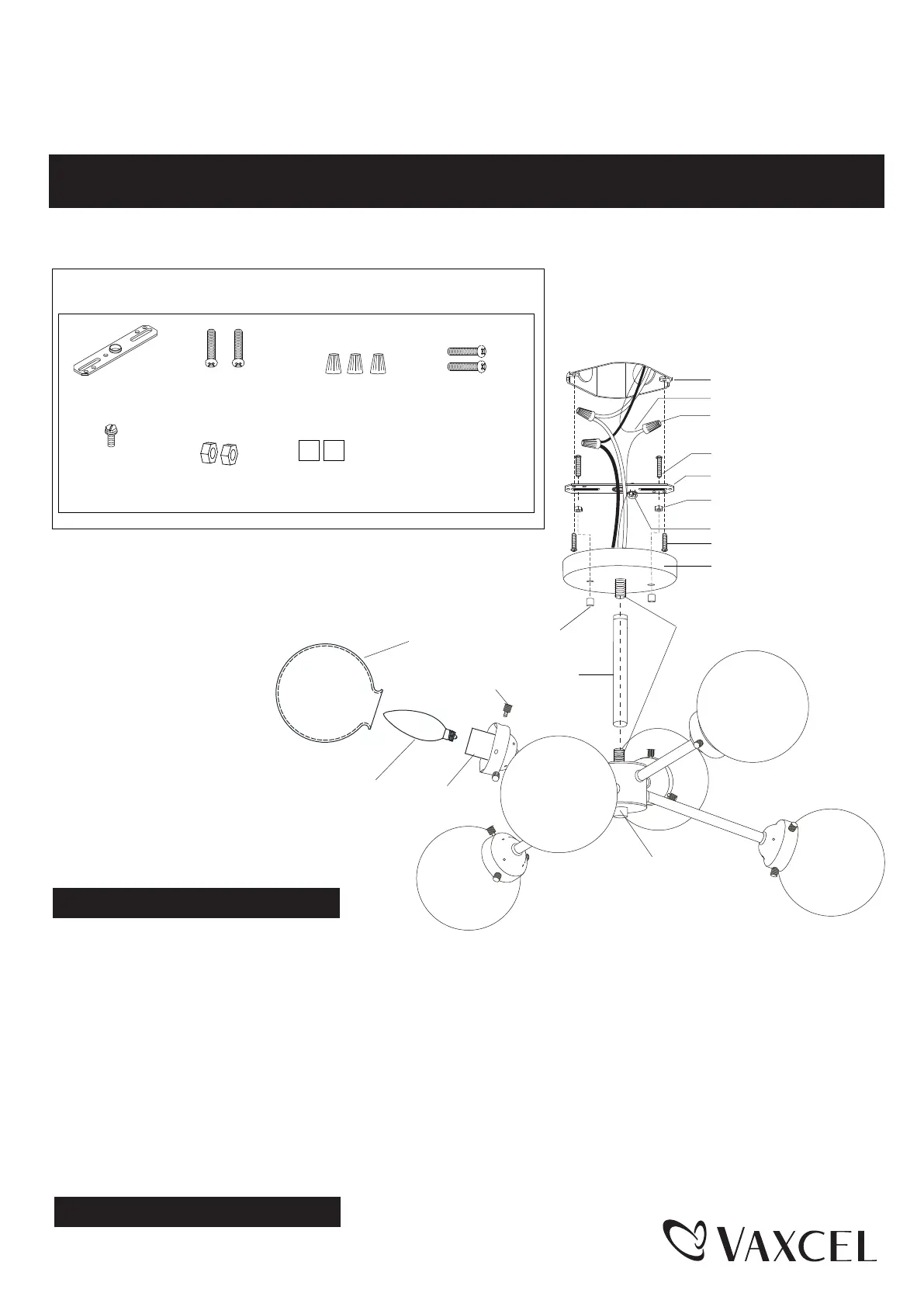

Mounting Strap (A)

Green Grounding

Screw (E)

Fixture Mounting

Screw (D)

Mounting Screw (B)

Wire Connector (C)

Lock Nut (F)

Ball Nut (G)

Turn off the power at fuse or circuit box

Installation Steps
