ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.READ AND SAVE THIS INSTRUCTION.
P0378
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Glass Shade
Cable
Bolt Nut (D)
Outlet Box
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Fixture Mounting
Screw
Wire Connector (C)
Strain Relief
a
c (3")
d (3/8")
b (9")

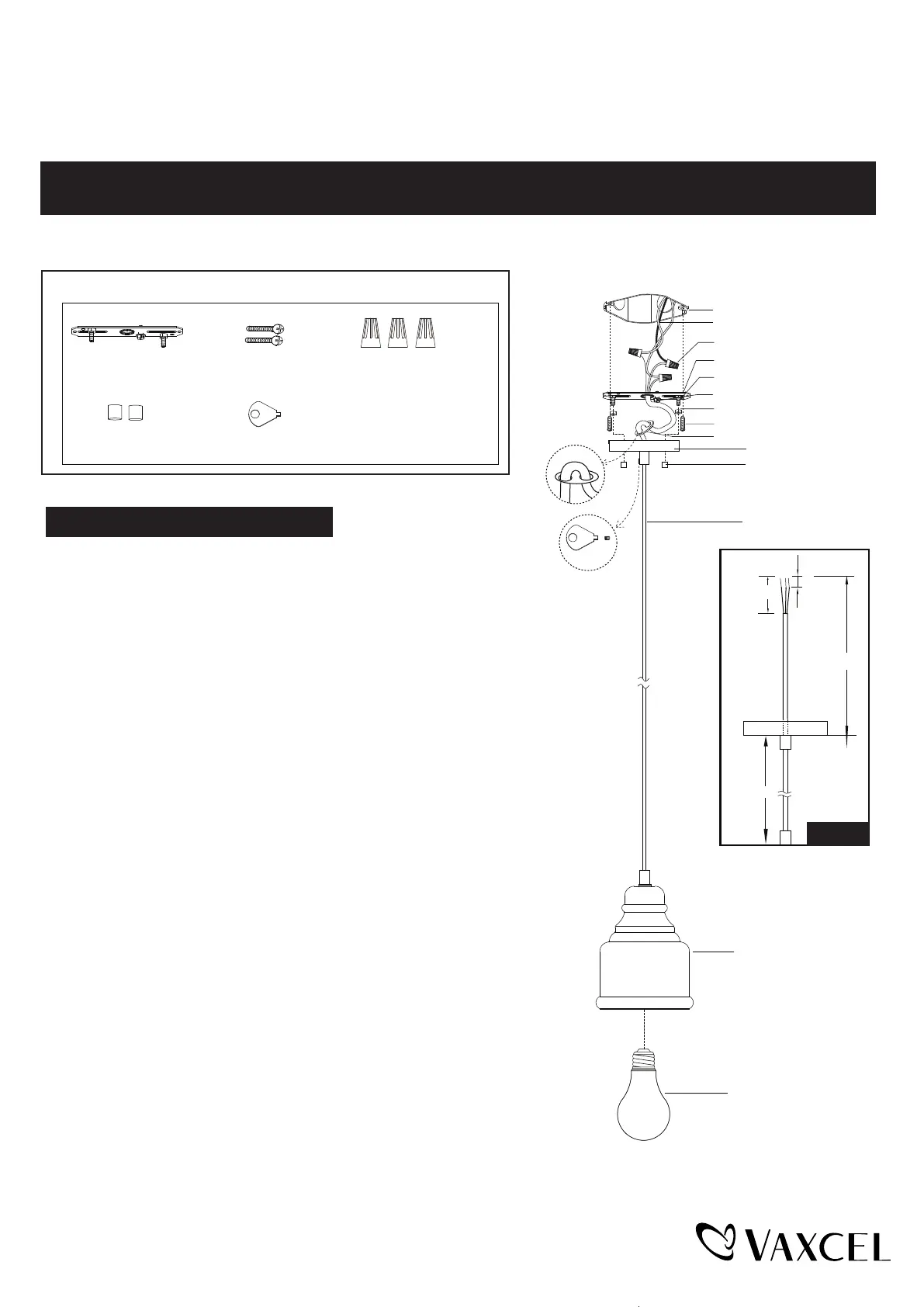

Figure.1
1.
Fastening cable by screwing plastic headless screw, using flat
headscrew driver (E).
2.Measure the desired length of the cable (a) from the canopy to the top
side of the cap nut and leave an additional 9" of cable (b) above the
canopy (include the canopy), then cut off the unnecessary cable.
(See Figure 1)
3.Adjust strain relief at 9" position from the top of the cord.
4.Mark the 3" of cord (c) from the top of the cord (b). Use a knife to peel
off the insulation of the cord (c) carefully to expose the 3 wires on the inside.
(See Figure 1)
Caution: Cutting too deep may cut off the three inside wires and destroy
the insulation surface of the three inside wires.
5.Peel off the wire from the top about 3/8" long (d) to expose the copper wires.
6.Attach the mounting strap unit (A) to the outlet box by using two mounting
screws (B).
7.Pull out the outlet wires and the house ground wire from the outlet box.
Make wire connections using the wire connector (C) :
a.The black wire from the fixture to the black wire from the power source.
b.The white wire from the fixture to the white wire from the power source.
c.The green ground wire from the fixture to the green ground wire
from power source.
Carefully put wires back into the outlet box.
8.Pull the cord (a) down slightly until the strain relief touches the hex nut.
Note: Adjusting the strain relief of the canopy can decrease orincrease
the length of cord that is exposed.
Flat HeadScrew
driver (E)
Bolt Nut (D)
Flat HeadScrew driver (E)
Mounting Strap Unit (A)
Mounting Screw (B)
Wire Connector (C)
House Ground Wire
221020
Max. 60W Type A Bulb
(Not Included)
