1. Unscrew the two bolt nuts (D), remove the
mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using
two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined
up horizontally to make the fixture level.
Installation Steps
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0470
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

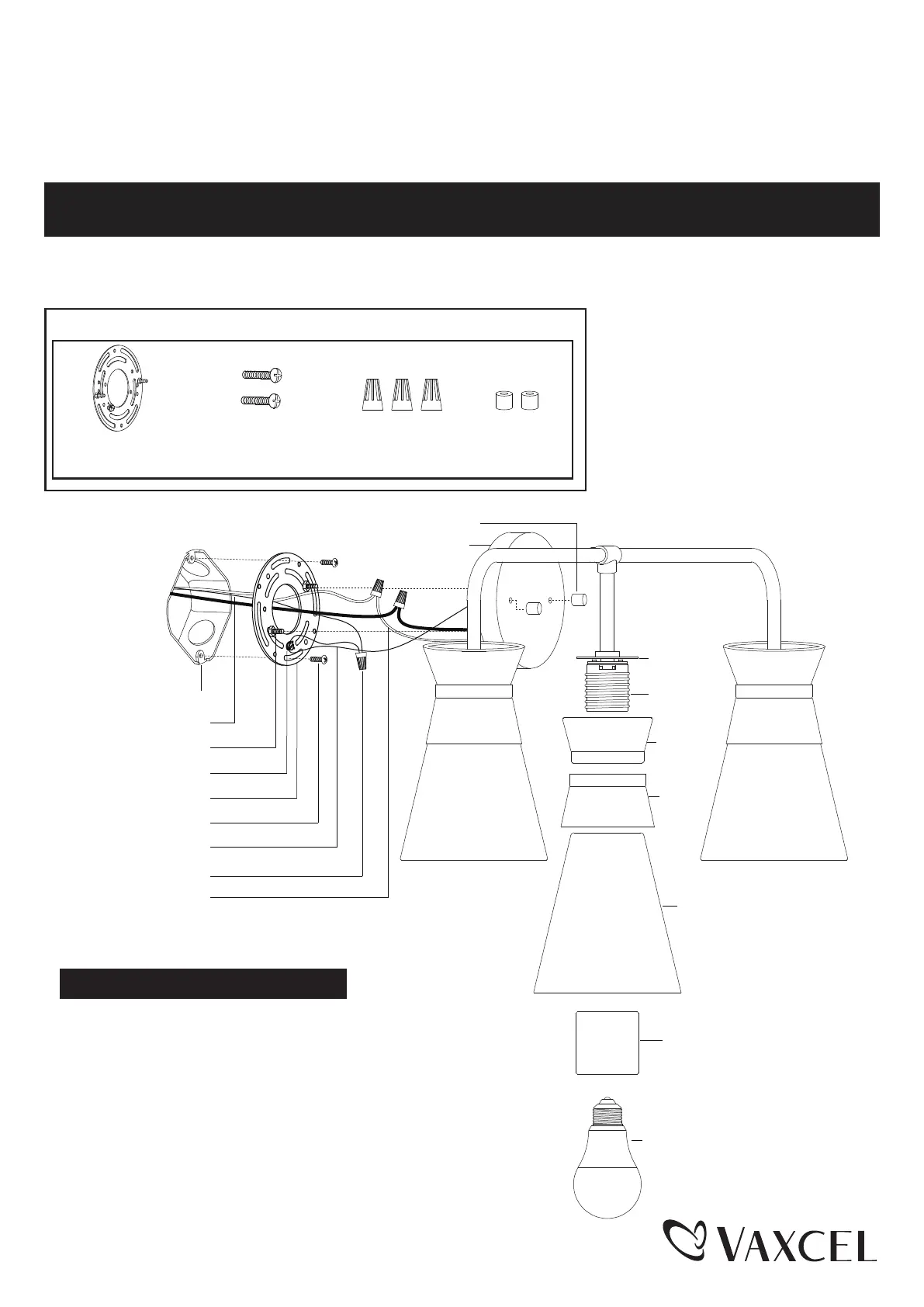

Hardware Package (included):
Mounting Screw (B)Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Page 1 / 2
Turn off the power at fuse or circuit box.
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Fixture Wire
Fixture Ground Wire
Fixture Mounting Screw
Max. 60W Medium
Base bulb (not included)
Socket Ring
Bottom Glass Shade
Glass Holder
Socket
Metal
Ring
Top Glass
Shade
Backplate
Bolt Nut (D)
240430
