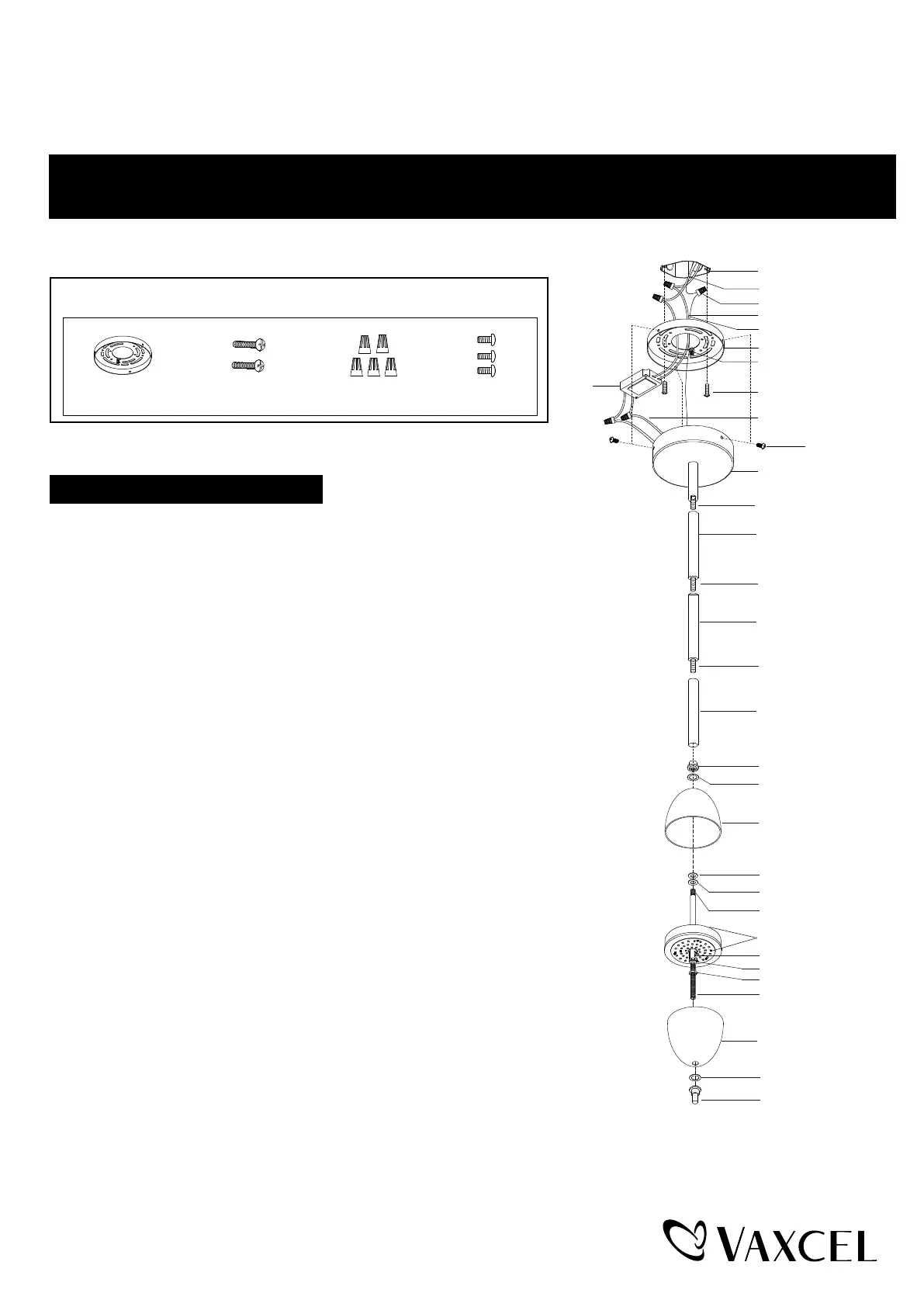

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
1. The fixture of the top iron tube. put into the metal pad and rubber pad ,
Through the hole of the upper glass shade, after put a rubber pad use
the casting to fix it.
2. Attach the threaded pipe into the coupling of the fixture and
secure the hex nut.
NOTE: Depth of threaded pipe may need to be adjusted to
properly fit glass shade, rubber pad and finial.
3. Attach the lower glass shade to the fixture by inserting the
threaded pipe, then secure it with a rubber pad and finial.
Note: Do not over tighten, breakage of glass shade could be
occurred.
4. Attach mounting plate (A) to the outlet box using two mounting screws (B).
5. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod,
then secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 19" to 61". Use fewer rods if shorter
length is desired.
6. Thread the fixture wire through the canopy, then secure the
rod assembly to the coupling kit of the canopy.
7. Make wire connections using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the red
wire from the driver output.
---Connect the ribbed-coated wire (unmarked) from the fixture to the black
wire from the driver output.
Turn off the power at fuse or circuit
box.
Installation Steps
191231
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0319
Mounting Plate (A)Wire Connector (C)Set Screw (D)Mounting Screw (B)
Hardware Package(inculded):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Driver
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Plate (A)
Green Ground Screw
Mounting Screw (B)
Set Screw (D)
Wire Connector (C)
Canopy
Coupling Kit
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Casting
Rubber Pad
Upper Glass Shade
Rubber Pad
Metal Pad
Threaded Pipe
Coupling
Threaded Pipe
Hex Nut
Washer
Lower Glass Shade
Rubber Pad
Finial
DC LED 15W
