ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Turn off the power at fuse or circuit

box.

Installation Steps

1. Attach the mounting strap unit (A) to the outlet box by using

two mounting screws (B).

2.Choose the length of the chain (G) you need,

then weave the fixture wire and the fixture

ground wire through the chain (G), collar (E)

and canopy (D).

3.Connect one end of the chain (G) with the loop by

using a loop lock (F).

4.Connect the other end of the chain (G) with the

top loop by using another loop lock (F).

5.Thread the fixture wire and fixture ground wire

through the top loop, threaded pipe and

mounting strap unit (A).

6.

Hook the lamp with four tubes and then adjust

the angle, finally lock the loop with loop lock (F).

210322

H0262

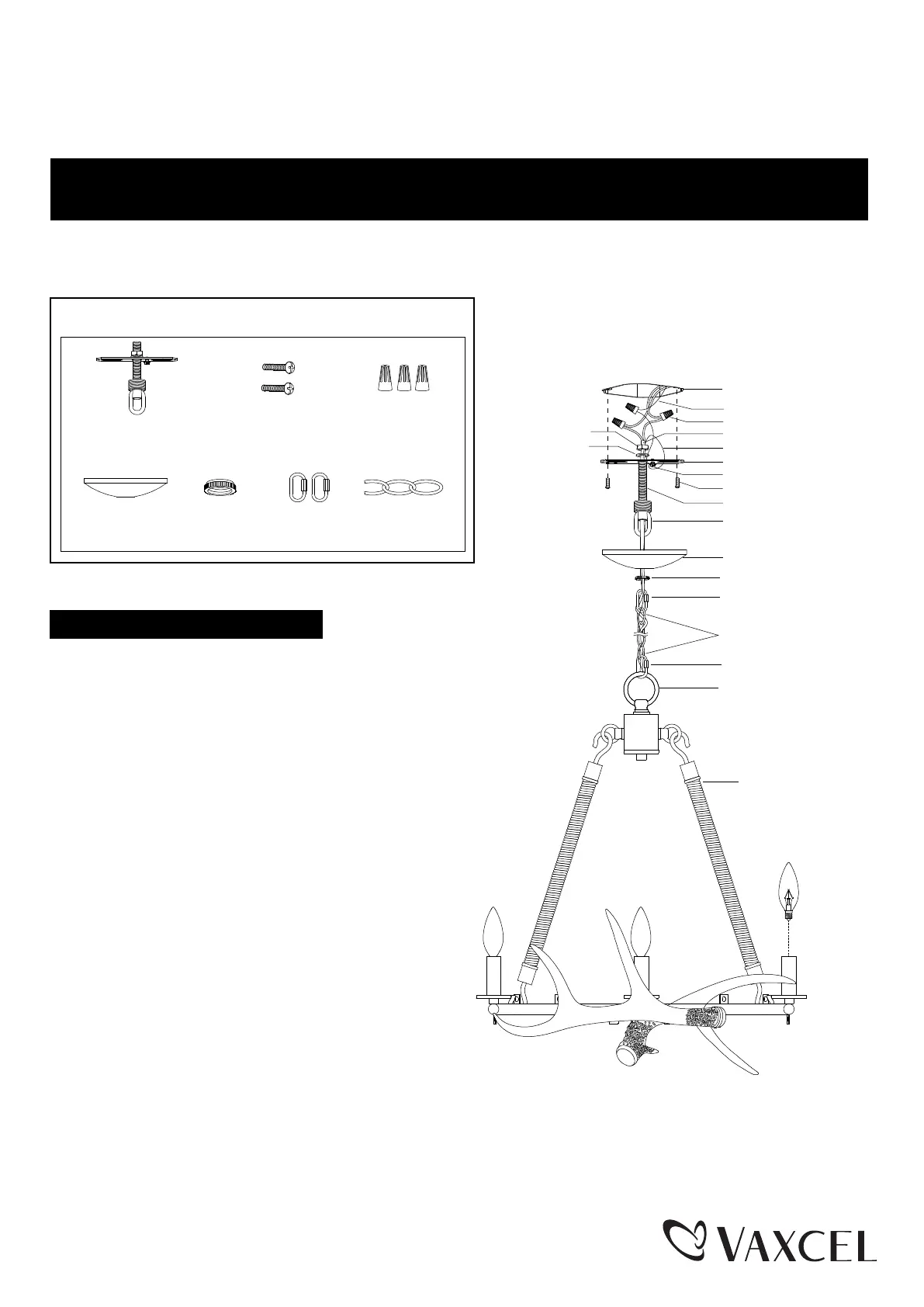

Mounting Strap Unit (A)Wire Connector (C)

Collar (E)

Mounting Screw (B)

Canopy (D)

Loop Lock (F)

Chain (G)

Hardware Package(inculded):

WARNING:

TO

L SHOCK, BE SURE TO SHUT OFF

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.READ

AND SAVE THESE INSTRUCTIONS.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Outlet Box

House Ground Wire

Wire Connector (C)

Fixture Wire

Fixture Ground Wire

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Threaded Pipe

Hex Nut

Washer

Top Loop

Canopy (D）

Loop Lock (F)

Loop Lock (F)

Collar (E)

Chain (G)

Loop

Tube

Candelabra Base Bulb

Max.60W

(not included)
