ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
H0263
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps

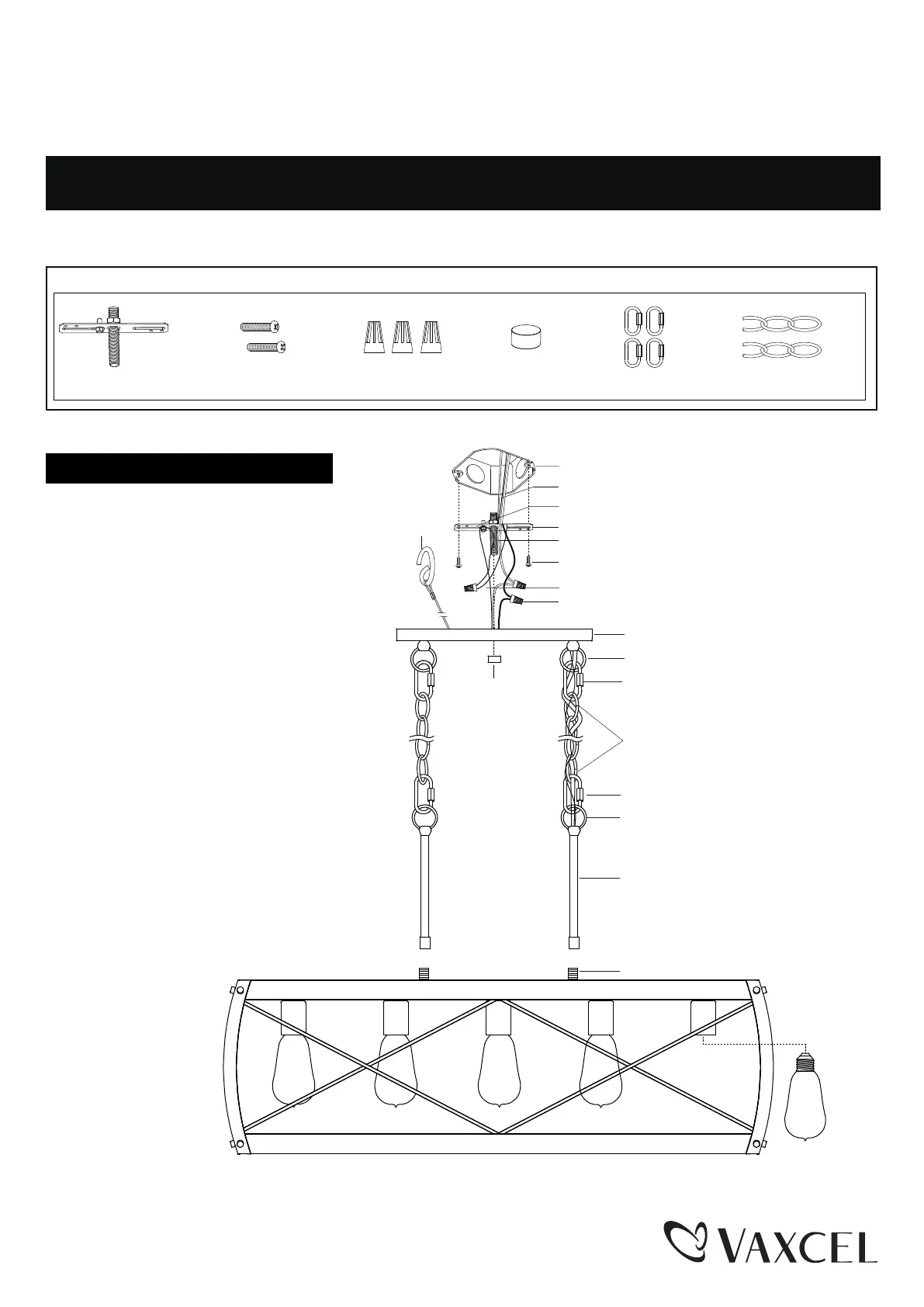

Mounting Strap Unit (A)Mounting Screw (B)Finial (D)Wire Connector (C)
Loop Lock (E)
Chain (F)
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Loop
Canopy
Finial (D)
Threaded Pipe
Outlet Box
Max.60W
Medium Base
Bulb
(not included)
Loop Lock (E)
Loop Lock (E)
Loop
Tube
Threaded Pipe
Chain (F)
1. Attach the mounting strap unit (A) to the
outlet box using two mounting screws (B).
2. Attach the tube onto the threaded pipe and
tighten it.
3. Choose the length of the chain (F) you need,
use pliers (not included) to open and remove
links to shorten the chain (F), then weave the
fixture wire and the fixture ground wire through
the chain (F) and canopy.
Note: Length adjustable from 19-1/2" to
96-1/2". Use fewer rods if shorter length
is desired.
4. Connect one end of the chain (F)
with the loop by using a loop lock (E).
5. Thread the fixture wire and fixture ground wire
through mounting strap unit (A).
6. Attach the cord clamp onto the mounting
strap unit (A).
Cord Clamp
Page 1 / 2
