ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1.
Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0099
Loop
Parts:
Bulb Type B Max.60W
(not included)
Parts Number (5021MM)
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Wire Nut (D)
Canopy (I)
Loop Lock (K)
Chain (L)
140307

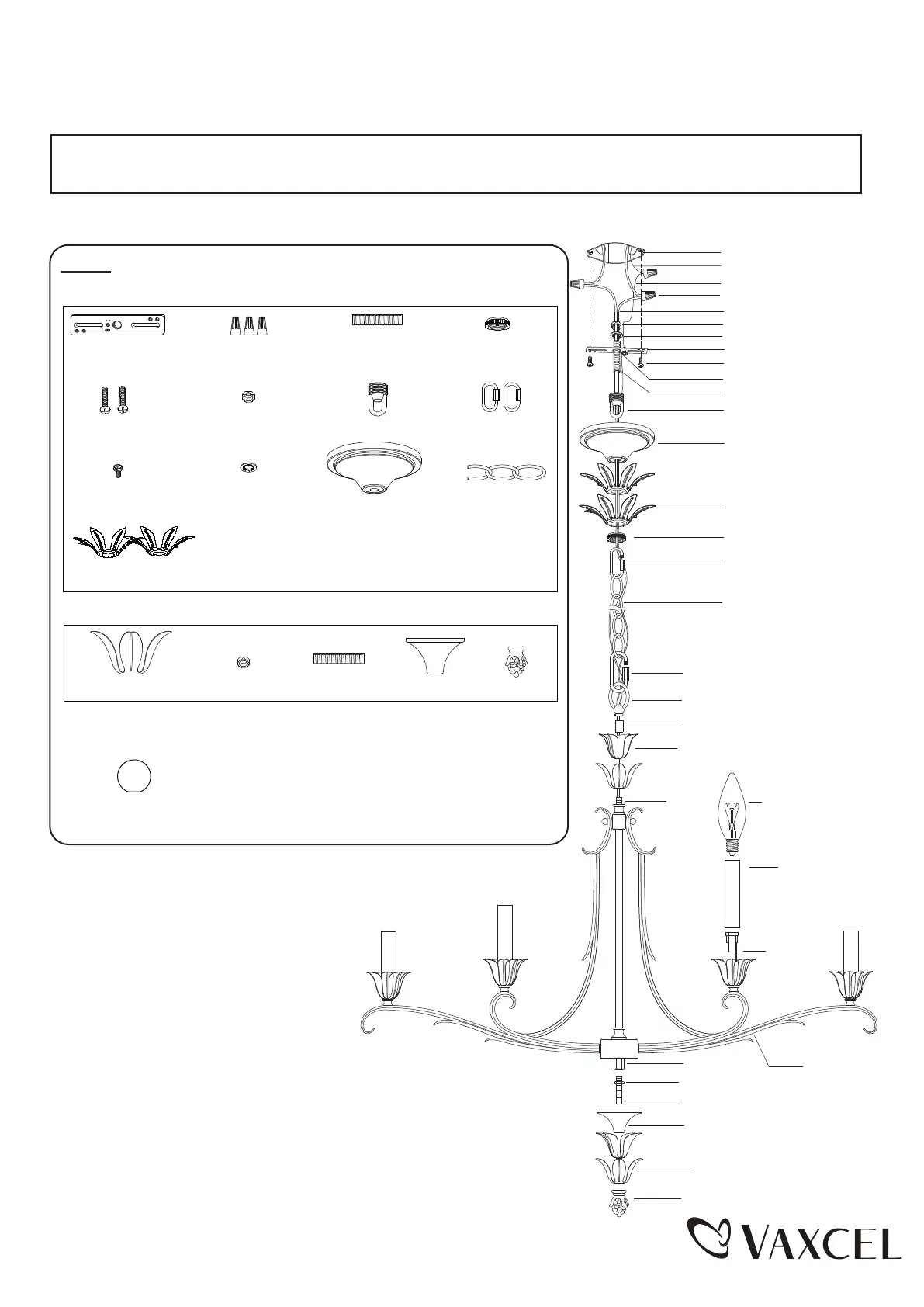

Main Fixture
Socket
Outlet Box
House Grounding Wire
Wire Nut (D)
Fixture Wire
Fixture Grounding Wire
Mounting Strap (A)
Green Grounding Screw (C)
Mounting Screw (B)
Nipple(G)
Canopy (I)
Top Loop (H)
Hex Nut (E)
Washer (F)
Collar (J)
Loop Lock (K)
Loop Lock (K)
Chain (L)
Hex Nut (E)
Washer (F)
Nipple(G)
Top Loop (H)
Collar (J)
Candle Tube
1. Attach the nipple to the mounting
strap, then secure it with a washer
and hex nut.
2. Attach the mounting strap to the
outlet box by using two mounting
screws.
3. Attach the rod and decorative leaf-1 onto stem
of main fixture, thread the loop onto stem of main fixture as
shown.
Note: The decorative leaves must be staggered.
4. Secure the top loop to the nipple.
5. Choose the length of the chain you need, then weave the
fixture wire and the fixture grounding wire through the chain,
collar, decorative leaf and canopy.
Stem
Decorative Leaf (M)
Decorative Leaf (M)
Rod
Decorative Leaf-1
Finial (R)
Nipple-1 (P)
Coupling
Hex Nut (O)
Decorative Leaf-1 (N)
Cap (Q)
Parts Number (5028AA)
Hex Nut (O)
Nipple-1(P)
Cap (Q)
Decorative Leaf-1 (N)(X2)
Finial(R)
Parts Number (5024BB)
Ball Nut (R) (X2)
