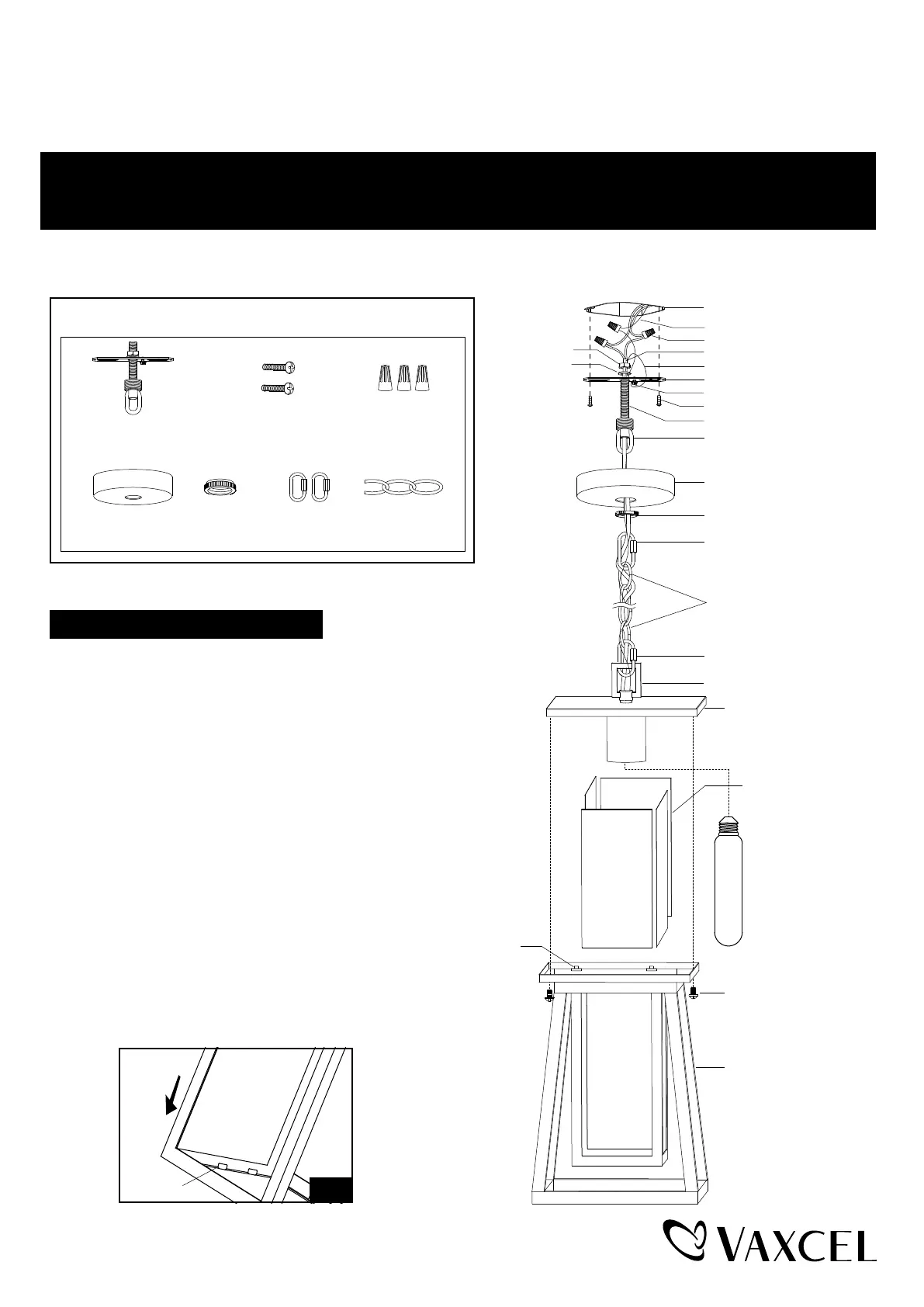

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
1. Attach the mounting strap unit (A) to the outlet box by using
two mounting screws (B).
2. Choose the length of the chain (G) you need,
then weave the fixture wire and the fixture
grounding wire through the chain (G), collar (E)
and canopy (D).
3. Connect one end of the chain (G) with the loop by
using a loop lock (F).
4. Connect the other end of the chain (G) with the
top loop by using another loop lock (F).
5. Unscrew the two set screws and remove the metal frame
from the fixture.
6. Take a glass panel and gently slide it into the metal frame bottom
notch in place, secure it by pressing two clips on top side of the
metal frame. Repeat with the other glass panels. (See Fig.1)
Turn off the power at fuse or circuit
box.
Installation Steps
210311
Glass Panel
Bottom Notch
Fig.1
T0609
Mounting Strap Unit (A)Wire Connector (C)
Collar (E)
Mounting Screw (B)
Canopy (D)
Loop Lock (F)
Chain (G)
Hardware Package(inculded):
WARNING:
TO AL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Fixture
Glass Panel
Set Screw
Clip
Metal Frame
Outlet Box
Housing Grounding Wire
Wire Connector (C)
Fixture Wire
Fixture Grounding Wire
Mounting Strap Unit (A)
Green Grounding Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Canopy (D)
Loop Lock (F)
Loop Lock (F)
Collar (E)
Chain (G)
Loop
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ
AND SAVE THESE INSTRUCTIONS.
Max.60W
Type T10 Bulb
(not included)
