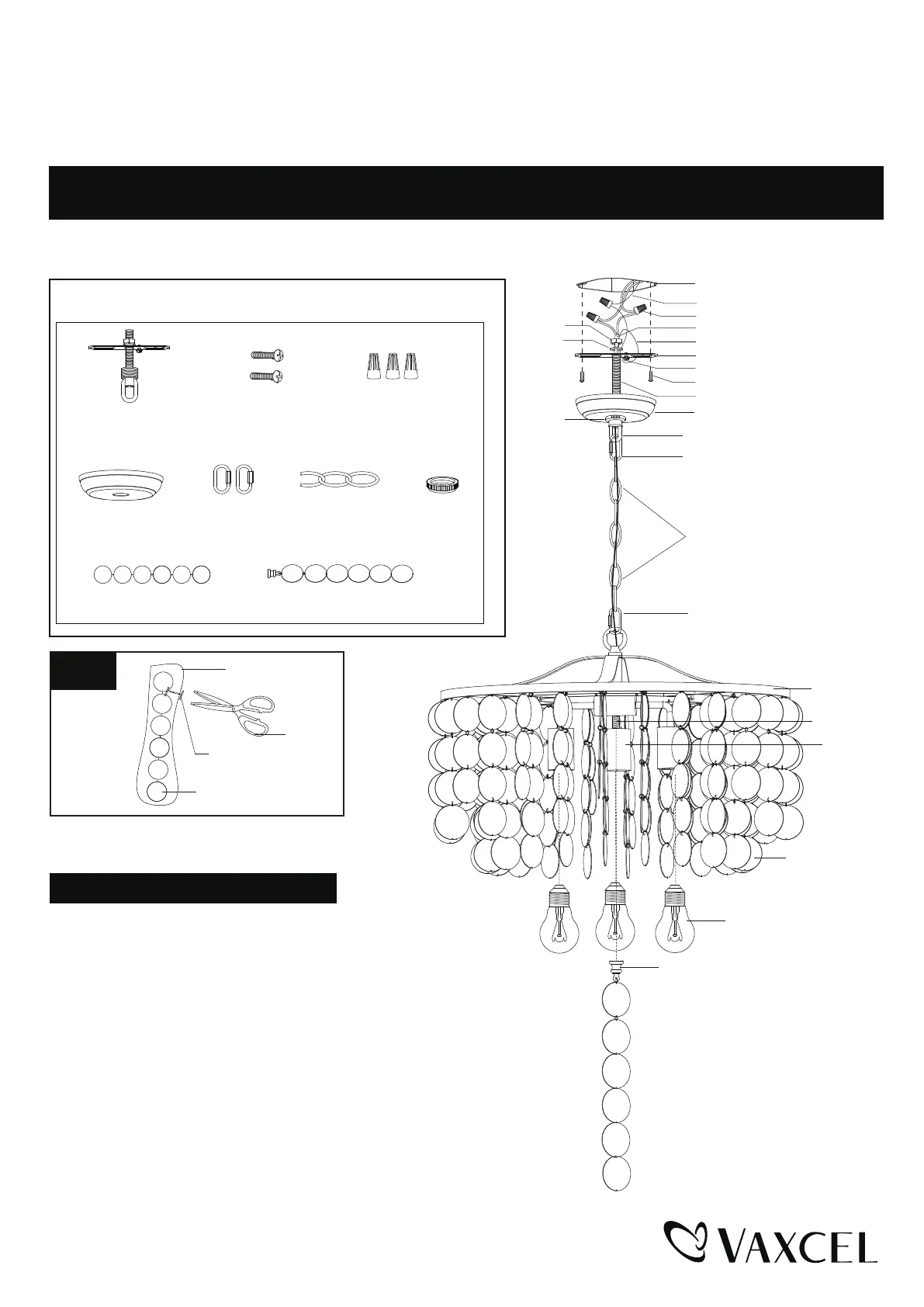

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0394
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Pure Shell (H) Finial (I)
1. Cut the "H" plastic buckles with scissor when take
down the PE bags. (See Fig.1)
2. Screw the finial (I) to the stem of the fixture.
3. Attach the mounting strap unit (A) to the outlet box by using two
mounting screws (B).
4. Choose the length of the chain (F) you need, then weave the
fixture wire and the fixture ground wire through the chain (F) ,
collar (G) and canopy (D).
5. Connect the chain (F) to the loop and the top loop on mounting
strap unit (A) with two quick links (E).
6. Thread the fixture wire and fixture ground wire through the top loop,
threaded pipe of the mounting strap unit (A).
Mounting Strap Unit (A)Wire Connector (C)Mounting Screw (B)
Canopy (D)
Quick
Link (E)
Chain (F)
Collar (G)
Pure Shell
PE Bag
Scissor
“H”Plastic Buckle
Fig.
1
Fixture
Pure Shell (H)
Socket
Stem
Max.60W Type A Bulb
(not included)
Finial (I)
Quick Link
(E)
Quick Link
(E)
Chain (F)
Canopy
(D)
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Collar (G)
Page 1 / 2
230213
