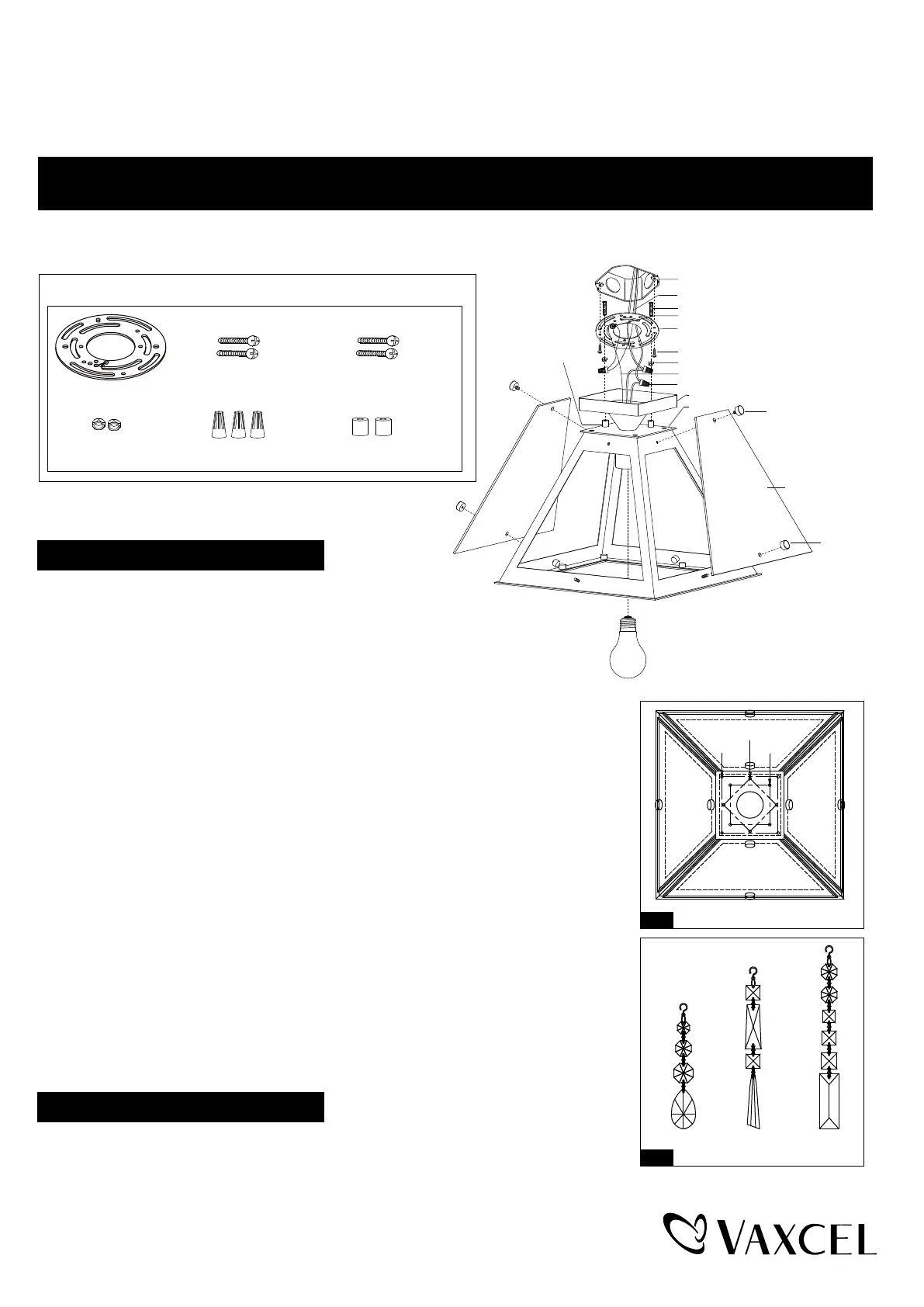

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

C0240

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Turn on the power at fuse or circuit box.

Installation Steps

Mounting Screw (B)

Wire Connector (E)

Fixture Mounting Screw (C)

Lock Nut (D)

Ball Nut (F)

Mounting plate (A)

1. Attach two fixture mounting screws

(C) to the

mounting plate (A), then secure it with two

lock nuts (D). Adjust the length of the fixture

mounting screws (C) if necessary.

2. Attach the mounting plate (A) to the outlet box

using two mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire connections using wire

connector (E) as follows:

---Connect the black wire from the fixture to the black wire from the power source.

---Connect the white wire from the fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting plate (A) with the green ground

screw, then connect it to the house ground wire with a wire connector (E).

Carefully put the wires back into the outlet box.

4. Install the crystal drops A , crystal drops B and crystal drops C as shown in

diagram. (See Fig.1 and Fig.2)

5. Attach 4pcs glass panels to fixture and lock it with set screws 1 for upper side

and set screws 2 for bottom side.

6. Install the bulbs (not included). Check relamping label at socket area or packaging

for maximum wattage allowed .

7. Attach the canopy onto the outlet and tighten it with two ball nuts (F).

A x 4

B x 4

C x 4

Fig.1

Fig.2

ABC

Glass Panel

Set Screw 2

Ball Nut (F)

Set Screw 1

Fixture

Canopy

Medium Base Bulb

Max.60W (not included)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw (C)

Wire Connector (E)

Mounting Plate (A)

Green Ground Screw (E)

Mounting Screw (B)

Lock Nut (D)

Outlet Box
