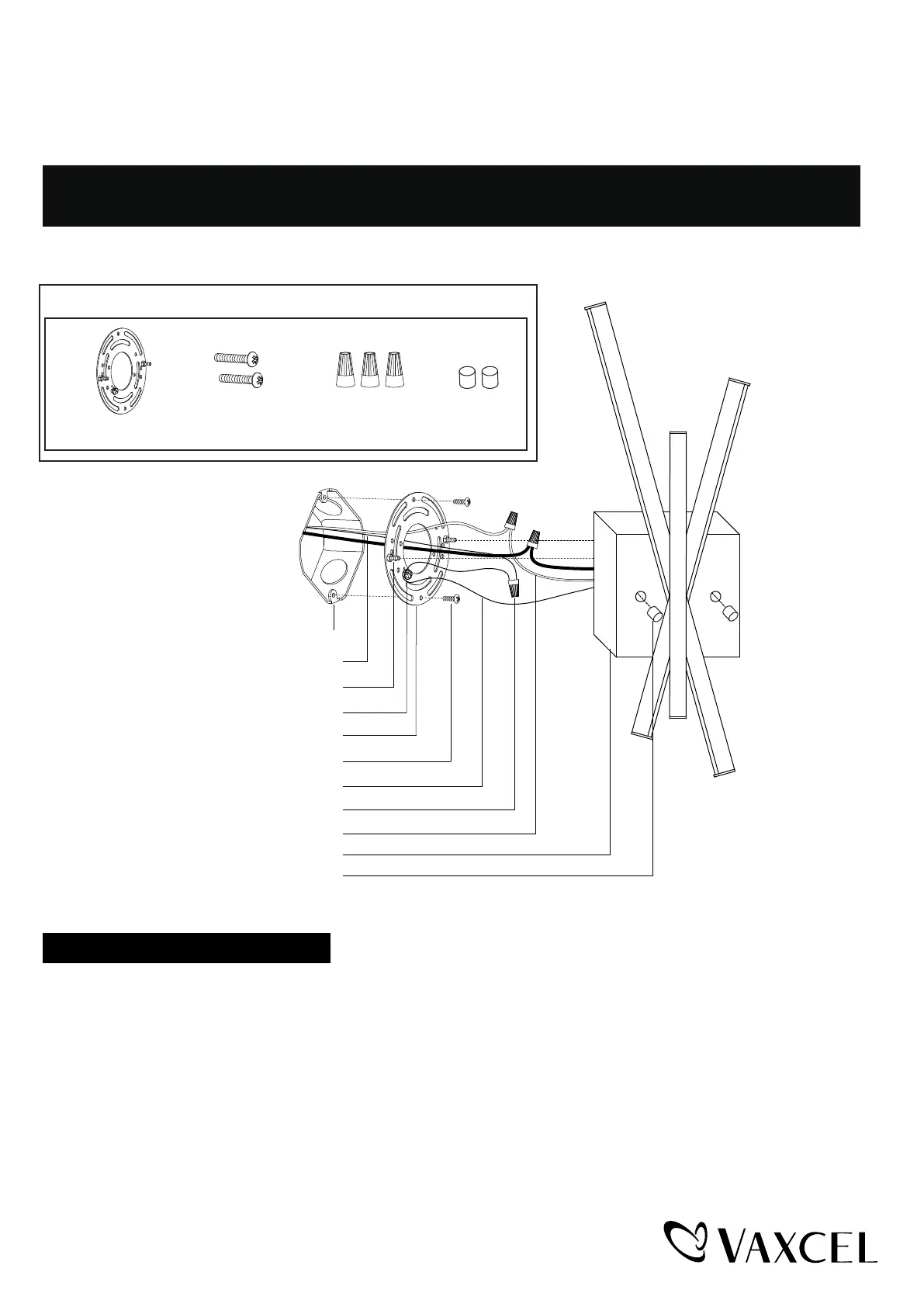

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0459 / W0460

Turn off the power at fuse or circuit box

Installation Steps

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

Page 1 / 2

Mounting Plate Unit (A)

Wire Connector (C)

Mounting Screw (B)

Bolt Nut (D)

Hardware Package (included):

1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.

2. Attach mounting plate unit (A) to the outlet box using two mounting screws (B). Adjust the length of the

preinstalled fixture mounting screws if necessary.

Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.

3. Pull out the wires and ground wire from the outlet box. Make wire connections using the wire connectors (C) as follows:

---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw,

then connect it to the house ground wire with the wire connector (C).

Carefully put the wires back into the outlet box.

231115

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Fixture Mounting Screw

Mounting Plate Unit (A)

Fixture Wire

Backplate

Bolt Nut (D)

Fixture Ground Wire
