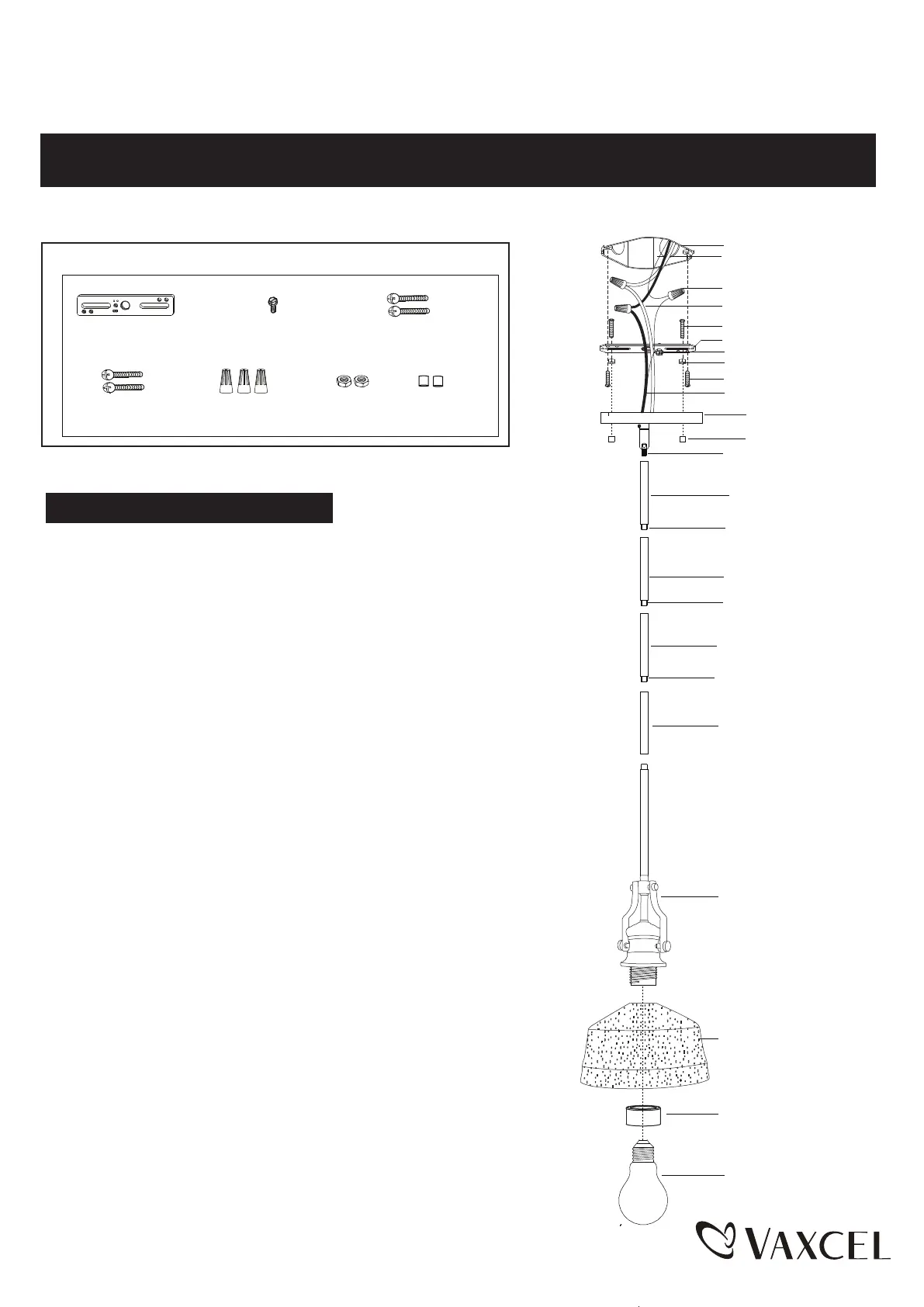

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.READ AND SAVE THIS INSTRUCTION.
P0357
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (C)
Lock Nut (F)Wire Connector (E)
Mounting Strap (A)
Fixture Mounting
Screw (D)
Green Ground Screw (B)
Canopy Kit
Outlet Box
House Ground Wire
Wire Connector (E)
Lock Nut(F)
Mounting Strap (A)
Green Ground Screw (B)
Mounting Screw (C)
Upper Rod
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture Wire
Fixture Mounting Screw(D)
Fixture Ground Wire
Fixture
Glass Shade
Socket Ring
Set Threaded Pipe
Bolt Nut(G)
Bolt Nut (G)
1. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the fixture middle rod, and then secure
the middle rod onto to lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustble from 17" to 59". Use fewer rods if shorter
length is desired.
2. Thread the fixture wire through the canopy kit, then secure the rod
assembly to the set threaded pipe of the canopy kit.
3. Thread two fixture mounting screws (D) through the mounting strap (A),
and then secure with two lock nuts (F), adjust the length of the fixture
mounting screws (D) if necessary.
4. Attach the mounting strap (A) to the outlet box by using two mounting
screws (C).
5. Pull out the source wires from the outlet box.
Make wire connections using wire connector
(E)
as follows:
--- Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
--- Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
--- Attach the fixture ground wire to the mounting strap
(A)
with the
green ground screw
(B)
, then connect it to the house grond wire
with a wire connector
(E)
.
Carefully put the wires back into the outlet box.
6. Attach the canopy kit to the mounting strap
(A)
by inserting the fixture
mounting screws
(D)
, then secure it with two bolt nuts
(G)
.
7. Attach the glass shade to fixture, then secure it with the socket ring.
210203
Max 60W Medium base bulb
(not included)
