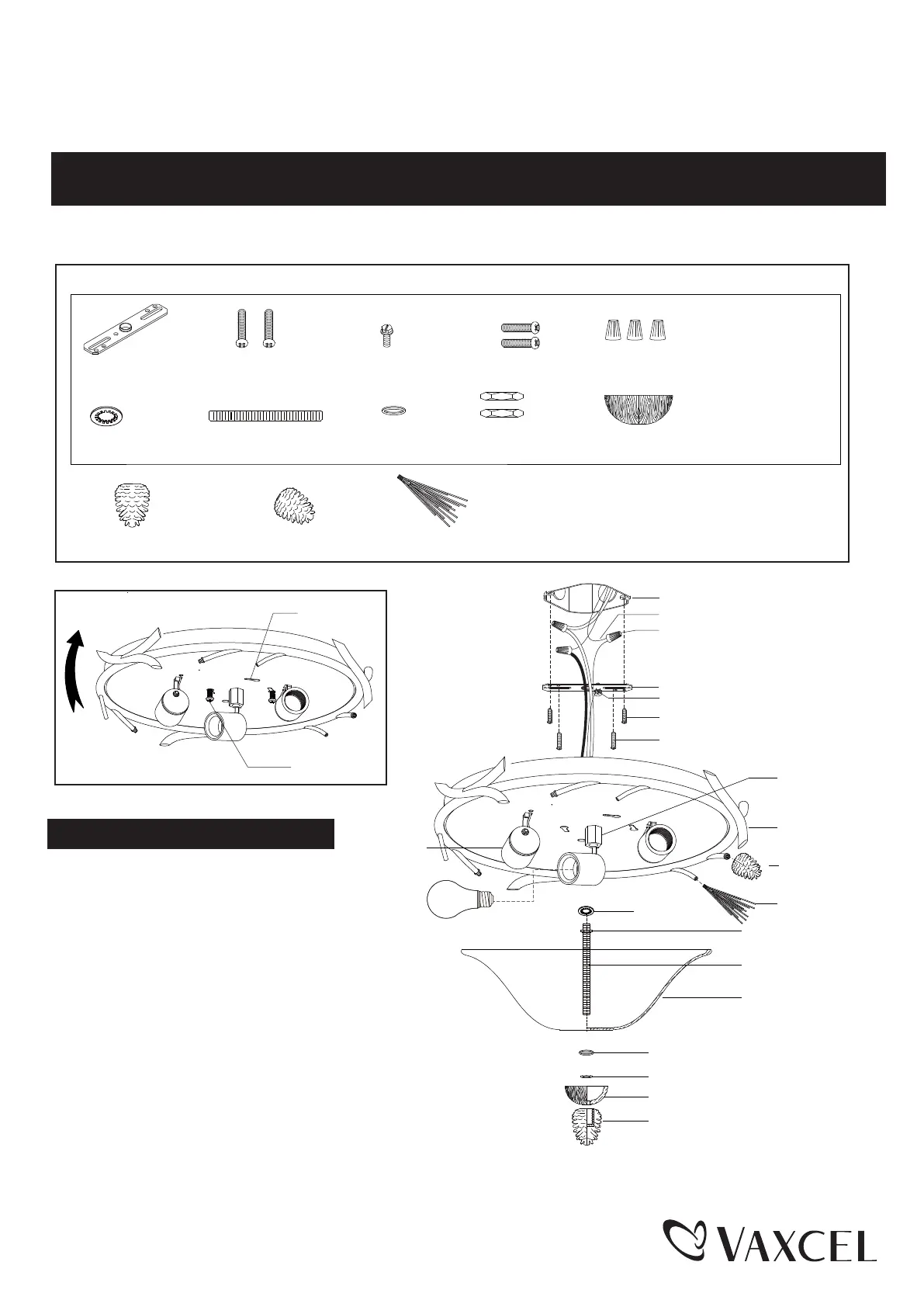

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0120
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
160628
Mounting Strap (A)
Decorative Cover (J)
Pine Cone (K)1pc
Small Pine Cone (L)3pcs Pine Needle (M)3pcs
Washer (F)
Threaded Pipe (G)
Green Grounding (C)
Long Screw (D)
Mounting Screw (B)
Wire Nut (E)
Hex Nut (I)
Fig.1
Long Screw (D)
Key Hole Slot
Installation Steps
Outlet Box
House Grounding Wire
Wire Nut (E)
Long Screw (D)
Ceiling Pan
Coupling
Small Pine Cone (L)
Pine Needle (M)
Hex Nut (I)
Threaded Pipe (G)
Glass Shade
Washer (F)
Socket
Metal Pad (H)
Hex Nut (I)
Decorative Cover (J)
Pine Cone (K)
Mounting Strap (A)
Green Grounding Screw (C)
Mounting Screw (B)
Metal Pad (H)
1. Attach the two long screws to the holes on the
mounting strap. Thread them in part way: 2 to
3 turns only.
2. Attach the mounting strap to the outlet box
using two mounting screws.
3. Pull out the source wires from the outlet box.
Make wire connections using wire nuts as
follows:
---Connect the hot wire (usually black insulation) from
the power source to the black wire from the fixture.
---Connect the neutral wire (usually white insulation) from
the power source to the white wire from the fixture.
---Attach the fixture grounding wire (usually green insulation
or bare wire) to the mounting strap with the green grounding
screw, or connect to the source grounding wire if available.
Carefully put the wires back into the outlet box.
Bulb Type A Max.40W
(not included)
