Back Plate
Mounting Screw (B)
Green Grounding
Screw (E)
Wire Connector (F)
170908
Page 1
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0200 / W0201 / W0261
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Lock Nut
(D)
Headless Screw (C)
Ball Nut (G)
1. Thread two headless screws through the cross bar, then secure them with four lock nuts (two on each side of the
cross bar). Adjust the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up horizontally to make the fixture level.
2. Attach the cross bar to the outlet box by using two mounting screws.
Socket Ring
Shade
Bulb Type A Max.60W
(not included)
Socket
Holder
Turn off the power at fuse or circuit box.
Ball Nut (G)

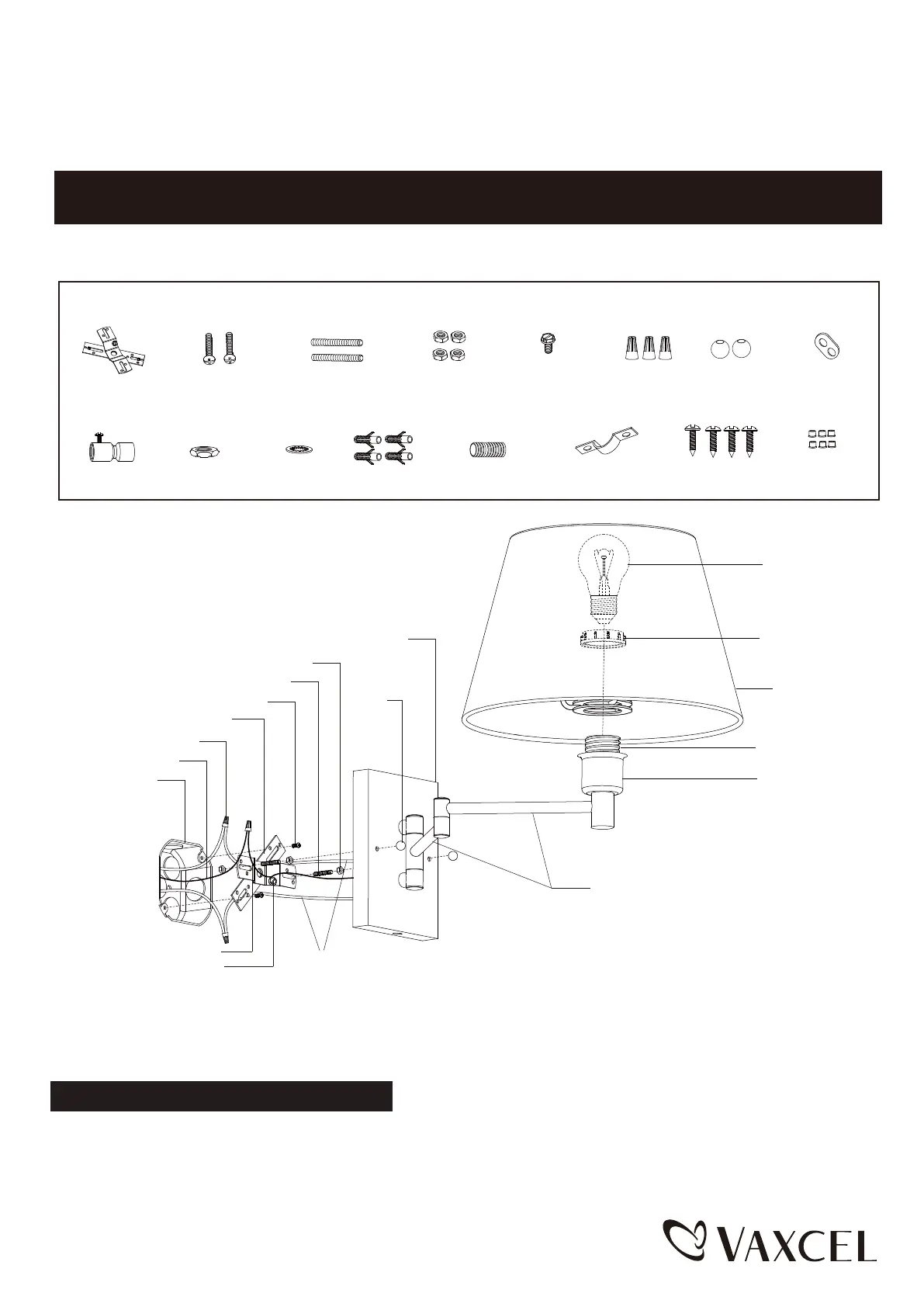

This FIXTURE can be mounted in two ways.
Option 1:(Hard Wire Installation)
Assembly Instructions:
Strain Relief (H)
Pipe Strap (N)
Dry Wall Screw (O)
Bushing (P)
Anchor (L)
Hex Nut (J)
Washer (K)
Threaded Pipe (M)
Outlet Box
Wire Connector (F)
Green Grounding Screw (E)
Headless Screw (C)
Cross Bar(A)
Mounting Screw (B)
Lock Nut(D)
Fixture Grounding Wire
House Grounding Wire
Fixture Wire
Swivel (I)
Rocker Arm
Cross Bar(A)
