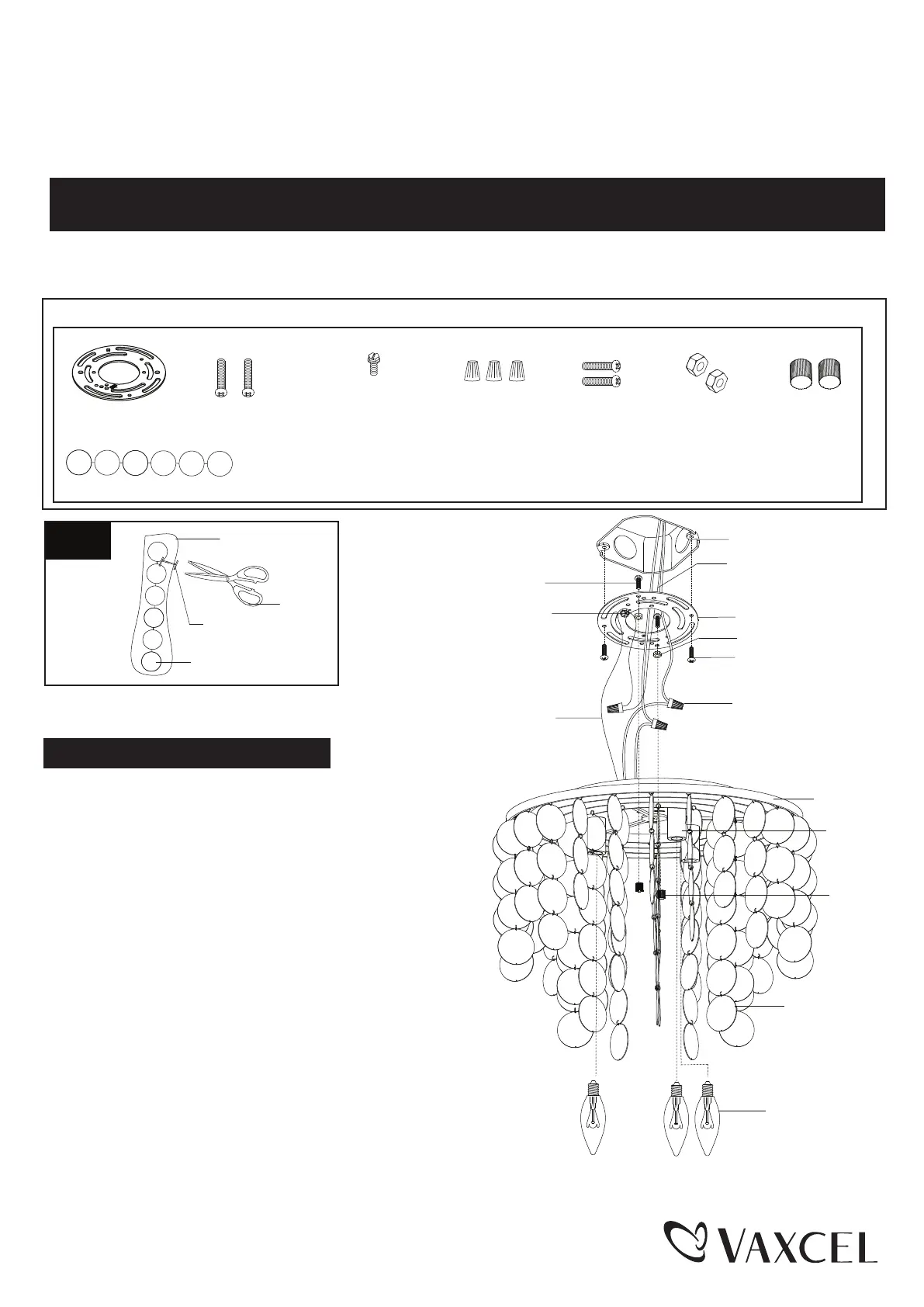

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

C0079

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box.

or circuit

box.

Mounting Plate (A)

Green Ground

Screw (C)

Fixture Mounting

Screw(E)

Ball Nut(G)

Mounting Screw (B)

Wire Connector (D)

Lock Nut (F)

Outlet Box

House Ground Wire

Fixture Ground

Wire

Wire Connector (D)

Fixture Mounting

Screw (E)

Fixture

Socket

Mounting Plate (A)

Green Ground

Screw (C)

Mounting Screw (B)

Pure Shell(H)

Pure Shell(H)

Lock nut (F)

Bolt nut(G)

1.Cut the “H” plastic buckles with scissor when take down

the PE bags. (See Fig.1)

2. Remove the mounting plate from fixture by unscrewing

two ball nuts.

3. Attach the mounting plate to the outlet box by using

two mounting screws.

4. Pull out the source wires from the outlet box. Make

wire connections using wire connectors as follows:

---Connect the hot wire (black insulation) from

the fixture to the black wire from the power source.

---Connect the neutral wire (white insulation) from

the fixture to the white wire from the power source.

---Attach the fixture ground wire (bare wire) to the

plate with the green ground screw. Then connect it

to the house ground wire with the wire connector.

Carefully put the wires back into the outlet box.

5. Attach the fixture to the mounting plate by inserting two

mounting screws into the holes, then tighten the fixture

by screwing the bolt nuts into the fixture mounting screw.

Bulb Type B Max.60W

(not included)

Installation Steps

Pure Shell

PE Bag

Scissor

“H”Plastic Buckle

Fig.

1

Page 1 / 2

240628
