ASSEMBLY AND INSTALLATION

INSTRUCTIONS

1. Attach the mounting strap unit (A) to the outlet box by using

two mounting screws (B).

2. Choose the length of the chain (G) you need,

then weave the fixture wire and the fixture

grounding wire through the chain (G), collar (E)

and canopy (D).

3. Connect one end of the chain (G) with the loop by

using a loop lock (F).

4. Connect the other end of the chain (G) with the

top loop by using another loop lock (F).

5. Thread the fixture wire and fixture grounding wire

through the top loop, threaded pipe and

mounting strap unit (A).

6. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (usually black insulation) from the fixture

to the black wire from the power source.

• Connect the neutral wire (usually white insulation) from the fixture

to the white wire from the power source.

• Attach the fixture grounding wire (usually green insulation or bare wire)

to the mounting strap unit (A) with the green grounding screw. Then,

depending on local code, connect it to the house grounding wire with

the wire connector (C).

Carefully put all of the wires back into the outlet box.

Turn off the power at fuse or circuit

box.

Installation Steps

201013

T0590

Mounting Strap Unit (A)Wire Connector (C)

Collar (E)

Mounting Screw (B)

Canopy (D)

Loop Lock (F)

Chain (G)

Hardware Package(inculded):

WARNING:

TO AL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

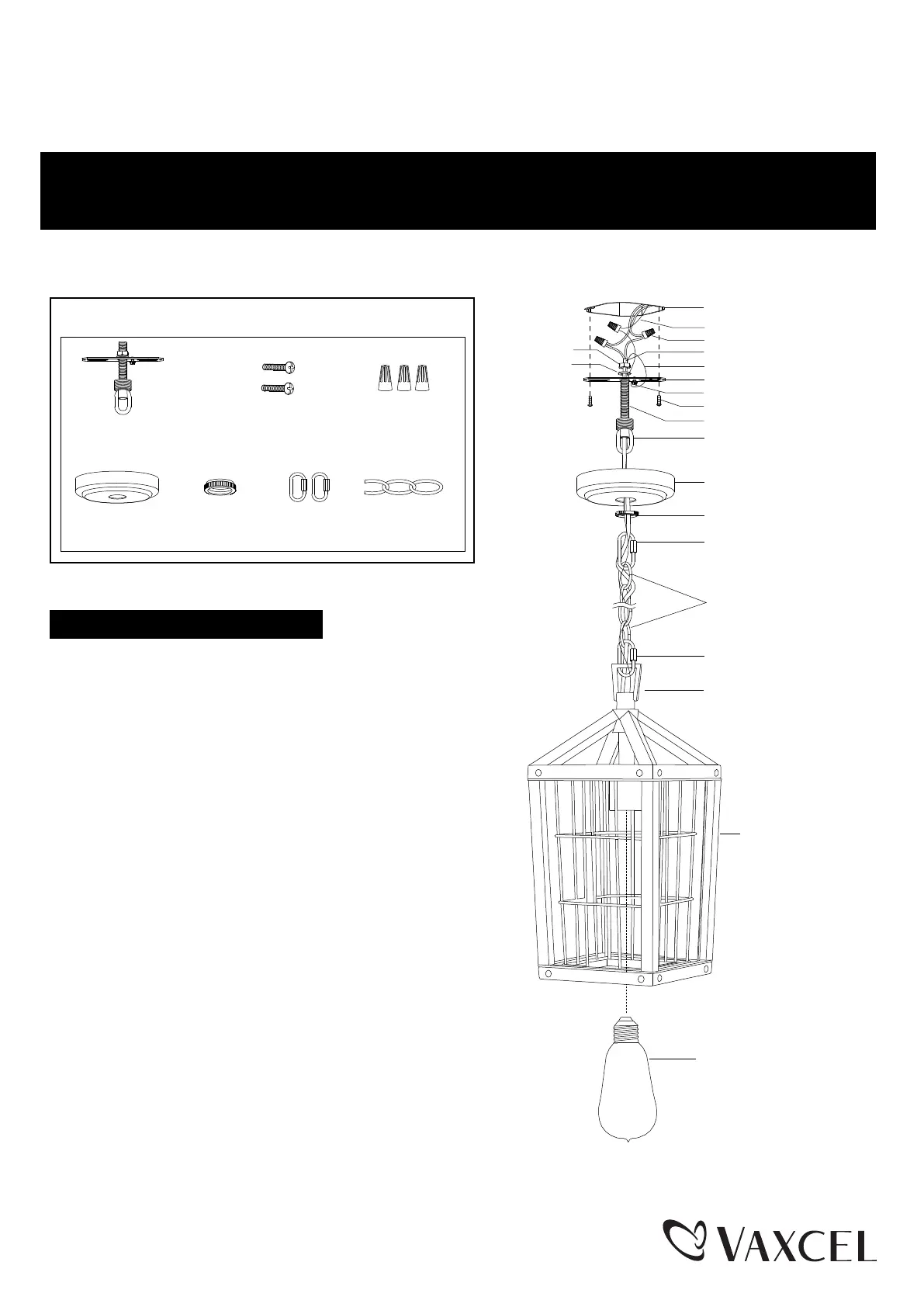

Fixture

Outlet Box

Housing Grounding Wire

Wire Connector (C)

Fixture Wire

Fixture Grounding Wire

Mounting Strap Unit (A)

Green Grounding Screw

Mounting Screw (B)

Threaded Pipe

Hex Nut

Washer

Top Loop

Canopy (D)

Loop Lock (F)

Loop Lock (F)

Collar (E)

Chain (G)

Loop

Max.60W Type Vintage Bulb

(not included)

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ

AND SAVE THESE INSTRUCTIONS.
