200907

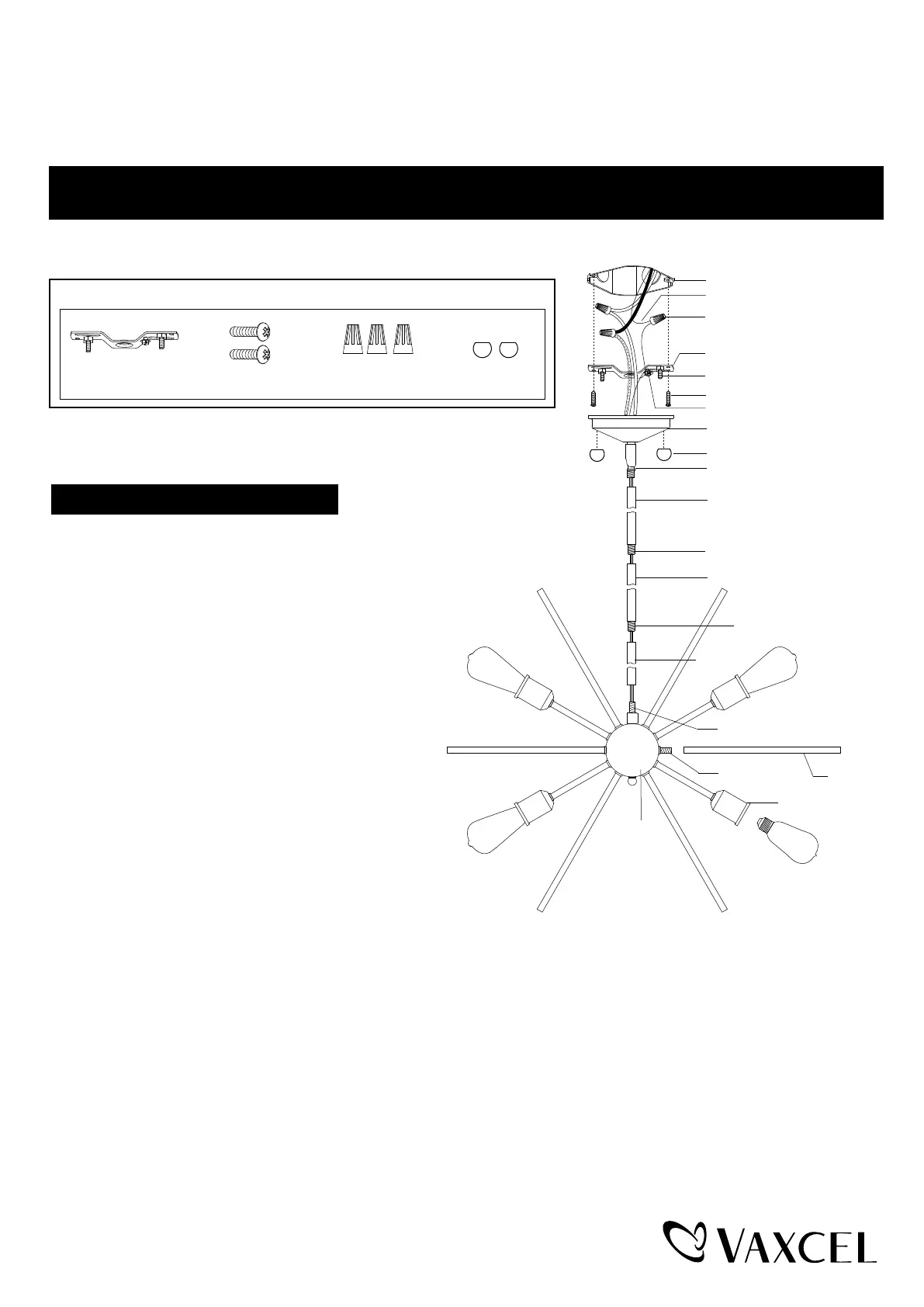

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0343

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

1. Attach mounting strap unit (A) to outlet box

using two mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire from the fixture through the

lower rod, and then secure the lower rod onto fixture

using the threaded pipe.

b. Thread the fixture wire through the middle rod, and

then secure the middle rod onto the lower rod using

the threaded pipe.

c. Thread the fixture wire through the upper rod, and

then secure the upper rod onto the middle rod using

the threaded pipe.

Note: Length adjustable from 27-1/2" to

75". Use fewer rods if shorter length is

desired.

3. Thread the fixture wire through coupling kit, canopy,

then secure the rod assembly to the coupling kit.

4. Screw 12 long rods to the other threaded pipes of fixture.

5. Pull out the source wires from the outlet box. Make wire connections using wire connectors

(C)

as follows:

---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting strap unit

(A)

with the green ground screw, then connect it to

the house ground wire with a wire connector

(C).

Carefully put the wires back into the outlet box.

6. Attach the canopy to the mounting strap unit (A), then secure it with two bolt nuts (D).

7. Install bulbs (not included). See relamping label at socket area or packaging for maximum wattage allowed .

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Strap Unit (A)

Long Rod

Socket

Fixture

Threaded Pipe

Threaded Pipe

Threaded Pipe

Threaded Pipe

Bolt Nut (D)

Canopy

Coupling Kit

Vintage Bulb

Max.60W

(not included)

Outlet Box

House Grounding Wire

Wire Connector (C)

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)

Upper Rod

Middle Rod

Lower Rod
