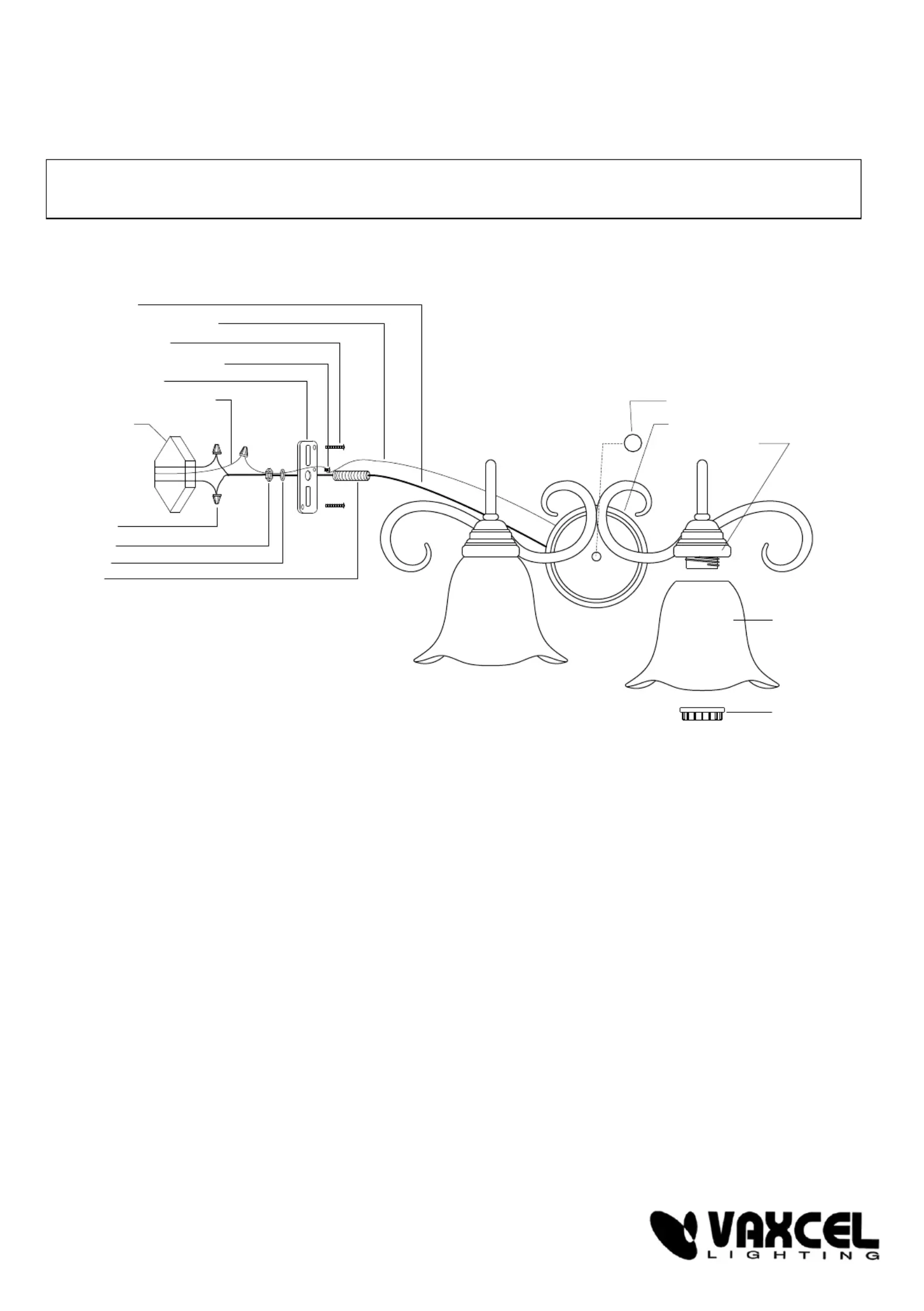

Outlet Box

Wire Nut

Mounting Screw

Mounting Strap

Green Grounding Screw

House Grounding Wire

Fixture Grounding Wire

Fixture Wire

Hex Nut

Washer

Nipple

070309

1. Attach the nipple to the mounting strap, then secure it with a washer and hex nut.

2. Attach the mounting strap to the outlet box by using two mounting screws.

3. Pull out the outlet wires and house grounding wire from the outlet box. Make wire

connections with wire nuts:

---The black wire from the light to the black wire from the power source.

---The white wire from the light to the white wire from the power source.

---Attach the fixture grounding wire to the mounting strap with the green grounding

screw. Then connect it to the house grounding wire with a wire nut.

Carefully tuck the wires back into the outlet box.

4. Attach the back plate to the mounting strap by inserting the nipple, then secure it

with a end cap.

5. Attach the glass shades to the glass holders, then secure them with the socket rings.

6. Install bulbs (not included). See relamping label at socket area or packaging for

maximum allowed wattage.

7. Turn on the power at the main fuse or circuit breaker box.

End Cap

Back Plate

Glass Holder

Glass Shade

Socket Ring

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

BL-VLD002 / VLD003 / VLD004
