ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
CR-VLU001
1. Thread two headless screws through the mounting plate, then secure them with four lock
nuts (two on each side of the mounting plate). Adjust the length of the headless screws if
necessary.
Note: Make sure that the headless screws are lined up horizontally, to ensure that the
fixture will be level.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire
connections using the wire nuts:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting plate with the green grounding screw.
Then connect it to the house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting plate by inserting the headless screws, then secure
it with two bolt nuts.
5. Attach the glass shade onto the glass holder and secure it with the socket ring.
6. Install a bulb (not included). See relamping label at socket area or packaging for maximum
allowed wattage.
7. Turn on the power at the main fuse or circuit breaker box.
Bulb Type A15 Max.60W
(not included)
100406

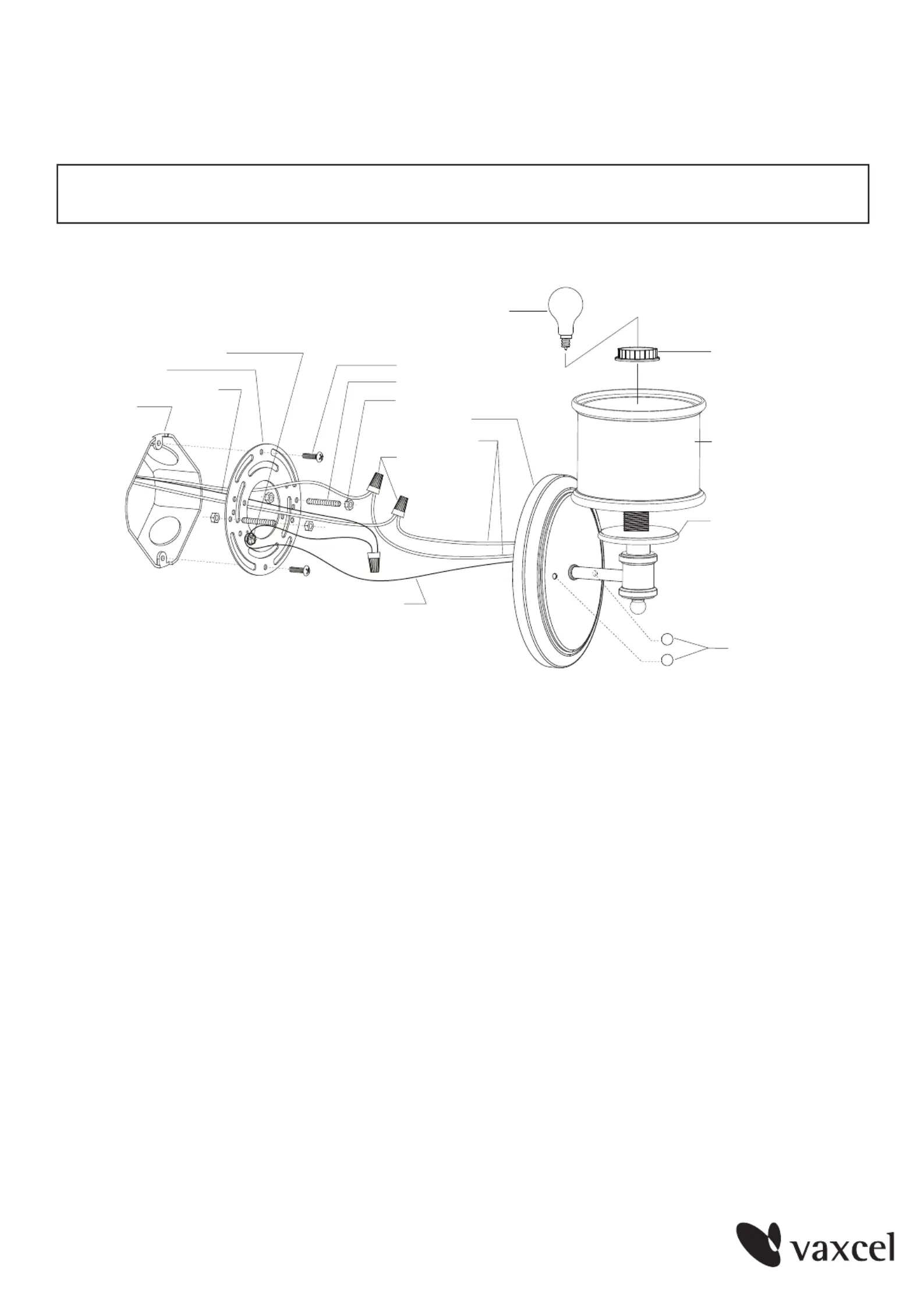

House Grounding Wire
Green Grounding Screw
Fixture Grounding Wire
Wire Nut
Mounting Screw
Headless Screw
Mounting Plate
Outlet Box
Fixture Wire
Lock Nut
Back Plate
Bolt Nut
Glass Shade
Glass Holder
Socket Ring
