ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0287

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

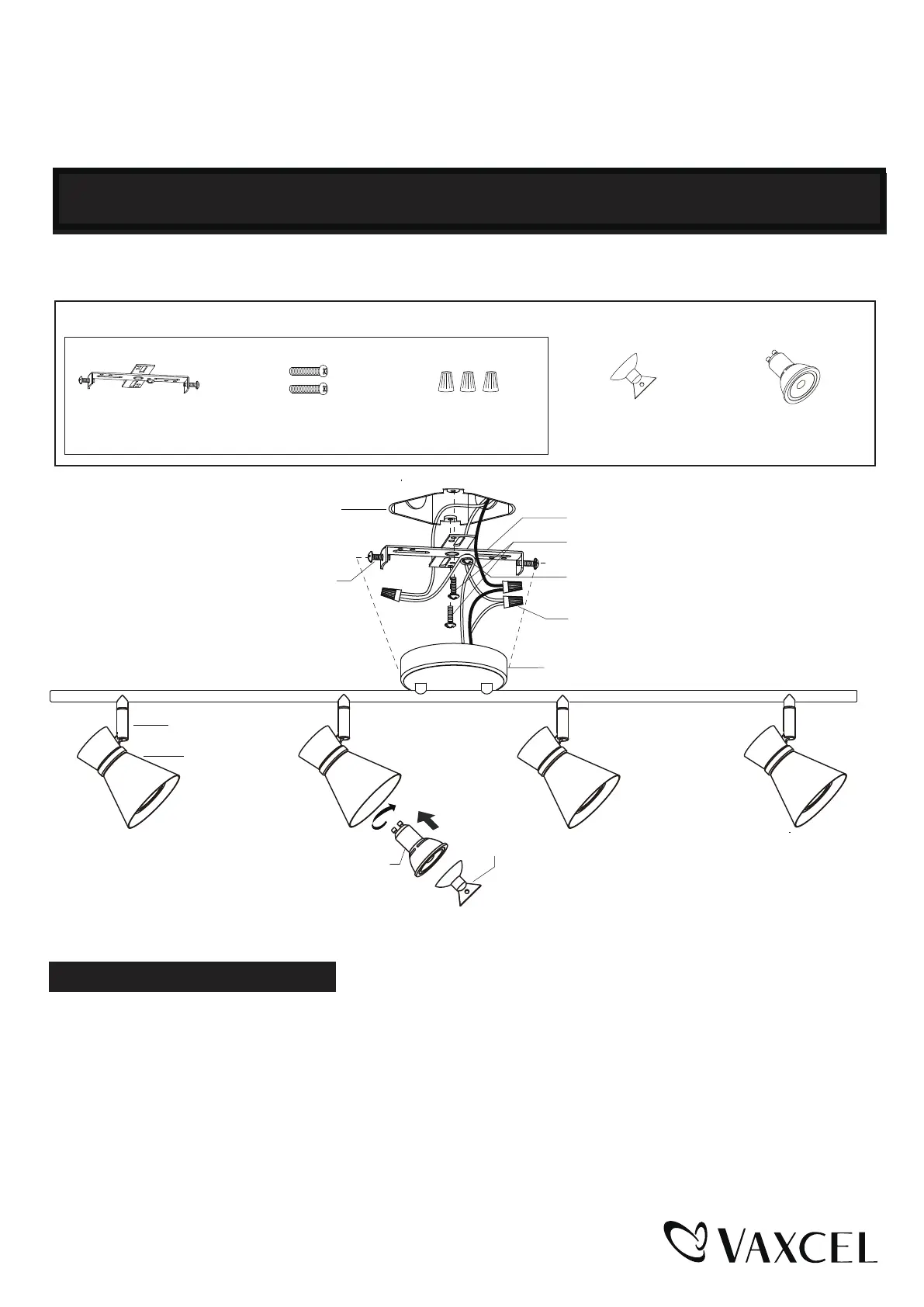

Hardware Package (included):

Cross Bar (A)

Mounting Screw (B)

Wire Connector (C)

Removal Sucker (D)

Removal Sucker (D)

GU10 LED Bulb

Max. 6.5W X 4 (E)

GU10 LED Max. 6.5W (E)

(included)

Swivel

Light Head

Canopy

Outlet Box

Set Screw

Mounting Screw (B)

Wire Connector (C)

Cross Bar (A)

Green Ground Screw

1. Attach the cross bar (A) to the outlet box by using two mounting screws (B).

2. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections by using the wire

connectors (C) as follows:

---Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.

---Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.

---Attach the fixture ground wire to the cross bar (A) with the green ground screw, then connect it to

the house ground wire with a wire connector (C).

Carefully put the wires back into the outlet box.

Turn off the power at fuse or circuit box

Installation Steps
