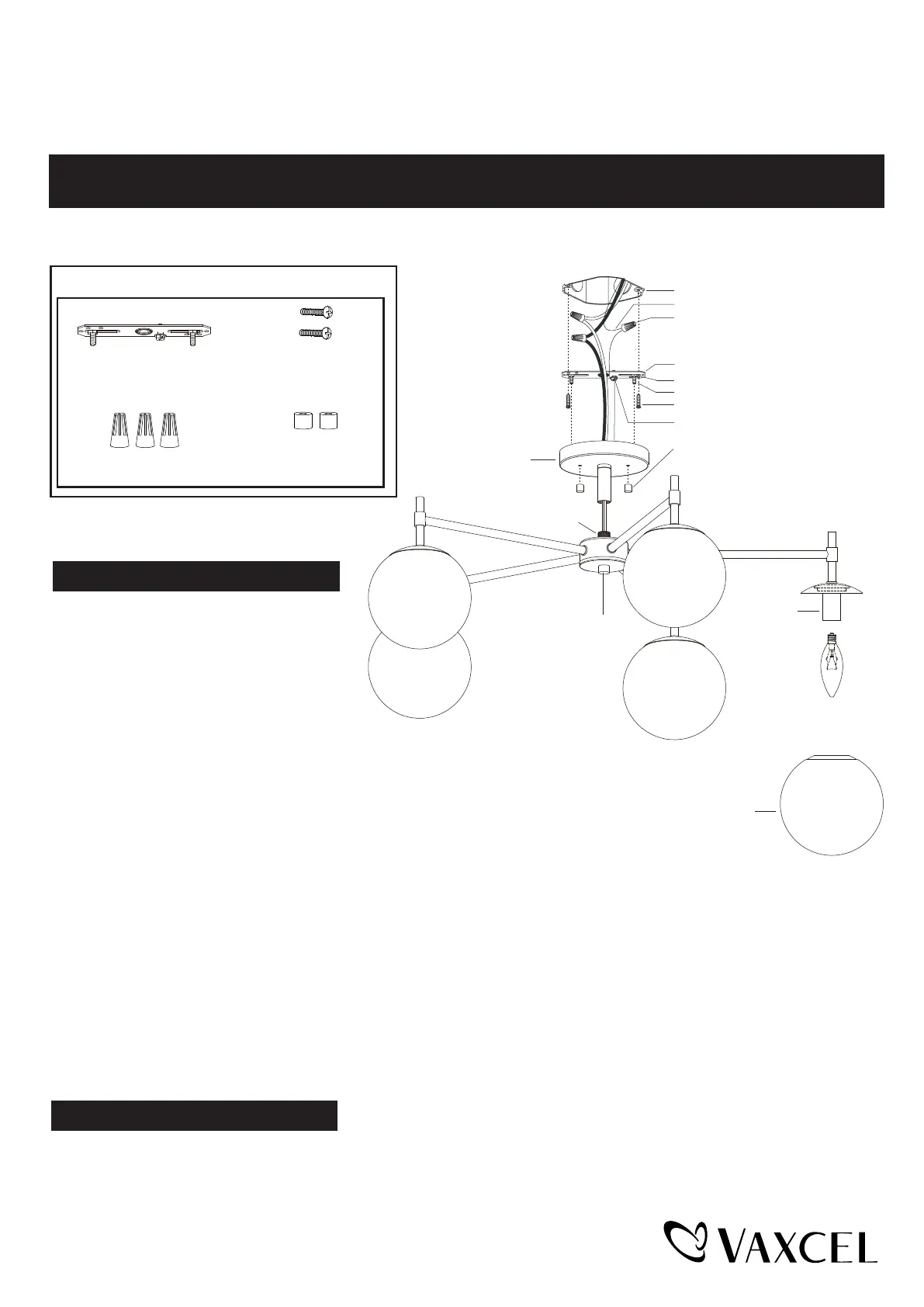

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Bolt Nut (D)
Canopy
Socket
Max. 40W
Glass Shade
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
C0297
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Candelabra Bulb
(not included)
Page 1 / 2
230616
Coupling
Turn on the power at fuse or circuit box
1. Thread the fixture wire through the canopy,
then secure the fixture to the canopy with
coupling.
2
. Attach the mounting strap unit (A) to the
outlet box by using two mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire connections using
wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire
from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white
wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with
green ground screw, then depending on local code, connect it to the house
ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the canopy to the mounting
strap
unit (A) by inserting the fixture mounting screws, then secure it with
two bolt nuts (D).
5. Install 5 x 40W Max. candelabra base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
6. Attach the glass shades onto the sockets and tighten them.
Turn off the power at fuse or circuit box
Installation Steps
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting Strap Unit (A)
Bolt Nut (D)
Fixture
