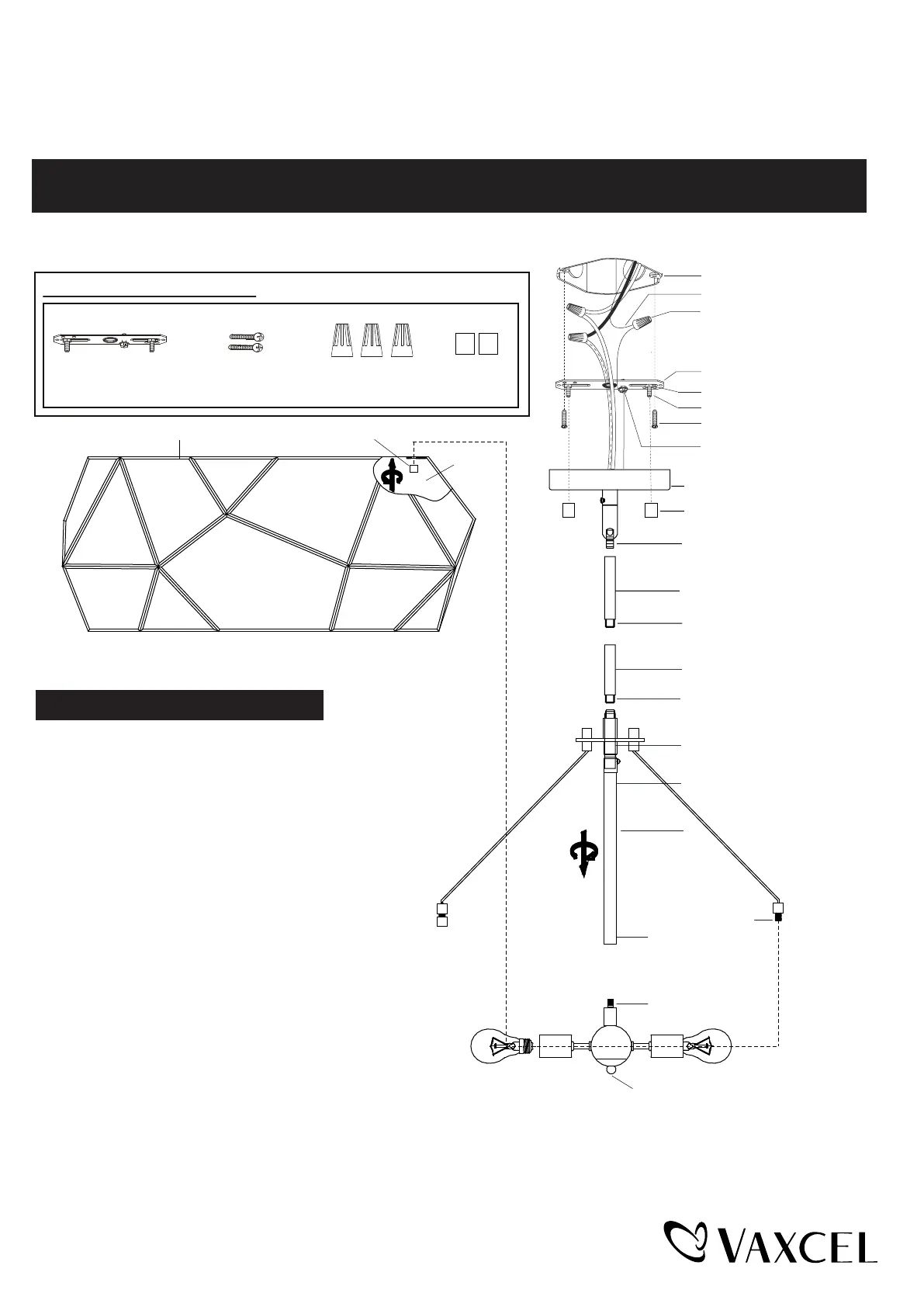

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
P0393
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Strap Unit (A)
Mounting Screw (B)Wire Connector (C)
Bolt Nut (D)
Threaded Pipe
Fixture Canopy
Bolt Nut (F)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
OutletBox
HouseGround Wire
Wire Connector (C)
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Threaded Pipe
Plastic Screw
Center Rod
Threaded Pipe
Ring
Glass Shade
Fuse Bolt Nut
Fixture
Stud
Max.60W
Medium Base Bulb
(not included)
Turn off the power at fuse or circuit box
Installation Steps
1. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
2. Connect the center rod to the fixture by using the
threaded pipe.
3. Rod connections:
a. Thread the fixture wire from the fixture through the
lower rod, then secure the lower rod onto fixture
using the threaded pipe.
b. Thread the fixture wire through the middle rod, then
secure the middle rod onto the lower rod using the
threaded pipe.
c. Thread the fixture wire through the upper rod, then
secure the upper rod onto the middle rod using the
threaded pipe.
d. Thread the fixture wire through the canopy, then
secure the canopy onto the upper rod using the
threaded pipe.
Note: Length adjustable from 24-3/8″ to 66-3/8″
Use fewer rods if shorter length is desired.
Page 1 / 2
230303
