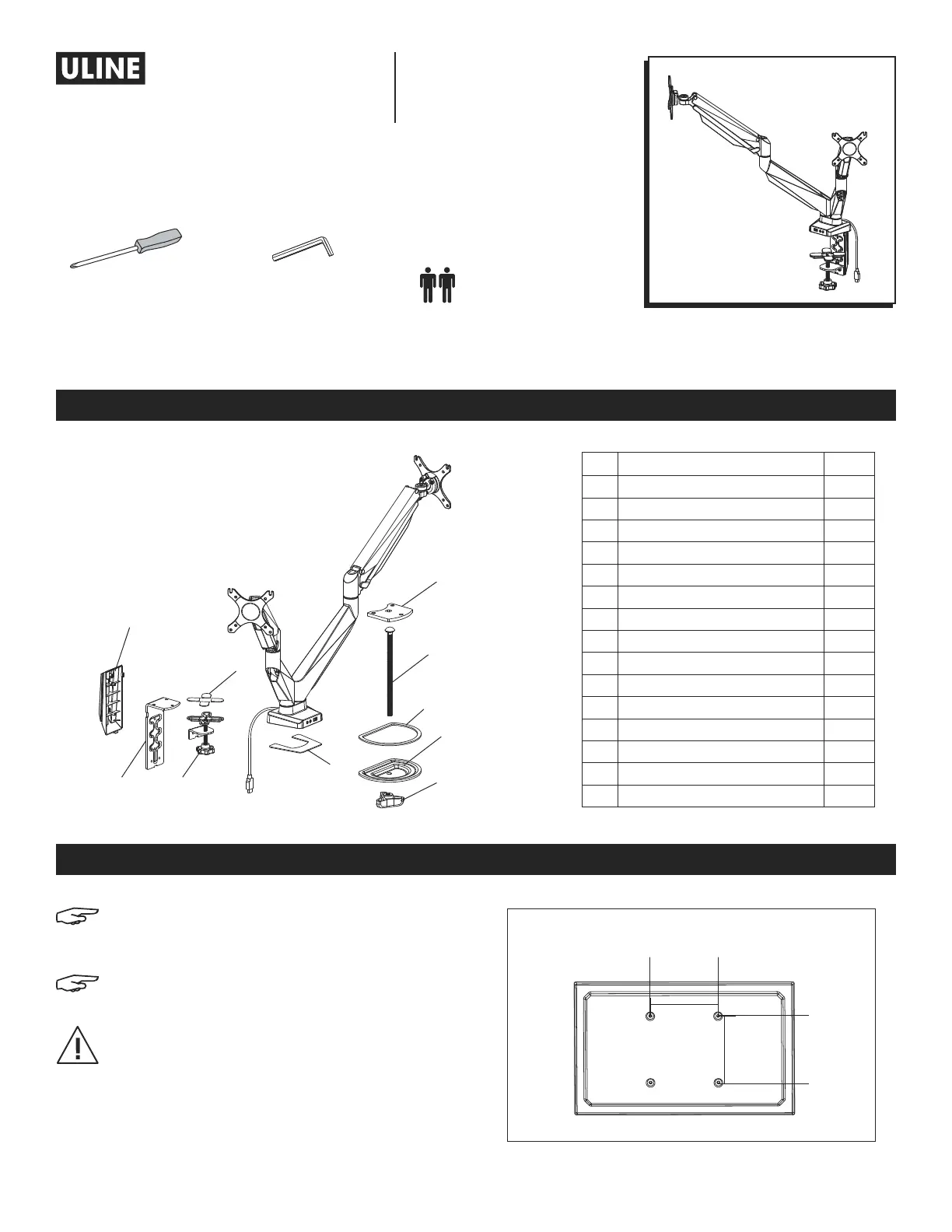

PAGE 1 OF 12 0521 IH-7621
1-800-295-5510
uline.com
DUAL MONITOR MOUNT –
EASY-ADJUST
H-7621
NOTE: Make sure the monitor has a VESA hole
pattern of 75 x 75 mm or 100 x 100 mm.
(See Figure 1)
NOTE: If the monitors are attached to fixed
bases, remove monitors from bases.
CAUTION! Be careful not to scratch the monitor
screen during installation.
PARTS
SETUP
#DESCRIPTIONQTY.
1Cable Clip1
2Clamp Mounting Bracket1
3Anti-Slip Foam for Clamp4
4Clamp1
5Anti-Slip Foam for Base1
6Grommet Mounting Plate1
7Grommet Bolt1
8Anti-Slip Foam for Bottom Support1
9Bottom Support1
10Knob1
AM4 x 12 mm Bolt (Not Shown)8
BM5 x 12 mm Bolt (Not Shown)8
CM6 x 12 mm Bolt (Not Shown)3
DM6 x 14 mm Bolt (Not Shown)2
EFlat Washer (Not Shown)16
TOOLS NEEDED
Phillips Screwdriver4 x 4 Allen Wrench (F)
5 x 5 Allen Wrench (G)
(included)
Figure 1
75 x 75 mm or
100 x 100 mm
75 x 75 mm or
100 x 100 mm
1
2
3
5
6
7
8
9
4
10
Two Person Assembly
Required
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
