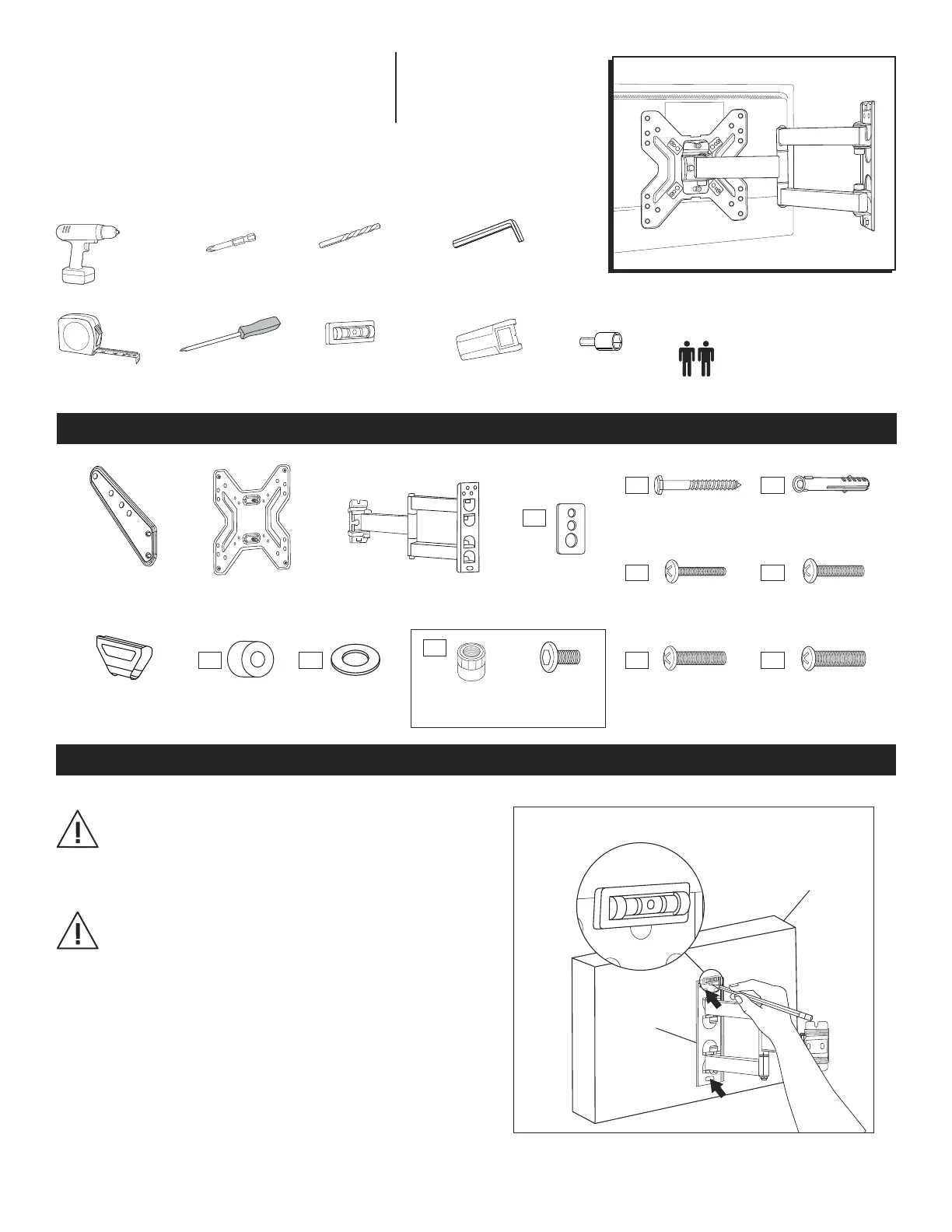

PAGE 1 OF 120223 IH-10161

H-10161

WALL MONITOR MOUNT –

17-50" FULL MOTION

1-800-295-5510

uline.com

π

TOOLS NEEDED

Electric

Drill

3/16" Drill Bit

3/8" Drill Bit

4 x 4 mm Allen Wrench

5 x 5 mm Allen Wrench

(included)

Magnetic Level

(included)

Stud Finder

Phillips

Screwdriver

Tape Measure

Phillips Head

Drill Bit

Two-Person Assembly

Recommended

INSTALLATION

CAUTION! This product is designed to be

installed on solid concrete walls or drywall

with wood studs. Before installing, make sure

the wall will support the combined load of the

equipment.

CAUTION! Be careful not to scratch the monitor

screen during assembly.

ATTACHING TO WALL

CONCRETE WALL

1. Align wall plate in desired location. Place level on

top of the wall plate to ensure it is leveled correctly.

Mark where holes for screws are to be located.

(See Figure 1)

Figure 1

Concrete

Wall

Level

PARTS

Wall

Plate

M4 x 20 mm Bolt x 4M5 x 20 mm Bolt x 4

Spacer x 4

Washer x 3

Lag Screw x 3

M6 x 20 mm Bolt x 4

M8 x 20 mm Bolt x 4

Adapter x 4

Cable Management

Clip x 1

Monitor Plate x 1Wall Plate x 1

Square

Washer x 4

Plastic Anchor x 3

M6 Nut x 2M6 x 6 mm

Bolt x 8

A5B3

B4

A6

B1

A1

A3

B2

A2

A4

13 mm Socket
