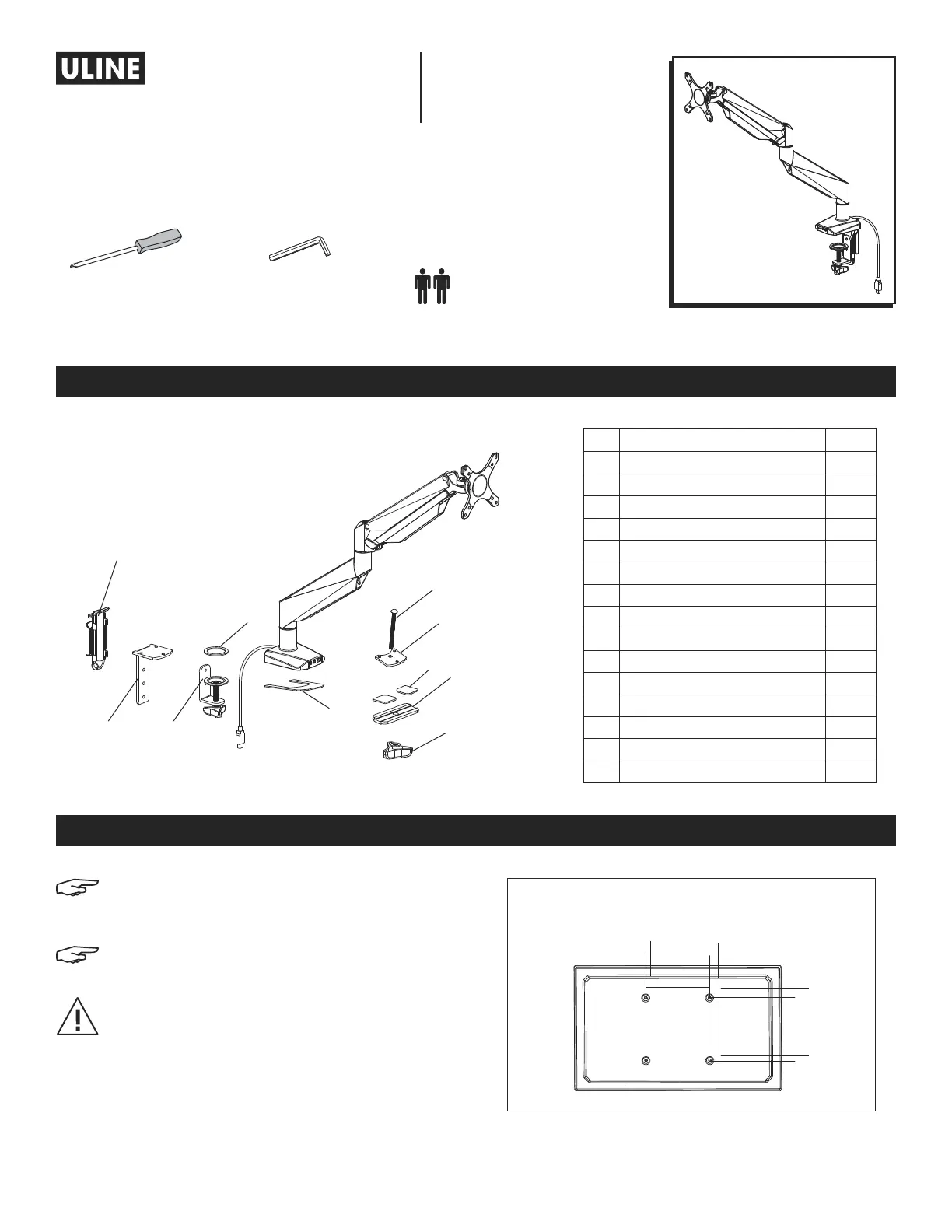

PAGE 1 OF 121023 IH-7620
1-800-295-5510
uline.com
SINGLE MONITOR MOUNT –
EASY-ADJUST
H-7620
NOTE: Make sure the monitor has a VESA hole
pattern of 75 x 75 mm or 100 x 100 mm.
(See Figure 1)
NOTE: If the monitor is attached to a fixed base,
remove monitor from base.
CAUTION! Be careful not to scratch the monitor
screen during installation.
PARTS
SETUP
#DESCRIPTIONQTY.
1Cable Clip1
2Clamp Mounting Bracket1
3Clamp1
4Anti-Slip Foam for Clamp1
5Anti-Slip Foam for Base1
6Grommet Bolt1
7Grommet Mounting Plate1
8Anti-Slip Foam for Bottom Support2
9Bottom Support1
10Knob1
AM4 x 12 mm Bolt (Not Shown)4
BM5 x 12 mm Bolt (Not Shown)4
CM6 x 12 mm Bolt (Not Shown)3
DM6 x 10 mm Bolt (Not Shown)2
EFlat Washer (Not Shown)8
TOOLS NEEDED
Phillips Screwdriver4 x 4 Allen Wrench (F)
5 x 5 Allen Wrench (G)
(included)
Figure 1
75 x 75 mm or
100 x 100 mm
75 x 75 mm or
100 x 100 mm
1
2
4
3
5
6
7
9
10
8
Two Person Assembly
Required
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
