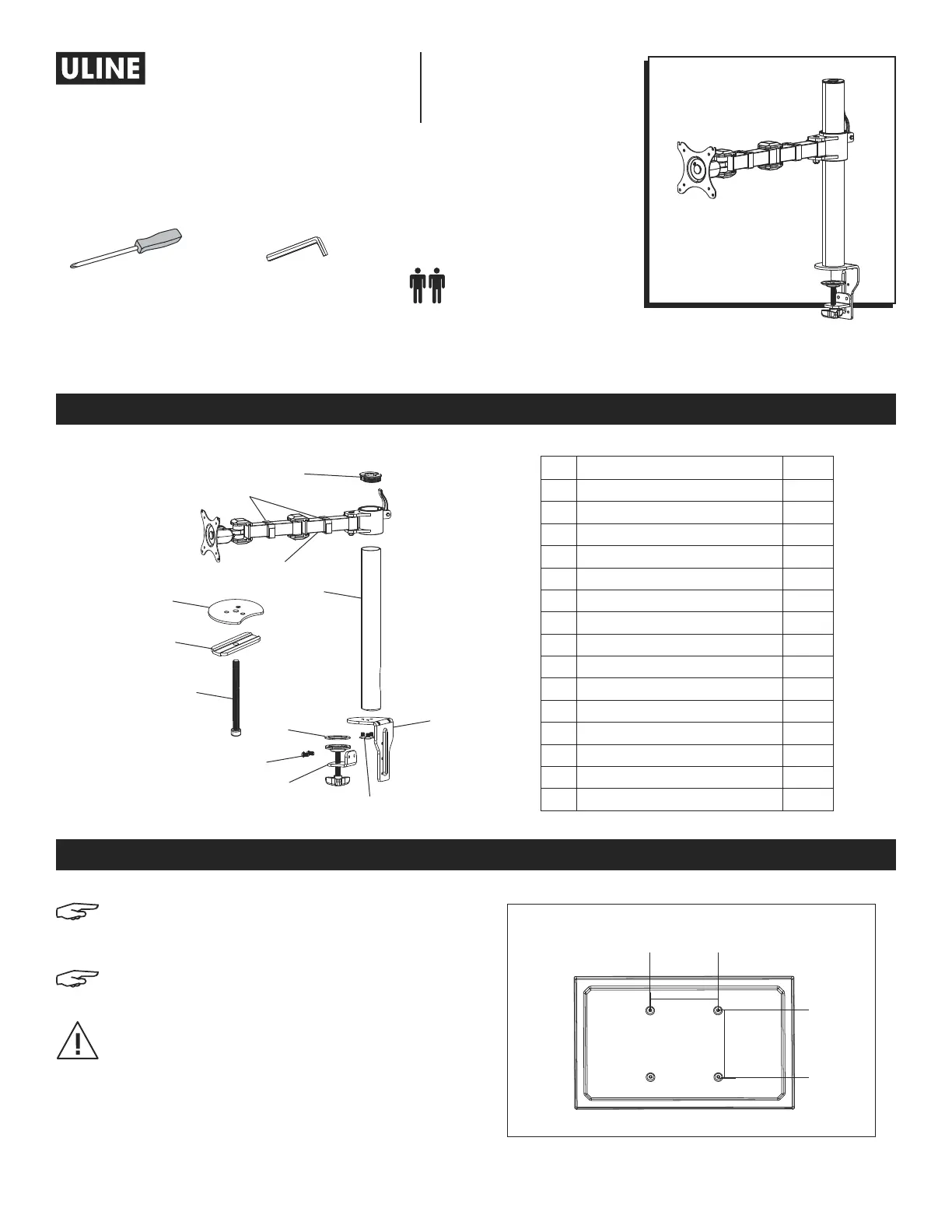

PAGE 1 OF 120521 IH-7618
1-800-295-5510
uline.com
SINGLE MONITOR MOUNT –
STANDARD
H-7618
NOTE: Make sure the monitor has a VESA hole
pattern of 75 x 75 mm or 100 x 100 mm.
(See Figure 1)
NOTE: If the monitor is attached to a fixed base,
remove monitor from base.
CAUTION! Be careful not to scratch the monitor
screen during installation.
PARTS
SETUP
#DESCRIPTIONQTY.
1Tube Cover2
2Cable Clip2
3Monitor Arm1
4Tube1
5Clamp Mounting Bracket1
6Anti-Slip Foam1
7Clamp1
8Grommet Mounting Plate1
9Bottom Support1
10Grommet Bolt1
AM4 x 12 mm Bolt (Not Shown)4
BM5 x 12 mm Bolt (Not Shown)4
CM6 x 20 mm Bolt3
DM6 x 10 mm Bolt2
EFlat Washer (Not Shown)8
TOOLS NEEDED
Phillips Screwdriver3 x 3 Allen Wrench
4 x 4 Allen Wrench (F)
5 x 5 Allen Wrench (G)
6 x 6 Allen Wrench
(all included)
Figure 1
75 x 75 mm or
100 x 100 mm
75 x 75 mm or
100 x 100 mm
1
2
3
4
5
6
8
9
10
C
D
7
Two Person Assembly
Required
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
