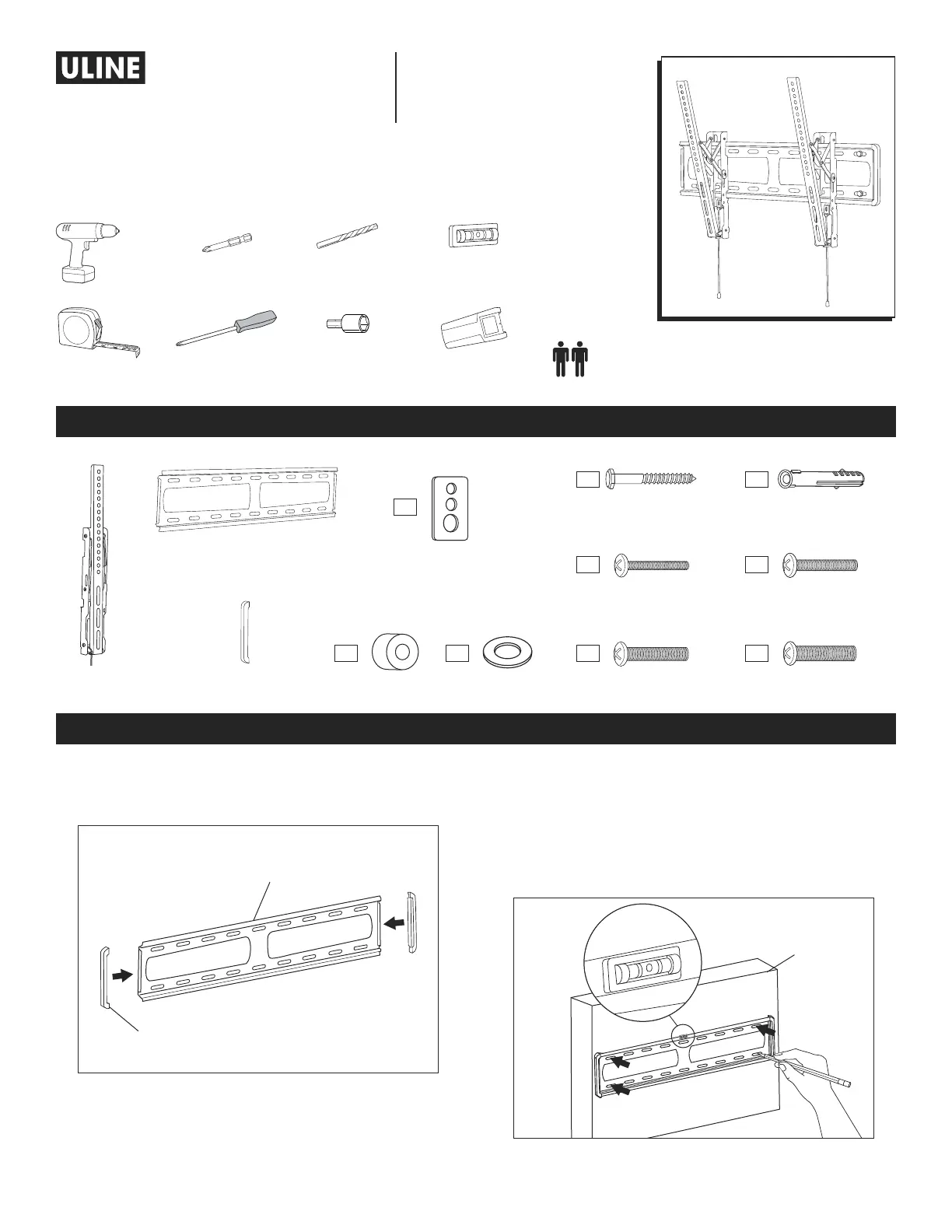

PAGE 1 OF 12 0922 IH-10160
H-10160
WALL MONITOR MOUNT –
32-80" TILTING
1-800-295-5510
uline.com
TOOLS NEEDED
Electric
Drill
3/16" Drill Bit
3/8" Drill Bit
Magnetic Level
(included)
13 mm
Socket
Stud Finder
Phillips
Screwdriver
Tape Measure
Phillips Head
Drill Bit
PARTS
Two-Person Assembly
Recommended
M4 x 25 mm Bolt x 4M5 x 25 mm Bolt x 4
Spacer x 4Washer x 4
Lag Screw x 4
M6 x 25 mm Bolt x 4M8 x 25 mm Bolt x 4
Wall Plate x 1
Plastic Cover x 2
Bracket x 2
Square Washer x 4
Plastic Anchor x 4
INSTALLATION
1. Attach plastic covers to both ends of the wall plate.
(See Figure 1)
Figure 1
ATTACHING TO CONCRETE WALL
1. Align wall plate in desired location. Place level on
top of wall plate to ensure it is leveled correctly.
Mark where holes for screws are to be located.
(See Figure 2)
Figure 2
Concrete
Wall
Wall Plate
Plastic Cover
Level
A6
A5B3A3A4
A1
A2
B1B2
