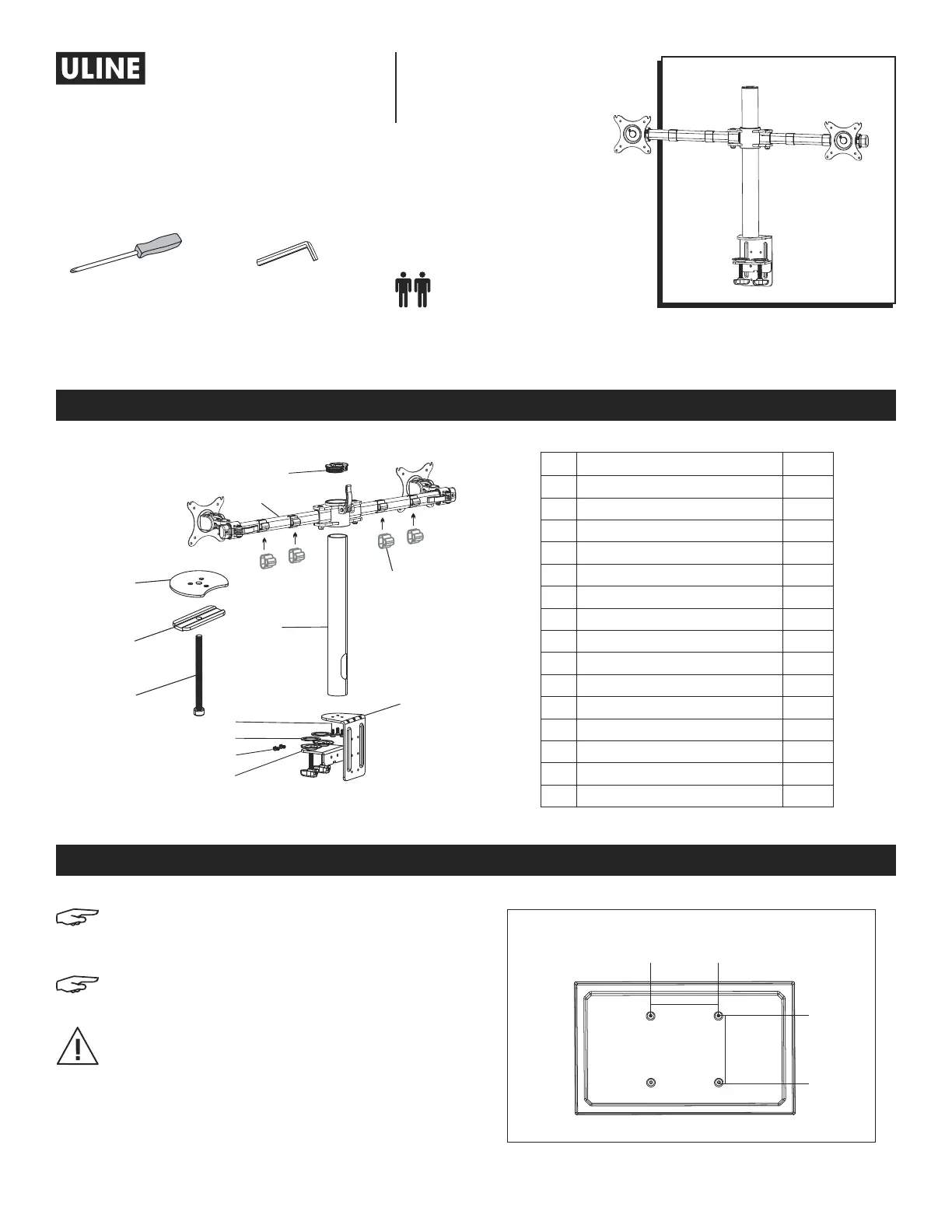

PAGE 1 OF 120521 IH-7619
1-800-295-5510
uline.com
H-7619
DUAL MONITOR MOUNT –
STANDARD
PARTS
#DESCRIPTIONQTY.
1Tube Cover2
2Monitor Arm1
3Cable Clip4
4Tube1
5Clamp Mounting Bracket1
6Anti-Slip Foam2
7Clamp1
8Grommet Mounting Plate1
9Bottom Support1
10Grommet Bolt1
AM4 x 12 mm Bolt (Not Shown)8
BM5 x 12 mm Bolt (Not Shown)8
CM6 x 20 mm Bolt3
DM6 x 10 mm Bolt2
EFlat Washer (Not Shown)16
TOOLS NEEDED
Phillips Screwdriver3 x 3 Allen Wrench
4 x 4 Allen Wrench (F)
5 x 5 Allen Wrench (G)
6 x 6 Allen Wrench
(all included)
Two Person Assembly
Required
8
9
2
4
C
5
6
D
7
10
1
3
NOTE: Make sure the monitors have a VESA hole
pattern of 75 x 75 mm or 100 x 100 mm.
(See Figure 1)
NOTE: If the monitors are attached to fixed
bases, remove monitors from bases.
CAUTION! Be careful not to scratch the monitor
screen during installation.
SETUP
Figure 1
75 x 75 mm or
100 x 100 mm
75 x 75 mm or
100 x 100 mm
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
